ROOF RAIL REMOVAL/INSTALLATION
id091600806200
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (9) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (12) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (13) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (14) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (15) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
- (16) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (17) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (18) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (19) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (20) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

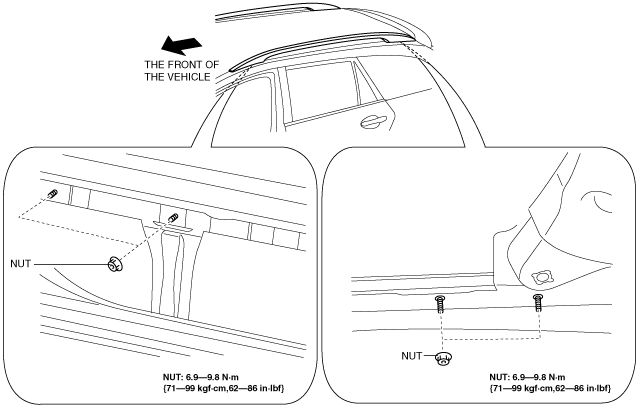

3. Remove the nuts.

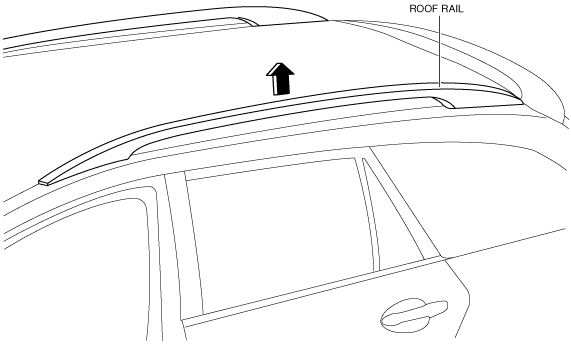

4. Pull up the roof rail in the indication of the arrow.
5. Remove the roof rail.
6. Install in the reverse order of removal.
