i-stop CONTROL

id111100000100


i-stop Control Outline


SKYACTIV-G 2.0, SKYACTIV-G 2.5

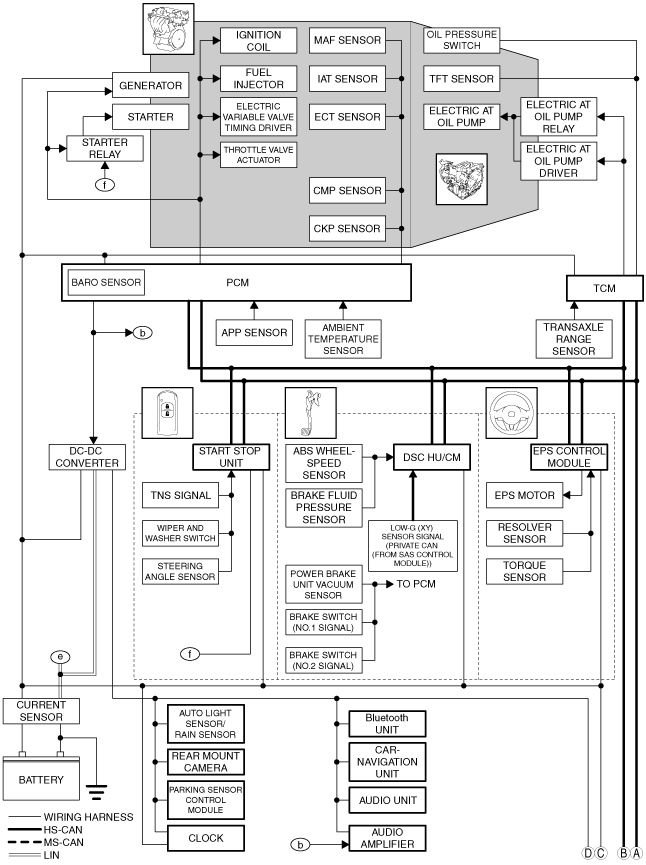

Without i-ELOOP (ATX)

am6zzn00002654
am6zzn00002655

Without i-ELOOP (MTX)

am6zzn00002656
am6zzn00002655

With i-ELOOP (ATX)

am6zzn00002657
am6zzn00002655

With i-ELOOP (MTX)

am6zzn00002658
am6zzn00002655


SKYACTIV-D 2.2

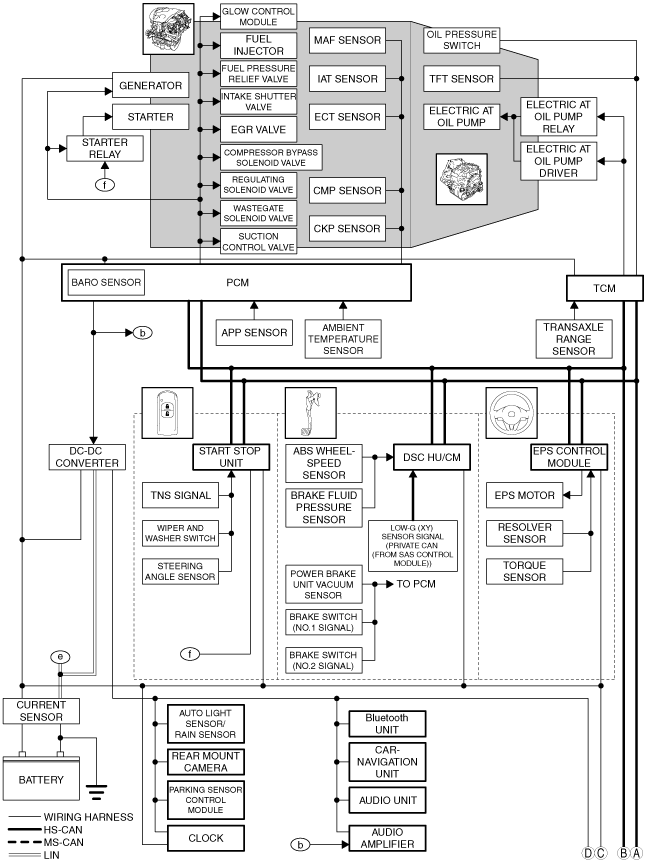

Without i-ELOOP (ATX)

am6zzn00002659
am6zzn00002655

Without i-ELOOP (MTX)

am6zzn00002660
am6zzn00002655

With i-ELOOP (ATX)

am6zzn00002661
am6zzn00002655

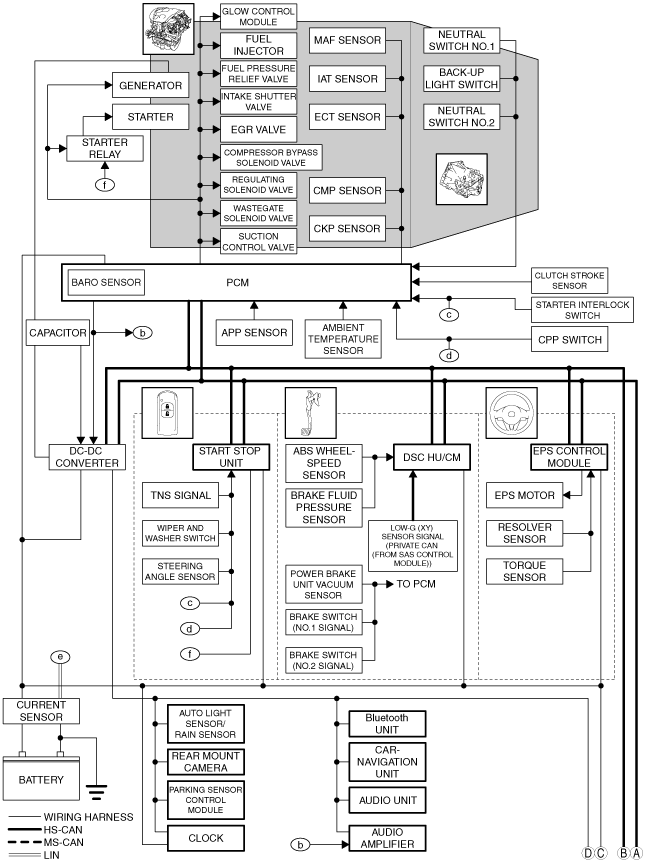

With i-ELOOP (MTX)

am6zzn00002662
am6zzn00002655


i-stop Control modules

•  i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference
PCM
SKYACTIV-G 2.0, SKYACTIV-G 2.5
(See i-stop CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
SKYACTIV-D 2.2
(See i-stop CONTROL [SKYACTIV-D 2.2].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
DSC HU/CM
(See HILL LAUNCH ASSIST (HLA).)
TCM (ATX)
(See ELECTRIC AT OIL PUMP [FW6A-EL].)
(See ELECTRIC AT OIL PUMP [GW6A-EL].)
START STOP UNIT
(See START STOP UNIT.)
EPS CONTROL MODULE
(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
CLIMATE CONTROL UNIT
(See AIR CONDITIONER i-stop CONTROL [FULL-AUTO AIR CONDITIONER].)
(See AIR CONDITIONER i-stop CONTROL [MANUAL AIR CONDITIONER].)
SAS CONTROL MODULE
(See SAS CONTROL MODULE.)
INSUTRMENT CLUSTER
(See i-stop INDICATOR ALARM.)
(See i-stop WARNING ALARM.)
(See i-stop GUIDANCE DISPLAY.)
(See i-stop EFFECT DISPLAY.)
FRONT BODY CONTROL MODULE (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM).)
REAR BODY CONTROL MODULE (RBCM)
(See REAR BODY CONTROL MODULE (RBCM).)
