FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400


Type A

1.  Remove the following parts:

(1)  Front fog light (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)
(2)  Signature wing illumination short cord (with signature wing illumination) (See SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION.)
(3)  Headlight cleaner cover (with headlight cleaner system) (See HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION.)
(4)  Headlight cleaner actuator (with headlight cleaner system) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)
(5)  Headlight cleaner hose (with headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
(6)  Front ultrasonic sensor short-cord (with parking sensor system) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
(7)  Front ultrasonic sensor (with parking sensor system) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

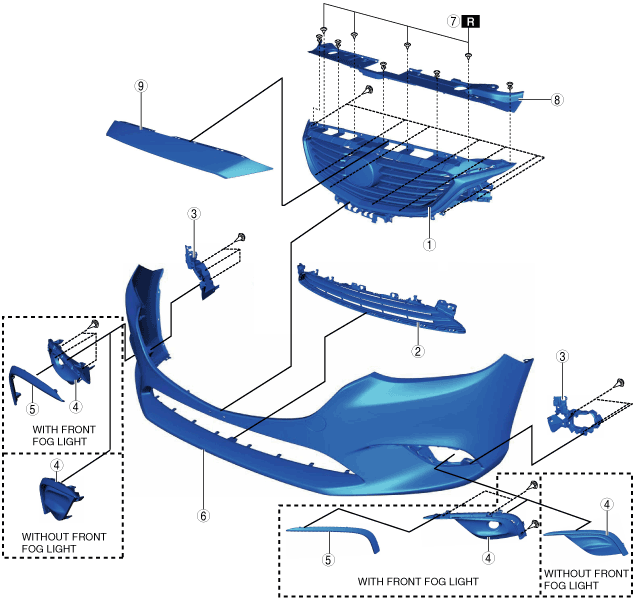

am6xuw00007847

1
Radiator grille
(See RADIATOR GRILLE REMOVAL/INSTALLATION.)
2
Bumper mesh
3
Front fog light bracket
4
Front fog light cover (with front fog light)
Hole cover (without front fog lights)
5
Front fog light cover garnish (with front fog light)
6
Front bumper face
7
Rivet
(See Rivet Removal Note.)
8
Grille bracket
9
Front bumper upper face

3.  Assemble in the reverse order of disassembly.


Type B

1.  Remove the following parts:

(1)  Front fog light (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)
(2)  Headlight cleaner cover (with headlight cleaner system) (See HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION.)
(3)  Headlight cleaner actuator (with headlight cleaner system) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)
(4)  Headlight cleaner hose (with headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
(5)  Front ultrasonic sensor short-cord (with parking sensor system) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
(6)  Front ultrasonic sensor (with parking sensor system) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

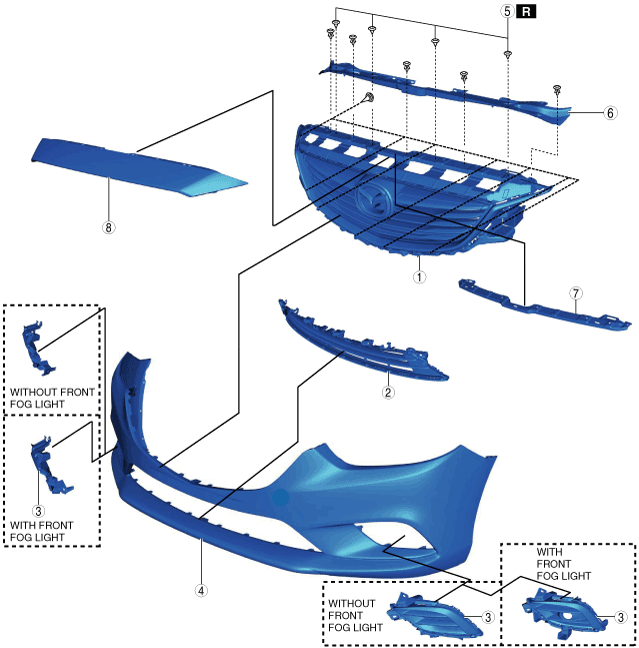

am6zzw00013462

1
Radiator grille
(See RADIATOR GRILLE REMOVAL/INSTALLATION.)
2
Bumper mesh
3
Front fog light cover (with front fog light)
Hole cover (without front fog lights)
4
Front bumper face
5
Rivet
(See Rivet Removal Note.)
6
Grille bracket
7
Front bumper retainer
8
Front bumper upper face

3.  Assemble in the reverse order of disassembly.


Rivet Removal Note

1.  When removing the rivet, perform the following procedure:

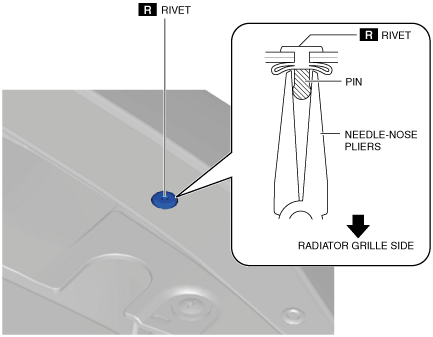

(1)  Secure the rivet pin from the radiator grille side using needle-nose pliers.
am2zzw00008731
(2)  Use the following drill diameter.
Drill diameter:
4.5 mm {0.18 in}
Caution
•  If an inappropriate drill diameter is used, the front bumper face and the radiator grille may be damaged.

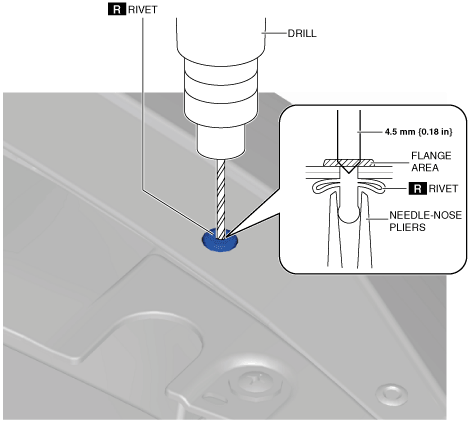

(3)  Remove the rivet flange using a drill and remove the rivet.
adejjw00010507
(4)  Remove any rivet shavings from the front bumper face and the radiator grille.
