SECURITY AND LOCKS LOCATION INDEX

id091400510000

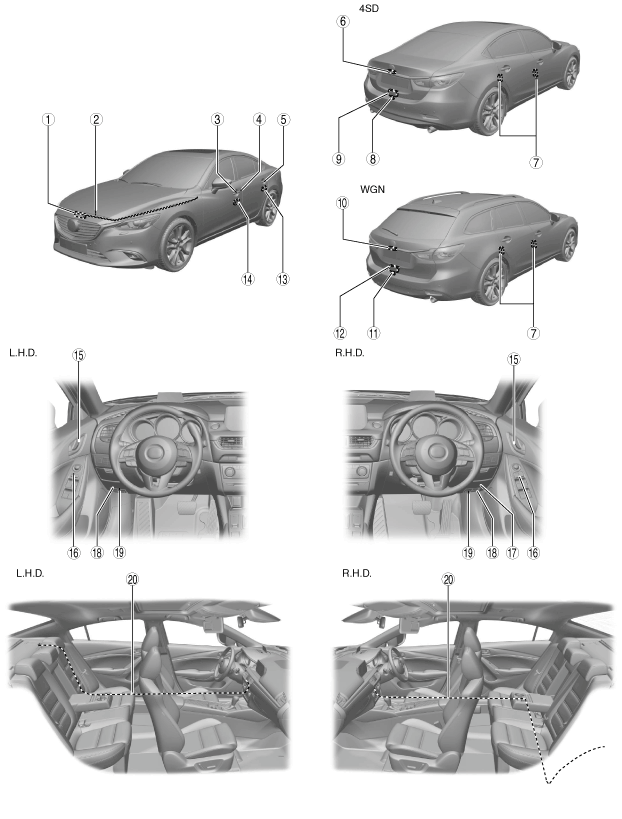

Locks and Openers

am6zzw00013649

1
Bonnet latch
(See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
2
Bonnet release cable
(See BONNET RELEASE CABLE REMOVAL/INSTALLATION.)
3
Front outer handle
(See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
4
Front door key cylinder
(See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
(See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)
5
Rear outer handle
(See REAR OUTER HANDLE REMOVAL/INSTALLATION.)
6
Trunk lid opener switch
(See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)
(See TRUNK LID OPENER SWITCH INSPECTION.)
7
Door lock striker
(See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)
8
Trunk lid striker
(See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION.)
9
Trunk lid latch and release actuator
(See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)
(See TRUNK LID LATCH AND RELEASE ACTUATOR INSPECTION.)
(See TRUNK LID RELEASE ACTUATOR INSPECTION.)
(See TRUNK LID LATCH SWITCH INSPECTION.)
10
Liftgate opener switch
(See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
(See LIFTGATE OPENER SWITCH INSPECTION.)
11
Liftgate lock striker
(See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)
12
Liftgate latch and lock actuator
(See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.)
(See LIFTGATE LOCK ACTUATOR INSPECTION.)
(See LIFTGATE LATCH SWITCH INSPECTION.)
13
Rear door latch and lock actuator
(See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LATCH SWITCH INSPECTION.)
(See DOOR LOCK-LINK SWITCH INSPECTION.)
14
Front door latch and lock actuator
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See FRONT DOOR LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LATCH SWITCH INSPECTION.)
(See DOOR LOCK-LINK SWITCH INSPECTION.)
15
Inner handle
(See INNER HANDLE REMOVAL/INSTALLATION.)
16
Door lock switch (With door lock switch)
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)
(See DOOR LOCK SWITCH INSPECTION.)
17
Trunk lid opener switch (interior)
(See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)
(See TRUNK LID OPENER SWITCH INSPECTION.)
18
Fuel-filler lid opener lever
(See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
19
Bonnet release lever
(See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
20
Fuel-filler lid opener cable
(See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION.)

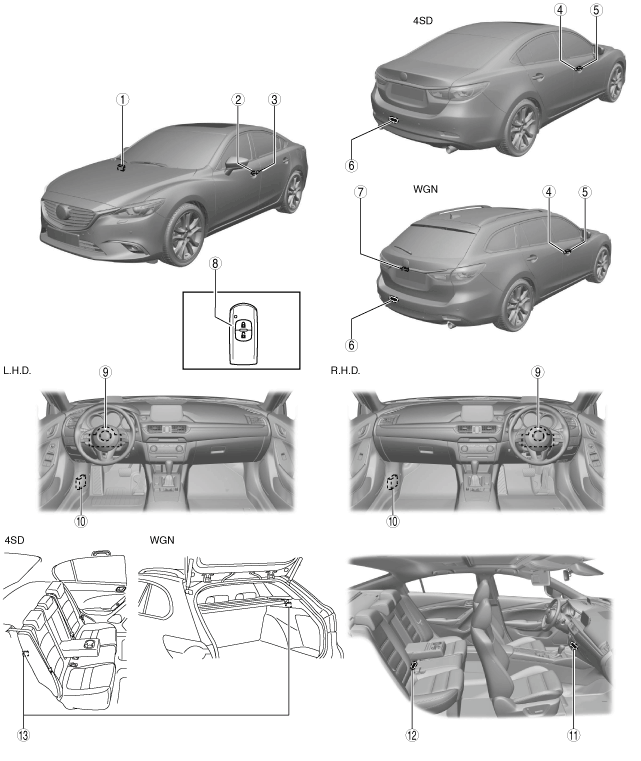

Advanced Keyless Entry System / Push Button Start System / Immobilizer System

am6zzw00013650

1
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(See KEYLESS BEEPER INSPECTION.)
2
Keyless antenna (exterior, LF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
3
Request switch (LF)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
4
Request switch (RF)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
5
Keyless antenna (exterior, RF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
6
Keyless antenna (exterior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
7
Request switch (liftgate)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
8
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
9
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
10
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION.)
(See LF CONTROL UNIT INSPECTION.)
11
Keyless antenna (interior, front)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
12
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
13
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)

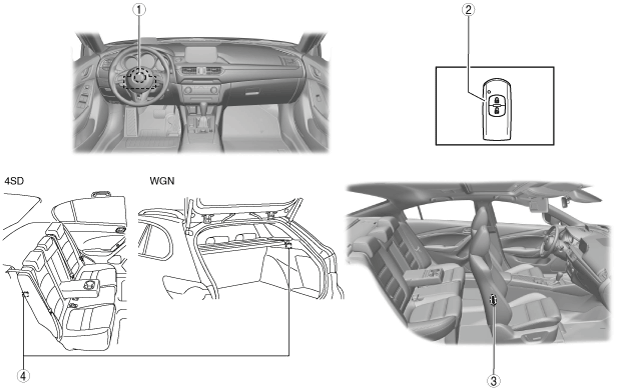

Keyless entry system / Push Button Start System / immobilizer system

am6zzw00013651

1
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
2
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
3
Keyless antenna (center)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
4
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)


Theft-deterrent System

With intruder sensor

am6zzw00013652

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Intruder sensor
(See INTRUDER SENSOR REMOVAL/INSTALLATION.)
(See INTRUDER SENSOR INSPECTION.)
3
Theft-deterrent siren
(See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT SIREN INSPECTION.)

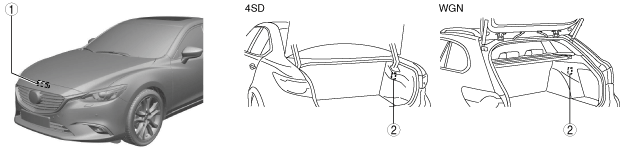

Without intruder sensor

am6zzw00013653

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Theft-deterrent horn
(See THEFT-DETERRENT HORN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT HORN INSPECTION.)
