TIMING CHAIN REMOVAL/INSTALLATION [L8, LF, L5]
id0110a6801000
1. Disconnect the negative battery cable.
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)
3. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [L8, LF, L5].)
4. Remove the ventilation hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L5].)
5. Disconnect the camshaft position (CMP) sensor connector.
6. Disconnect the oil control valve (OCV) connector. (With variable valve timing mechanism.)
7. Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)
8. Set the front mudguard (RH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)
9. Remove the splash shield (RH).
10. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)
11. Loosen the water pump pulley bolts and remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [L8, LF, L5].)
12. Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L8, LF, L5].)
13. Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)
14. Remove in the order indicated in the table.
15. Install in the reverse order of removal.
16. Start the engine. And inspect and adjust the following:
am6zzw00017935
|
|
1
|
Spark plug
|
|
2
|
Dipstick
|
|
3
|
Cylinder head cover
|
|
4
|
Crankshaft pulley lock bolt
|
|
5
|
Crankshaft pulley
|
|
6
|
Water pump pulley
|
|
7
|
Drive belt idler pulley
|
|
8
|
Drive belt idler pulley
|
|
9
|
No.3 engine mount
|
|
10
|
Engine front cover
|
|
11
|
Front oil seal
(See Front Oil Seal Removal Note.)
|
|
12
|
Chain tensioner
(See Chain Tensioner Removal Note.)
|
|
13
|
Tensioner arm
|
|
14
|
Chain guide
|
|
15
|
Timing chain
|
|
16
|
Oil pump chain tensioner
|
|
17
|
Oil pump sprocket
|
|
18
|
Oil pump chain
|
|
19
|
Crankshaft sprocket
|
Cylinder Head Cover Removal Note
1. Loosen the cylinder head cover bolts in the order shown in the figure.
am6zzw00012540
|
Crankshaft Pulley Lock Bolt Removal Note
1. Rotate the crankshaft in the direction of the engine rotation and remove the cylinder block lower blind plug when the No. 1 cylinder is at the point prior to top dead center (TDC) of compression, then install the SST.
am6zzw00012541
|
2. Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the counterweight contacts SST and stops.)
3. Hold the crankshaft pulley by using the SSTs.
am6zzw00012542
|
No.3 Engine Mount Removal Note
Oil pan is removed
1. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L5].)

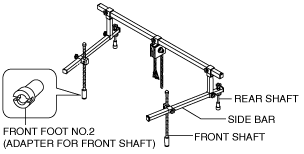

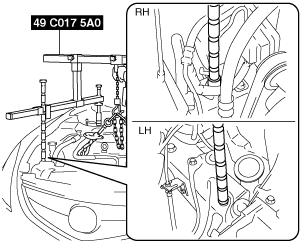

2. Install the SST using the following procedure.
am6zzw00012543
|
am6zzw00000925
|
am6zzw00012544
|
3. Support the engine using the SST.
am6zzw00012545
|
Oil pan is not removed
1. Support the engine (oil pan) using a commercially available engine lifter.
acxaaw00001645
|
Front Oil Seal Removal Note
1. Remove the oil seal using a screwdriver as shown.
am6zzw00012546
|
Chain Tensioner Removal Note
1. Using a thin screwdriver, hold the chain tensioner ratchet lock mechanism away from the ratchet stem.
2. Slowly compress the tensioner piston.
3. Hold the tensioner piston using a 1.5 mm {0.059 in} wire or paper clip.
am6zzw00012547
|
Oil Pump Sprocket Removal/Installation Note
1. Temporarily install the crankshaft pulley and crankshaft pulley lock bolt to the crankshaft, and lock the oil pump against rotation as shown in figure.
am6zzw00012548
|
2. Remove/install the oil pump sprocket, and then remove the crankshaft pulley and crankshaft pulley lock bolt.
Timing Chain Installation Note
1. Install the SST to the camshaft as shown.
am6zzw00002676
|
2. Install the timing chain.
3. Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.
Front Oil Seal Installation Note
1. Apply clean engine oil to the oil seal.
2. Push the oil seal slightly in by hand.
3. Compress the oil seal using the SST and a hammer.
am6zzw00012549
|
am6zzw00012550
|
Engine Front Cover Installation Note
1. Apply silicone sealant to the engine front cover as shown.
L8, LF
am6zzw00004488
|
L5
am6zzw00012551
|

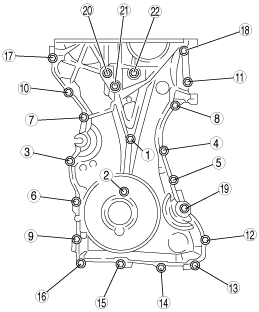

2. Install the engine front cover bolts in the order as shown.
am6zzw00012552
|
|
No. |
Tightening torque |
|---|---|
|
1―18
|
8—11 N·m {82—117 kgf·cm, 71—101 in·lbf}
|
|
19―22
|
40—55 N·m {4.1—5.6 kgf·m, 30—40 ft·lbf}
|
No.3 Engine Mount Installation Note
1. Tighten the No.3 engine mount stud bolts.
am6zzw00012553
|
2. Install the No.3 engine mount rubber hand-tighten.
3. Tighten the No.3 engine mount bracket is attached and bolts, nuts in the order as shown.
am6zzw00012554
|
|
No. |
Tightening torque |
|---|---|
|
1―3
|
71—93 N·m {7.3—9.4 kgf·m, 53—68 ft·lbf}
|
|
4―6
|
75—104 N·m {7.6—10 kgf·m, 55—77 ft·lbf}
|
Crankshaft Pulley Lock Bolt Installation Note
1. Install the SST to the camshaft as shown.
am6zzw00002676
|
2. Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)
3. To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.
am6zzw00012555
|
4. Hold the crankshaft pulley using the SSTs.
am6zzw00012542
|
5. Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49 D032 316).
6. Remove the bolt (M6 X 1.0) installed to the crankshaft pulley.
7. Remove the SST from the camshaft.
8. Remove the SST from the cylinder block lower blind plug hole.
9. Rotate the crankshaft clockwise two turns and inspect the valve timing.
10. Install the cylinder block lower blind plug.
am6zzw00012556
|
Cylinder Head Cover Installation Note
1. Apply silicone sealant to the mating faces as shown.
am6zzw00012557
|
2. Install the cylinder head cover with a new gasket.
3. Tighten the bolts in the order shown.
am6zzw00012558
|
