ENGINE DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)]

id0110f1800500

1.  Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION.)

2.  Disconnect the engine and transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [A26M-R (MZR-CD (RF Turbo))].)

3.  Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

4.  Remove the EGR component. (See EGR VALVE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See EGR COOLER REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

5.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

6.  Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

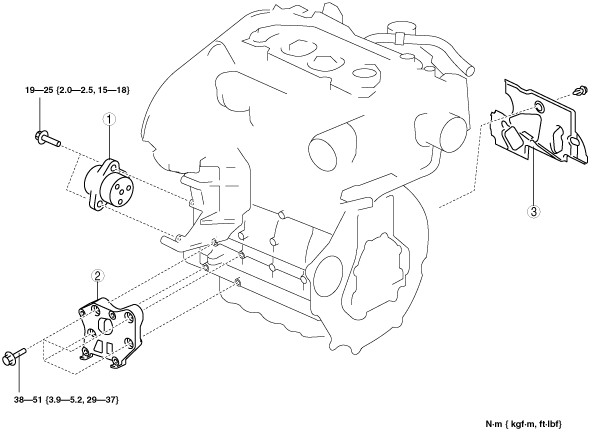

7.  Disassemble in the order indicated in the table.

8.  Assemble in the reverse order of disassembly.

am6zzw00003109

1	Drive belt auto tensioner
2	A/C compressor bracket (See A/C Compressor Bracket Installation Note.)
3	Seal plate

A/C Compressor Bracket Installation Note

1.  Tighten the A/C compressor bracket bolts in the order shown.

am5ezw00001490
