JOINT SHAFT REMOVAL/INSTALLATION

id031300800900

Caution

•  Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor wiring harness will not be pulled by mistake while servicing the vehicle.

1.  Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

2.  Set the front mudguard out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the splash shield.

4.  Drain the transaxle oil or ATF. (See TRANSAXLE OIL REPLACEMENT [G35M-R].) (See TRANSAXLE OIL REPLACEMENT [G66M-R].) (SeeTRANSAXLE OIL REPLACEMENT [A26M-R].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL].)

5.  Disconnect the front auto leveling sensor link. (Vehicle with discharge headlight system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

am6zzw00004450

1	Tie-rod end ball joint (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
2	Nut (front stabilizer control link lower side)
3	Nut (lower arm) (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION.) (See Nut (lower arm) Installation Note.)
4	Damper fork (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
5	Vacuum chamber (MZR-CD 2.2) (See Vacuum Chamber Removal Note.)
6	Joint shaft (See Joint Shaft Removal Note.)
7	Clip (See Clip Installation Note.)

Vacuum Chamber Removal Note

1.  Remove the vacuum chamber bracket installation nut and bolts and set the vacuum chamber aside so that it is out of the way.

Joint Shaft Removal Note

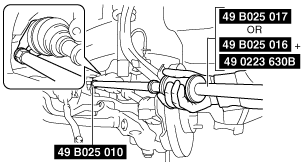

1.  Disconnect the drive shaft (RH) from the joint shaft by using the SSTs.

am6zzw00004451

2.  Disconnect the joint shaft bracket from the cylinder block and remove the joint shaft.

Caution

•  The sharp edges of the joint shaft can slice or puncture the oil seal. Be careful when removing the joint shaft from the transaxle.

3.  Install the SST to the transaxle after the joint shaft is removed.

am6zzw00009564

Clip Installation Note

1.  Install a new joint shaft clip to the clip groove at the end of the joint shaft with the clip opening facing upward and the clip width within the specification.

2.  After installation, measure the outer diameter.

•  If it exceeds the specification, repeat installation using a new clip.

am3zzw00004379

Nut (lower arm) Installation Note

Caution

•  The tightening torque of the nut (lower arm) differs depending on whether thread-locking compound is applied to the stud bolt or not. Verify if thread-locking compound is applied to the stud bolt or not, and tighten the nut (lower arm) using the specified tightening torque.

1.  Visually verify the stud bolt of the knuckle and identify if thread-locking compound is applied to the stud bolt or not.

am6zzw00004809

2.  Tighten the nut (lower arm).
