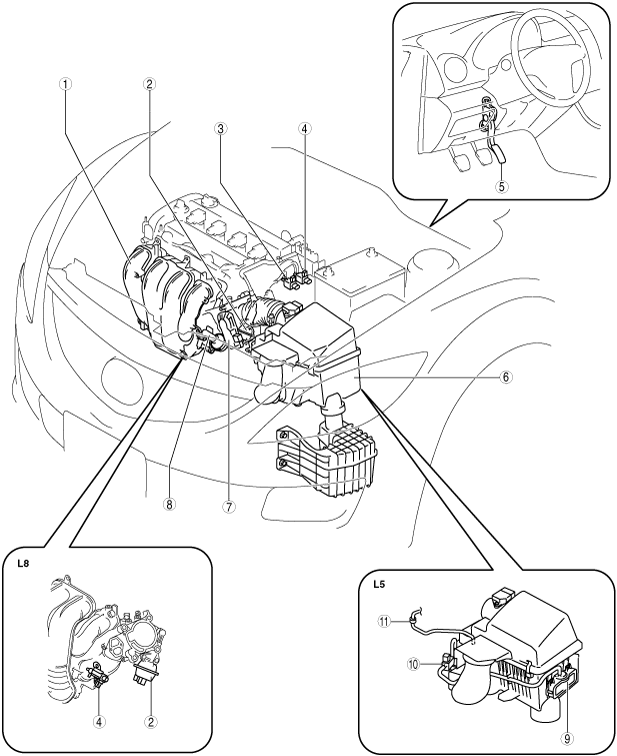

INTAKE-AIR SYSTEM LOCATION INDEX [L8, LF, L5]

id0113a0800100

am6zzw00002228

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L5].)
2	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [L8, LF, L5].)
3	Variable intake air solenoid valve (LF, L5) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [LF, L5].)
4	Variable tumble solenoid valve (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION [L8, LF, L5].)
5	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [L8, LF, L5].)
6	Air cleaner (See AIR CLEANER ELEMENT INSPECTION [L8, LF, L5].)
7	Throttle body (See THROTTLE BODY INSPECTION [L8, LF, L5].)
8	Variable intake air shutter valve actuator (LF, L5) (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [LF, L5].)
9	VAD shutter valve (L5) (See VARIABLE AIR DUCT (VAD) SHUTTER VALVE INSPECTION [L5].)
10	VAD solenoid valve (L5) (See VARIABLE AIR DUCT (VAD) SOLENOID VALVE INSPECTION [L5].)
11	VAD check valve (L5) (See VARIABLE AIR DUCT (VAD) SOLENOID VALVE INSPECTION [L5].)
