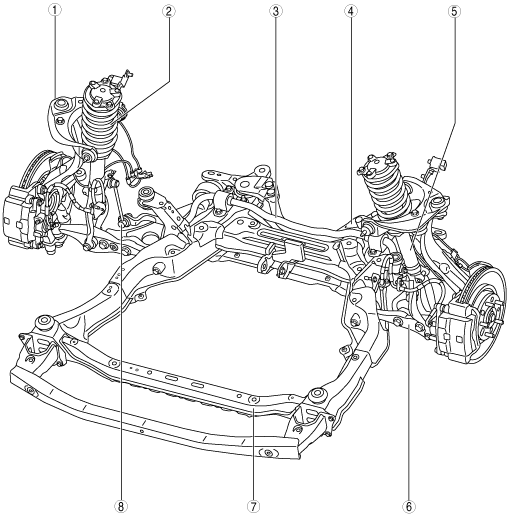

FRONT SUSPENSION LOCATION INDEX

id021300800100

am6zzw00002293

1	Front upper arm (See FRONT UPPER ARM REMOVAL/INSTALLATION.) (See FRONT UPPER ARM INSPECTION.)
2	Front shock absorber and coil spring (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.) (See FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY.)
3	Front stabilizer (See FRONT STABILIZER CONTROL LINK INSPECTION.)
4	Transverse member (See TRANSVERSE MEMBER REMOVAL/INSTALLATION.)
5	Front shock absorber (See FRONT SHOCK ABSORBER INSPECTION.) (SeeFRONT SHOCK ABSORBER DISPOSAL.)
6	Front lower arm (See FRONT LOWER ARM REMOVAL/INSTALLATION.) (See FRONT LOWER ARM INSPECTION.)
7	Front crossmember (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
8	Stabilizer control link (See FRONT STABILIZER CONTROL LINK INSPECTION.)
