DTC C0062:86/C0063:86 [DYNAMIC STABILITY CONTROL (DSC)]

id0402b2881200

DTC
C0062:86, C0063:86

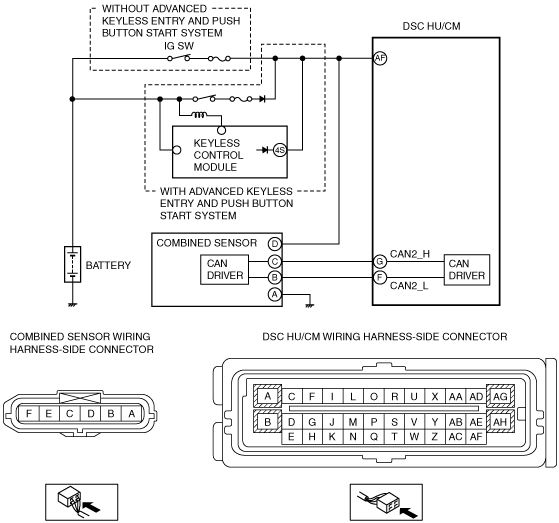

Combined sensor (internal malfunction)
DETECTION CONDITION
•  C0062:86
―  Combined sensor ((lateral-G part)) internal malfunction is detected.
•  C0063:86
―  Combined sensor (yaw rate part) internal malfunction is detected.
POSSIBLE CAUSE
•  Combined sensor internal malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY COMBINED SENSOR MALFUNCTION
•  Clear the DTCs from the memory.
•  Start the engine and drive the vehicle at 3 km/h {2 mph} or more.
•  Are the same DTCs present?
Yes
Replace the combined sensor, then go to the next step.
(See COMBINED SENSOR REMOVAL/INSTALLATION.)
No
Go to the next step.
2
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Clear the DTCs from the memory.
•  Start the engine and drive the vehicle at 3 km/h {2 mph} or more.
•  Are the same DTCs present?
Yes
Repeat the inspection from Step 1.
If the malfunction recurs, replace the DSC HU/CM, then go to the next step.
(See DSC HU/CM REMOVAL/INSTALLATION.)
No
Go to the next step.
3
VERIFY THAT NO OTHER DTCS ARE PRESENT
•  Are any other DTCs output?
Yes
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)
No
DTC troubleshooting completed.
