DTC U0123:00/U0124:00 [DYNAMIC STABILITY CONTROL (DSC)]

id0402b2881600

DTC

U0123:00, U0124:00

Combined sensor system (CAN2 line malfunction)

DETECTION CONDITION

•  U0123:00

―  The signal from the combined sensor (yaw rate part) is not within specification.

•  U0124:00

―  The signal from the combined sensor (G part) is not within specification.

POSSIBLE CAUSE

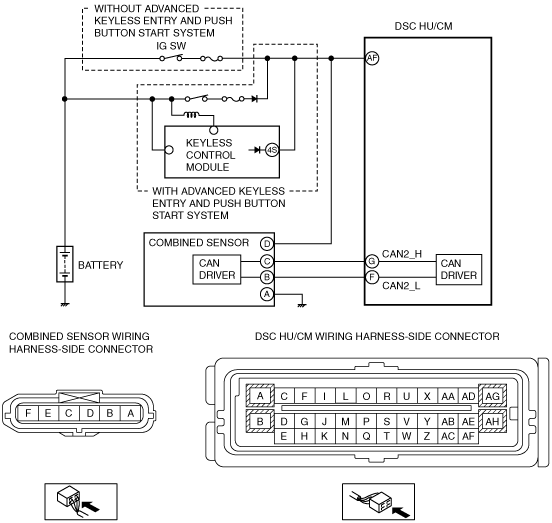

•  Open or short circuit in the CAN2_H wiring harness between combined sensor terminal C and DSC HU/CM terminal G

•  Open or short circuit in the CAN2_L wiring harness between combined sensor terminal B and DSC HU/CM terminal F

•  Combined sensor malfunction

•  DSC HU/CM malfunction

•  Poor connection at connectors (female terminal)

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT COMBINED SENSOR SIGNAL (CAN2 LINE) FOR OPEN CIRCUIT • Disconnect the DSC HU/CM connectors. • Disconnect the combined sensor connectors. • Inspect for continuity between the DSC HU/CM connectors (vehicle harness-side) and the following combined sensor connector terminals (vehicle harness-side): ― Combined sensor (CAN2_L): F—B ― Combined sensor (CAN2_H): G—C • Is there continuity?	Yes	Go to the next step.
1		No	Repair or replace the wiring harness, then go to Step 4.
2	INSPECT COMBINED SENSOR SIGNAL (CAN2 LINE) FOR SHORT CIRCUIT • Inspect for continuity between the following DSC HU/CM connector terminals (vehicle harness-side) and body ground: ― Combined sensor (CAN2_L): F ― Combined sensor (CAN2_H): G • Is there continuity?	Yes	Repair or replace the wiring harness, then go to Step 4.
2		No	Go to the next step.
3	INSPECT THE COMBINED SENSOR • Reconnect all disconnected connectors. Inspect the combined sensor. (See COMBINED SENSOR INSPECTION.) • Is the combined sensor normal?	Yes	Go to the next step.
3		No	Replace the combined sensor, then go to the next step. (See COMBINED SENSOR REMOVAL/INSTALLATION.)
4	VERIFY THAT THE SAME DTC IS NOT PRESENT • Clear the DTCs from the memory. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].) • Are the same DTCs present?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the DSC HU/CM, then go to the next step. (See DSC HU/CM REMOVAL/INSTALLATION.)
4		No	Go to the next step.
5	VERIFY THAT NO OTHER DTCS ARE PRESENT • Are any other DTCs output?	Yes	Go to the applicable DTC inspection. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)
5		No	DTC troubleshooting completed.
