THEFT-DETERRENT SIREN AND TILT SENSOR INSPECTION

id091400822600

Note

• The tilt sensor are built into the theft-deterrent siren.

4SD

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3. Measure the tilt sensor terminal voltage using the short wiring harness connector in the position shown in the figure.

am6zzw00002829

5HB

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2) Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4) Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3. Measure the tilt sensor terminal voltage using the short wiring harness connector in the position shown in the figure.

am6zzw00002830

WGN

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2) Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4) Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3. Measure the tilt sensor terminal voltage using the short wiring harness connector in the position shown in the figure.

am6zzw00004564

Note

• The tilt sensor cannot be connected to a tester due to its water-resistance processing, therefore the short wiring harness connector is used for measuring the terminal voltage.

• If the terminal voltage is not as indicated in the table, inspect the short wiring harness connector for continuity. (See 5HB.)If the short wiring harness connecter is normal, inspect the parts under “Inspection items”.

― If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the tilt sensor (theft-deterrent siren).

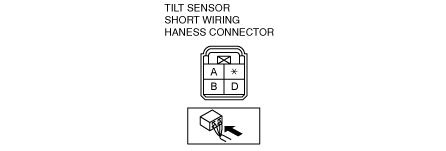

Terminal Voltage Table (Reference)

am6zzw00001712

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A

Power supply

BCM

Under any condition

B+

• ROOM 15 A fuse

• BCM

B

DATA

BCM

Terminal used for communication therefore determination based on terminal voltage inspection not possible.

D

Ground

Body ground

Under any condition

1.0 or less

Ground

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item (s)
A	Power supply	BCM	Under any condition	B+	• ROOM 15 A fuse • BCM
B	DATA	BCM	Terminal used for communication therefore determination based on terminal voltage inspection not possible.
D	Ground	Body ground	Under any condition	1.0 or less	Ground

Continuity Inspection Of Short Wiring Harness Connector

1. Verify that the continuity between the short wiring harness connector terminals is as indicated in the table.

• If the continuity is not as indicated in the table, replace the short wiring harness connector.

am6zzw00001713
