NOISE FILTER INSPECTION

id092000806500

Brake Light Noise Filter

1.  Disconnect the negative battery cable.

2.  Remove the brake light noise filter. (See NOISE FILTER REMOVAL/INSTALLATION.)

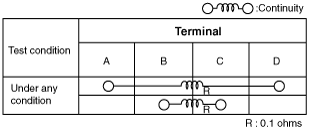

3.  Verify the resistance and continuity between the brake light noise filter terminals.

am6zzw00004673

•  If the resistance is not as indicated in the table, replace the brake light noise filter.

am6zzw00004674

Rear Window Defroster Noise Filter

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD])

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

(6)  Rear window defroster noise filter (See NOISE FILTER REMOVAL/INSTALLATION.)

3.  Verify the resistance and continuity between the rear window defroster noise filter terminals.

am6zzw00001511

•  If the resistance is not as indicated in the table, replace the rear window defroster noise filter.

am6zzw00003537

5HB

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Rear window defroster noise filter (See NOISE FILTER REMOVAL/INSTALLATION.)

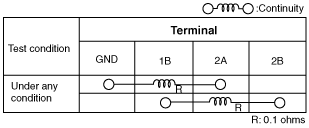

3.  Verify the resistance and continuity between the rear window defroster noise filter terminals.

am6zzw00001511

•  If the resistance is not as indicated in the table, replace the rear window defroster noise filter.

am6zzw00003537
