ANTENNA AMPLIFIER REMOVAL/INSTALLATION

id092000813300

5HB

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

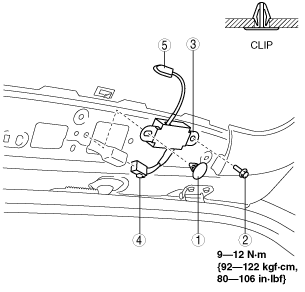

3.  Remove in the order indicated in the table.

am6zzw00001649

1	Clip
2	Bolt
3	Antenna amplifier
4	Connector A
5	Connector B (See Connector B Removal Note.)

4.  Install in the reverse order of removal.

Connector B Removal Note

1.  Remove the connector B in the direction of the arrow (2) shown in the figure while pressing the glass antenna terminal in the direction of the arrow (1).

am6zzw00001722

WGN

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(4)  D-pillar trim (RH) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am6zzw00003203

1	Antenna feeder No.2
2	Antenna feeder No.3
3	Bolt
4	Antenna amplifier

4.  Install in the reverse order of removal.
