OIL NOZZLE REMOVAL/INSTALLATION [13B-MSP]

id0111e4801500

Warning

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1. Complete the BEFORE SERVICE PRECAUTION. (See BEFORE SERVICE PRECAUTION [13B-MSP].)

2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

3. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP].)

4. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP].)

5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [13B-MSP].)

6. Remove the front suspension tower bar. (MT) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [MT].)

7. Remove the extension manifold (upper, lower) and oil filler pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP].)

8. Remove the metering oil pump No.1 and No.2. (See METERING OIL PUMP REMOVAL/INSTALLATION [13B-MSP].)

9. Remove the fuel injector and fuel distributor component (intake manifold side). (See FUEL INJECTOR REMOVAL/INSTALLATION [13B-MSP].)

10. Remove in the order indicated in the table.

11. Install in the reverse order of removal.

12. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, repair or replace the applicable part.

13. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [13B-MSP].)

14. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [13B-MSP].)

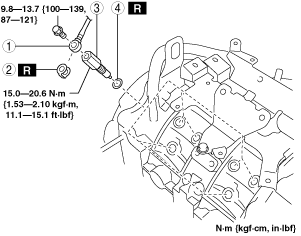

ar8wzw00000747

1

Oil tube

(See Oil Tube Removal Note.)

2

Gasket

3

Oil nozzle

4

Washer

Oil Tube Removal Note

1. Record the routing of the oil tubes when removing so that they can be re-installed in the same routing condition.

2. Remove the oil tubes.

1	Oil tube (See Oil Tube Removal Note.)
2	Gasket
3	Oil nozzle
4	Washer
