DYNAMIC STABILITY CONTROL LOCATION INDEX

id041500800500

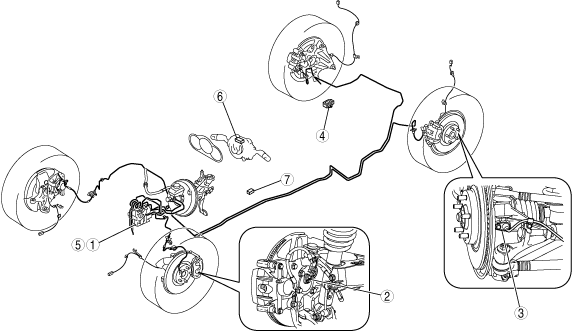

L.H.D.

ar8uuw00001244

1	DSC HU/CM (See DSC SYSTEM INSPECTION.) (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC HU/CM INSPECTION.)
2	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
3	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
4	Combined sensor (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.) (See COMBINED SENSOR INITIALIZATION PROCEDURE.)
5	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
6	Steering angle sensor (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.) (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE.)
7	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)

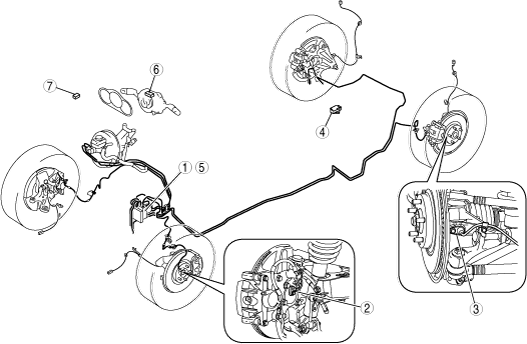

R.H.D.

ar8wzw00000322

1	DSC HU/CM (See DSC SYSTEM INSPECTION.) (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC HU/CM INSPECTION.)
2	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
3	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
4	Combined sensor (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.) (See COMBINED SENSOR INITIALIZATION PROCEDURE.)
5	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
6	Steering angle sensor (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.) (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE.)
7	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
