EPS CONTROL MODULE INSPECTION

id061300283200

1. Remove the following parts:

(1) Engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

(2) Battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP].)

(3) PCM cover (See PCM REMOVAL/INSTALLATION [13B-MSP].)

(4) PCM (See PCM REMOVAL/INSTALLATION [13B-MSP].)

(5) PCM bracket No.1 (See PCM REMOVAL/INSTALLATION [13B-MSP].)

(6) PCM bracket No.2 (See PCM REMOVAL/INSTALLATION [13B-MSP].)

(7) PCM bracket No.3 (See PCM REMOVAL/INSTALLATION [13B-MSP].)

(8) EPS control module (See EPS CONTROL MODULE REMOVAL/INSTALLATION.)

2. Connect the PCM and EPS control module connectors.

3. Attach the tester lead to the underside of the control module connector and inspect the voltage and continuity according to the Terminal Voltage Table (Reference) indicated in the table.

Note

• When inspecting the torque sensor and EPS motor for continuity, turn the ignition switch off and inspect with the connectors for the EPS control module, torque sensor, and EPS motor disconnected.

Terminal Voltage Table (Reference)

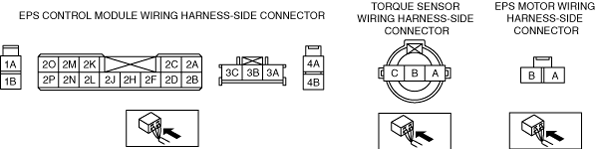

ar8wzw00000238

Terminal

Signal name

Connected to

Measured item

Measured terminal (measured condition)

Standard

Inspection item(s)

1A

Battery power supply

Battery

Voltage

Under any condition

B+

•  Wiring harness (1A—battery)

•  Fuse (60 A)

1B

Ground

Ground point

Voltage

Under any condition

1 V or less

•  Wiring harness (1B—ground point)

2A

Ground

Ground point

Voltage

Under any condition

1 V or less

•  Wiring harness (2A—ground point)

2B

—

—

—

—

—

—

2C

—

—

—

—

—

—

2D

—

—

—

—

—

—

2E

—

—

—

—

—

—

2F

—

—

—

—

—

—

2H

—

—

—

—

—

—

2J

—

—

—

—

—

—

2K

CAN_L

—

Inspect under DTC inspection.

—

2L

—

—

—

—

—

—

2M

CAN_H

—

Inspect under DTC inspection.

—

2N

—

—

—

—

—

—

2O

Ground

Ground point

Voltage

Under any condition

1 V or less

•  Wiring harness (2O—ground point)

2P

Ignition power supply

Ignition switch

Voltage

Ignition switch is ON

B+

•  Wiring harness (2P—ignition switch—battery)

•  Fuse (15 A)

Ignition switch is OFF

1 or less

3A

Torque sensor

(Signal 2)

Torque sensor

Continuity

Terminal 3A—torque sensor terminal A

Continuity detected

•  Wiring harness (3A—torque sensor A)

3B

Torque sensor

(Drive signal)

Torque sensor

Continuity

Terminal 3B—torque sensor terminal B

Continuity detected

•  Wiring harness (3B—torque sensor B)

3C

Torque sensor

(Signal 1)

Torque sensor

Continuity

Terminal 3C—torque sensor terminal C

Continuity detected

•  Wiring harness (3C—torque sensor C)

4A (L.H.D.)

EPS motor

EPS motor

Continuity

Terminal 4A—EPS motor terminal A

Continuity detected

•  Wiring harness (4A—EPS motor A)

4A (R.H.D.)

Terminal 4A—EPS motor terminal B

•  Wiring harness (4A—EPS motor B)

4B (L.H.D.)

EPS motor

EPS motor

Continuity

Terminal 4B—EPS motor terminal B

Continuity detected

•  Wiring harness (4B—EPS motor B)

4B (R.H.D.)

Terminal 4B—EPS motor terminal A

•  Wiring harness (4B—EPS motor A)

Terminal	Signal name	Connected to	Measured item	Measured terminal (measured condition)	Standard	Inspection item(s)
1A	Battery power supply	Battery	Voltage	Under any condition	B+	• Wiring harness (1A—battery) • Fuse (60 A)
1B	Ground	Ground point	Voltage	Under any condition	1 V or less	• Wiring harness (1B—ground point)
2A	Ground	Ground point	Voltage	Under any condition	1 V or less	• Wiring harness (2A—ground point)
2B	—	—	—	—	—	—
2C	—	—	—	—	—	—
2D	—	—	—	—	—	—
2E	—	—	—	—	—	—
2F	—	—	—	—	—	—
2H	—	—	—	—	—	—
2J	—	—	—	—	—	—
2K	CAN_L	—	Inspect under DTC inspection.			—
2L	—	—	—	—	—	—
2M	CAN_H	—	Inspect under DTC inspection.			—
2N	—	—	—	—	—	—
2O	Ground	Ground point	Voltage	Under any condition	1 V or less	• Wiring harness (2O—ground point)
2P	Ignition power supply	Ignition switch	Voltage	Ignition switch is ON	B+	• Wiring harness (2P—ignition switch—battery) • Fuse (15 A)
2P	Ignition power supply	Ignition switch	Voltage	Ignition switch is OFF	1 or less
3A	Torque sensor (Signal 2)	Torque sensor	Continuity	Terminal 3A—torque sensor terminal A	Continuity detected	• Wiring harness (3A—torque sensor A)
3B	Torque sensor (Drive signal)	Torque sensor	Continuity	Terminal 3B—torque sensor terminal B	Continuity detected	• Wiring harness (3B—torque sensor B)
3C	Torque sensor (Signal 1)	Torque sensor	Continuity	Terminal 3C—torque sensor terminal C	Continuity detected	• Wiring harness (3C—torque sensor C)
4A (L.H.D.)	EPS motor	EPS motor	Continuity	Terminal 4A—EPS motor terminal A	Continuity detected	• Wiring harness (4A—EPS motor A)
4A (R.H.D.)	EPS motor	EPS motor	Continuity	Terminal 4A—EPS motor terminal B	Continuity detected	• Wiring harness (4A—EPS motor B)
4B (L.H.D.)	EPS motor	EPS motor	Continuity	Terminal 4B—EPS motor terminal B	Continuity detected	• Wiring harness (4B—EPS motor B)
4B (R.H.D.)	EPS motor	EPS motor	Continuity	Terminal 4B—EPS motor terminal A	Continuity detected	• Wiring harness (4B—EPS motor A)
