SEATS LOCATION INDEX

id091300800100

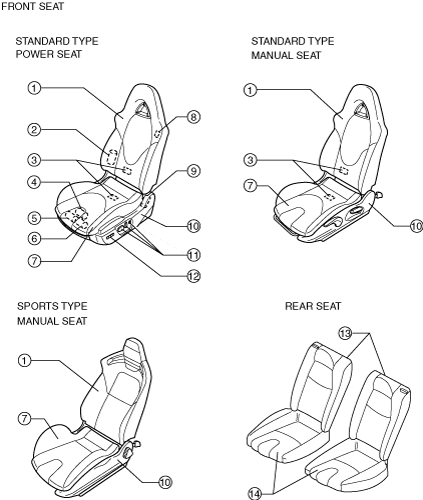

L.H.D.

ar8wzw00000993

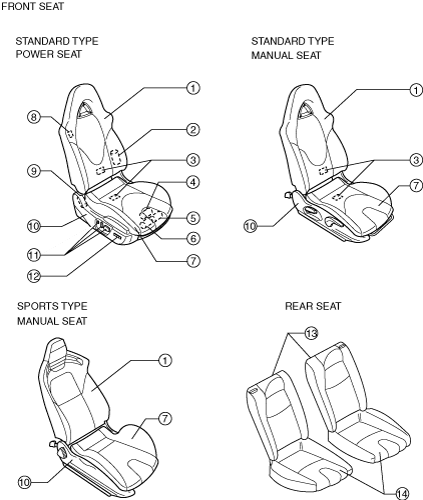

R.H.D.

ar8wzw00000994

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
2	Lumbar support motor (See LUMBAR SUPPORT MOTOR INSPECTION.)
3	Seat warmer unit (Vehicles with seat warmer) (See SEAT WARMER UNIT INSPECTION.)
4	Slide motor (See SLIDE MOTOR INSPECTION.)
5	Rear tilt motor (See REAR TILT MOTOR INSPECTION.)
6	Front tilt motor (See FRONT TILT MOTOR INSPECTION.)
7	Front seat cushion trim (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
8	Walk-in switch (See WALK-IN SWITCH REMOVAL/INSTALLATION.) (See WALK-IN SWITCH INSPECTION.)
9	Recliner motor (See RECLINER MOTOR INSPECTION.)
10	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)
11	Power seat switch (See POWER SEAT SWITCH INSPECTION.)
12	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION.)
13	Rear seat back (See REAR SEAT REMOVAL/INSTALLATION.) (See REAR SEAT DISASSEMBLY/ASSEMBLY.)
14	Rear seat cushion (See REAR SEAT REMOVAL/INSTALLATION.) (See REAR SEAT DISASSEMBLY/ASSEMBLY.)
