ENGINE DISASSEMBLY/ASSEMBLY[AJ (3.0L Duratec)]

id0110a3800500

1.  Remove the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

2.  Remove the CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

3.  Remove the intake manifold. (See INTAKE MANIFOLD REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

4.  Remove the dynamic chamber. (See DYNAMIC CHAMBER REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

5.  Remove the thermostat case and water hose component.

atraaw00000911

6.  Remove the water bypass tube.

7.  Remove the Ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

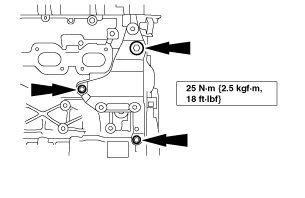

8.  Remove the generator bracket.

atraaw00000348

9.  Assemble in the reverse order of disassembly.
