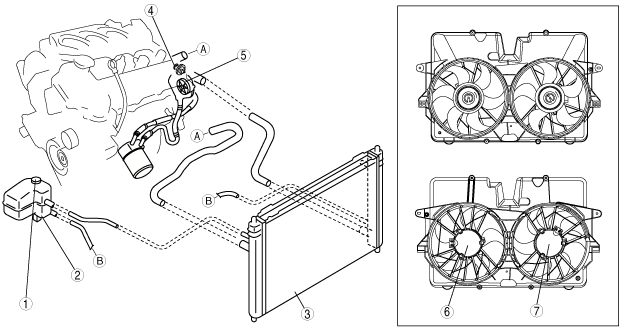

COOLING SYSTEM LOCATION INDEX[AJ (3.0L Duratec)]

id0112a2800100

atraaw00000470

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION[AJ (3.0L Duratec)].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION[AJ (3.0L Duratec)].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
3	Radiator (See ENGINE COOLANT PROTECTION INSPECTION[AJ (3.0L Duratec)].) (See ENGINE COOLANT REPLACEMENT[AJ (3.0L Duratec)].) (See ENGINE COOLANT LEAKAGE INSPECTION[AJ (3.0L Duratec)].) (See RADIATOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See THERMOSTAT INSPECTION[AJ (3.0L Duratec)].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
6	Cooling fan motor No.1 (See COOLING FAN COMPONENT REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See FAN MOTOR INSPECTION[AJ (3.0L Duratec)].)
7	Cooling fan motor No.2 (See COOLING FAN COMPONENT REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See FAN MOTOR INSPECTION[AJ (3.0L Duratec)].)
