REAR DIFFERENTIAL REMOVAL/INSTALLATION

id031400800400

1.  Remove the rotary blade coupling. (See RBC UNIT REMOVAL/INSTALLATION.)

2.  Remove the rear drive shaft. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION.)

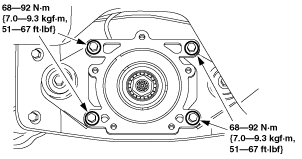

3.  Remove the axle component-to-side bracket bolts.

atraaw00002685

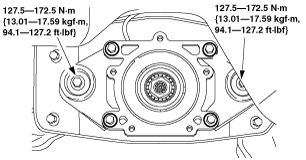

4.  Remove the front differential mount.

atraaw00002686

5.  Remove the rear axle‐to‐side bracket bolts and the axle component.

atraaw00002687

6.  Install in the reverse order of removal.

7.  After installation, inspect the rear wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)
