EMISSION SYSTEM LOCATION INDEX [L3]

id0116a2803700

R.H.D. Model

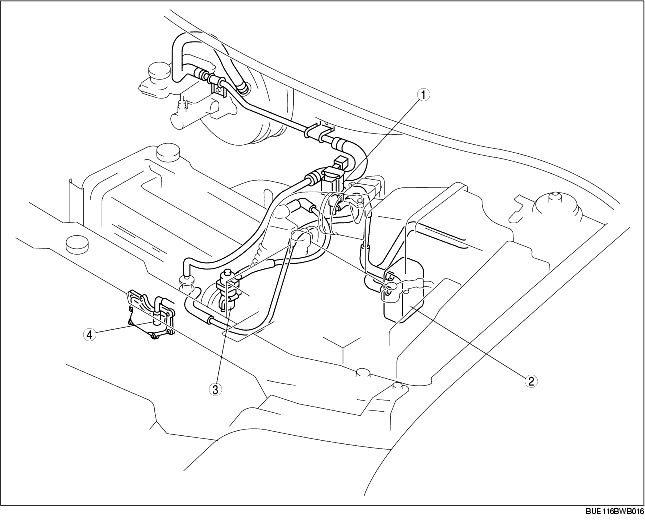

Engine compartment side


1	Purge solenoid valve (See PURGE SOLENOID VALVE INSPECTION [L3 R.H.D.].)
2	Catch tank (built into air cleaner) (See CATCH TANK INSPECTION [L3 R.H.D.].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [L3].) (See EGR VALVE INSPECTION [L3 R.H.D.].)
4	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [L3 R.H.D.].)

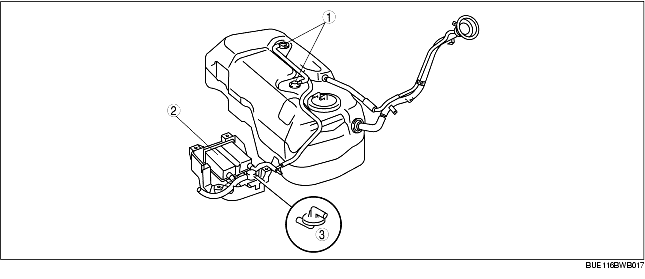

Fuel tank side


1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [L3 R.H.D.].) (See ROLLOVER VALVE INSPECTION [L3 R.H.D.].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L3].) (See CHARCOAL CANISTER INSPECTION [L3].)
3	Check valve (two-way)

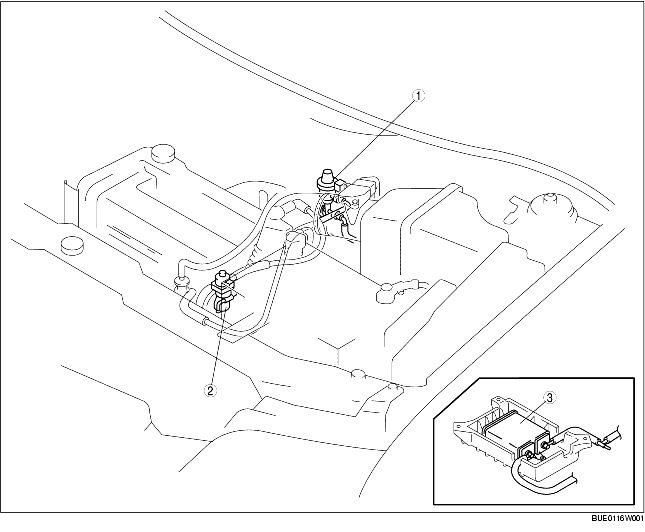

L.H.D. Model


1	Purge solenoid valve
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [L3].)
3	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L3].) (See CHARCOAL CANISTER INSPECTION [L3].)
