REAR DOOR HINGE ADJUSTMENT


id091100801600

1. Remove the front seat belt retractor. (See FRONT SEAT BELT RETRACTOR REMOVAL/INSTALLATION.)

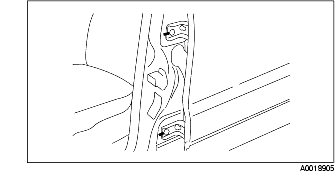

2. Mark the positions of rear door hinges to use as reference points.

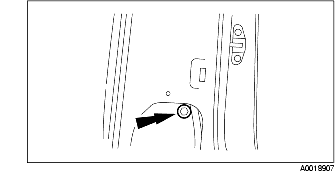

3. Loosen the door hinge and the installation bolt just enough to permit movement.

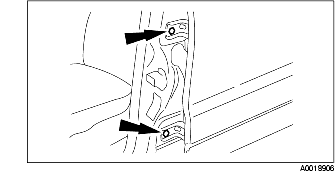

4. Loosen the rear door hinge and the two installation bolts just enough to permit movement.

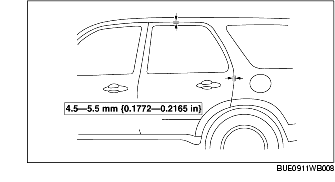

5. Adjust the rear door.

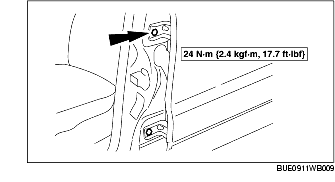

6. Tighten the door hinge and the four installation bolts.

7. Adjust the front door to specification. (See FRONT DOOR ADJUSTMENT.)(See FRONT DOOR HINGE ADJUSTMENT.)

8. Install the front seat belt retractor. (See FRONT SEAT BELT RETRACTOR REMOVAL/INSTALLATION.)
