Diagnostic Trouble Code (DTC) Memory - Section 12
Preparation For Test 1.
Connect impulse counter scan tool or Hand-Held Tester
(HHT) to X11/4, according to diagram.
Scan Tool Testing and Procedures Notes: 1.
Read Out Diagnostic Trouble Codes
(DTC's) and record.
2.
Rectify faults according to table.
3.
Interrupt voltage to PSE control module for approx.
3 seconds, to erase the safety memory.

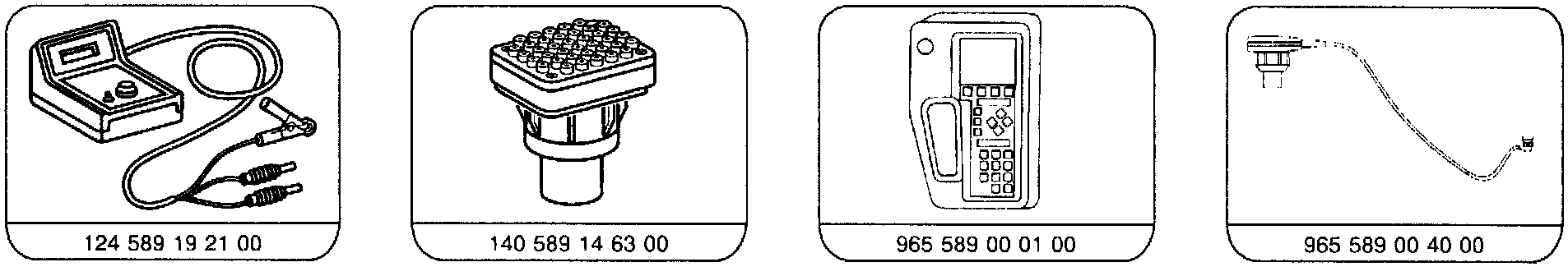

Special Tools:

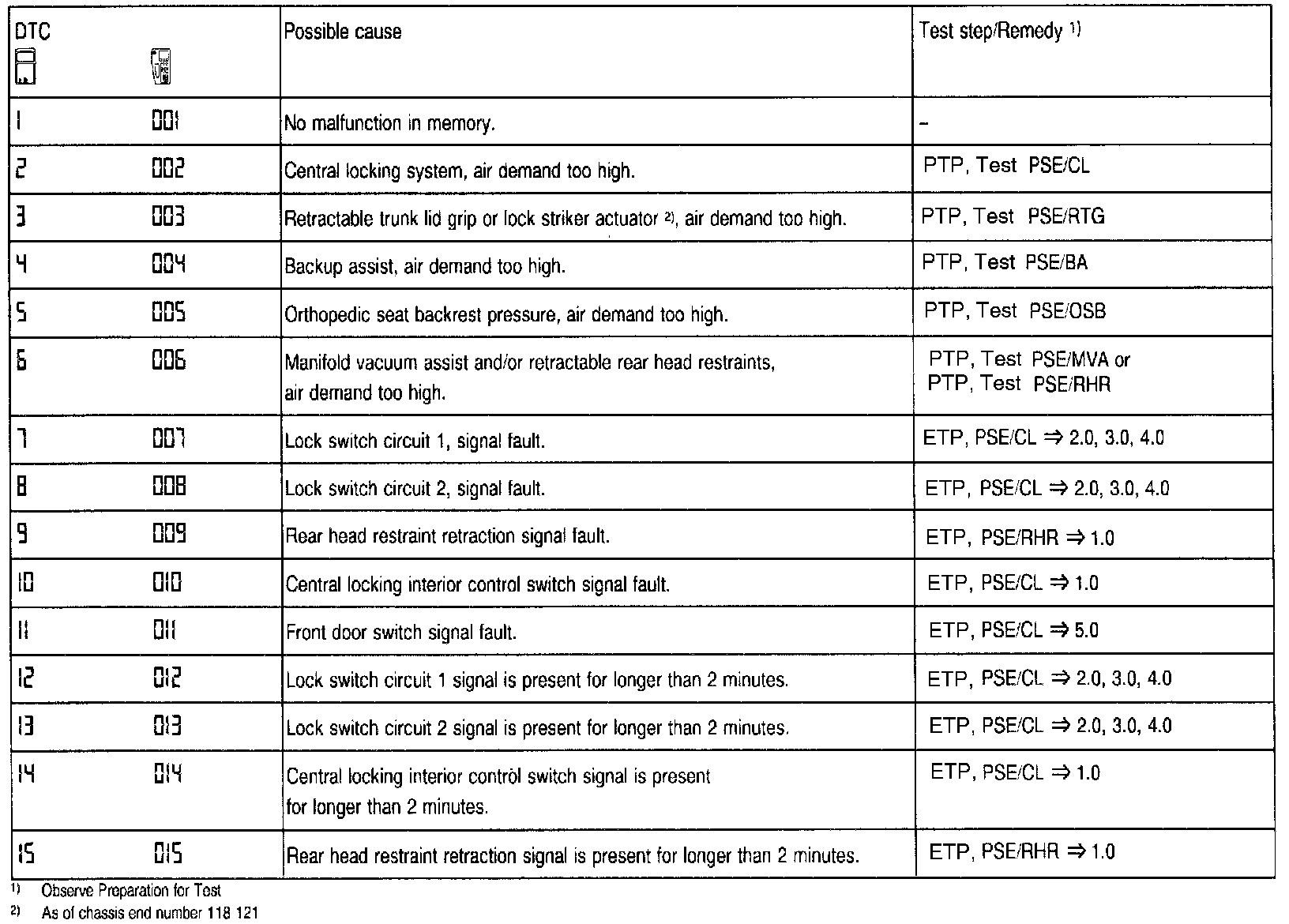

DTC's 1 Thru 15:
