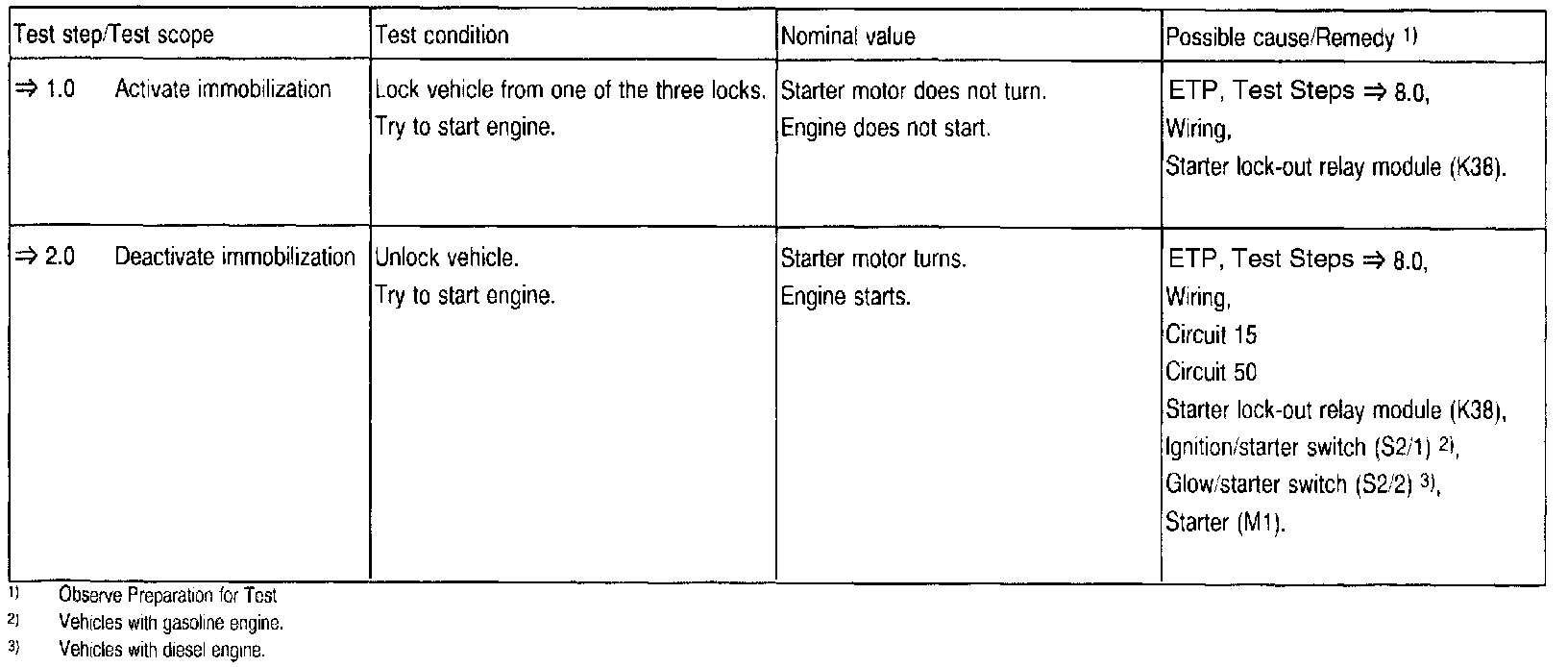

Function Test - Section 11
Preliminary work:
Diagnosis Function Test: PSE/CL, Function Test - Section 11

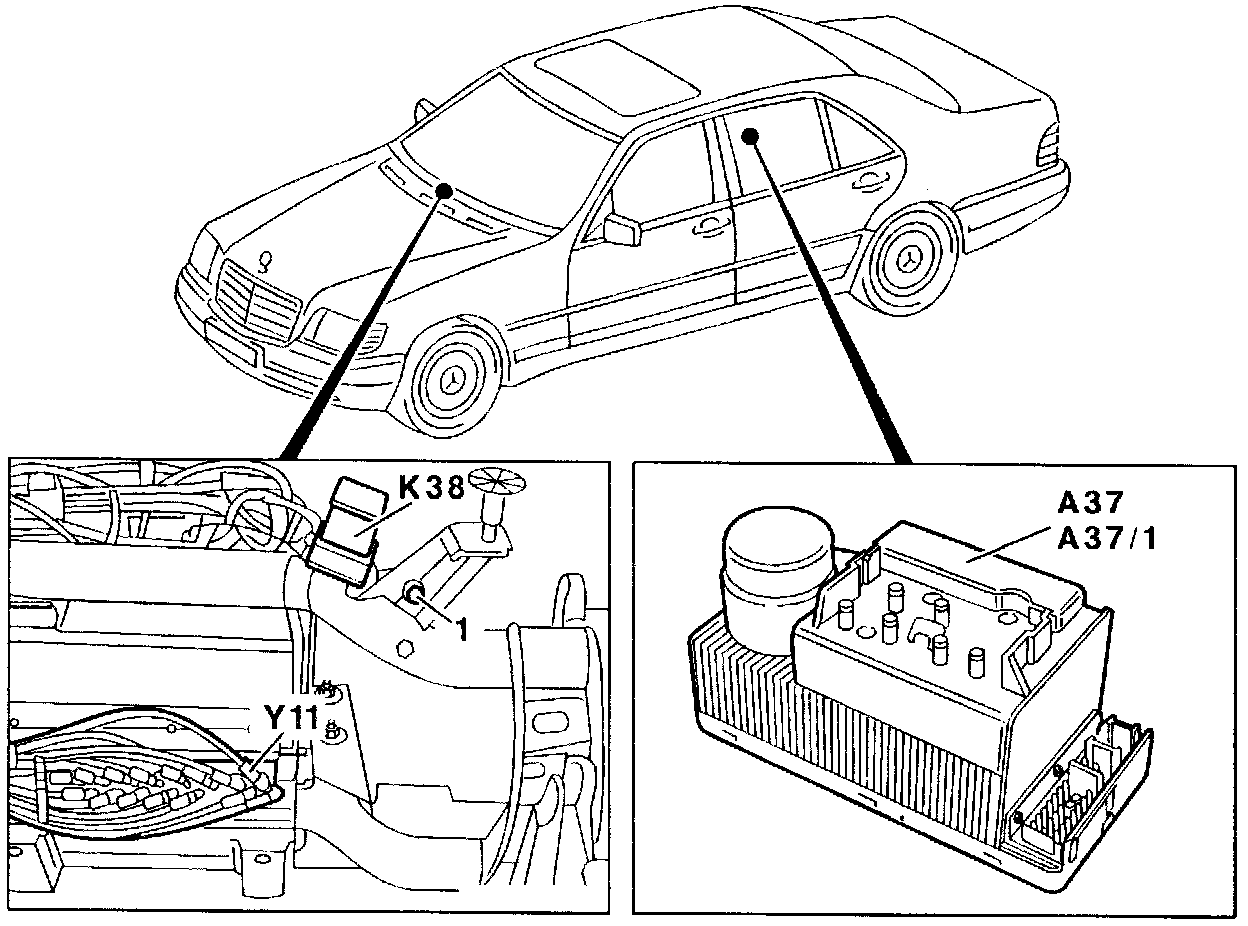

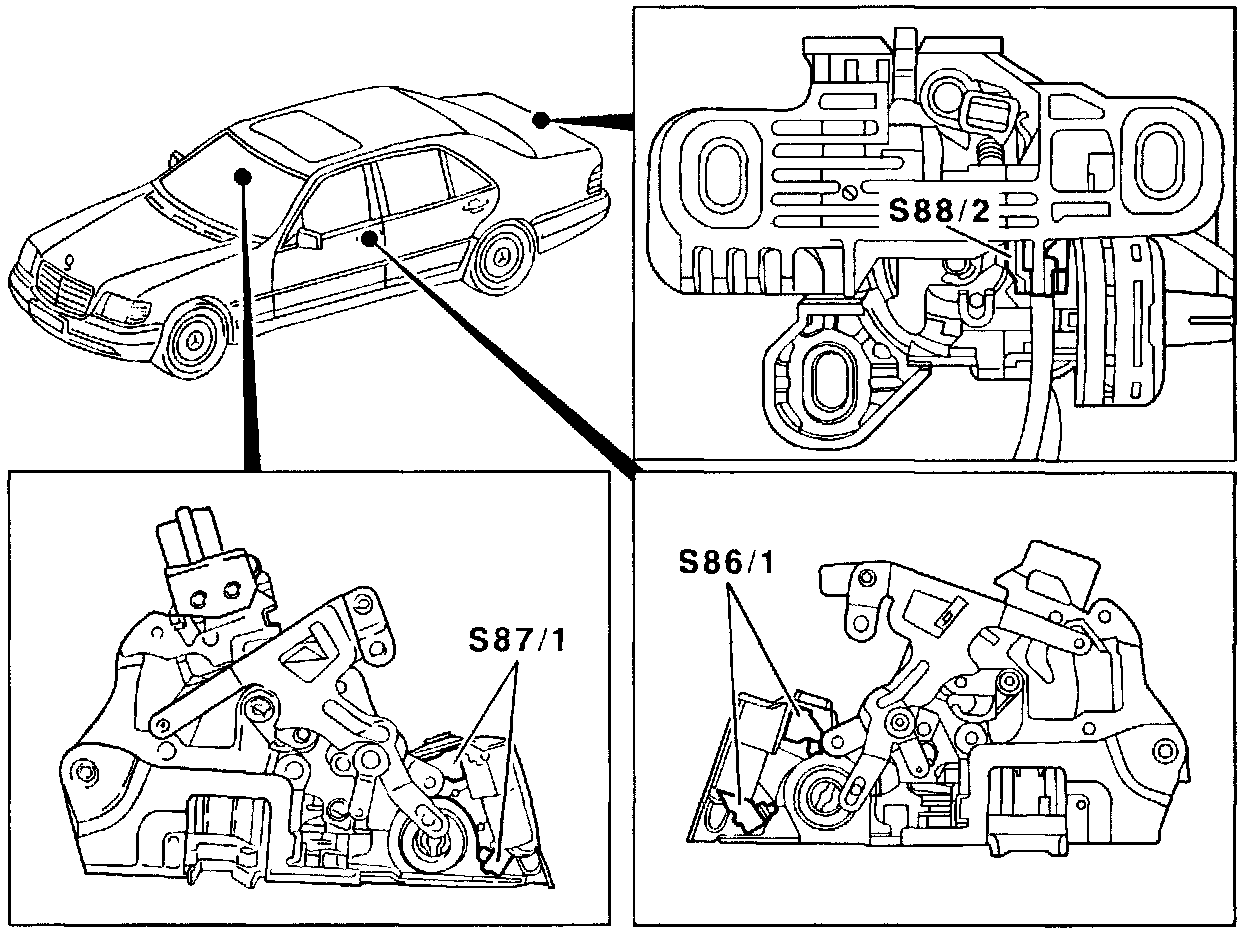

Component Locations
S86/1 Left front door lock switch
S87/1 Right front door lock switch
S88/2 Trunk lid lock switch
A37, A37/1 PSE control module
K38 Starter lock-out relay module (vehicles as of 12/93 only)
Preparation For Test
1. Check fuse F4-3, 11.
2. Battery voltage 11 - 14 V.
3. Vehicle unlocked.
4. All doors and trunk lid closed.
5. Window on driver's door open.
