Rear Control and Operating Module

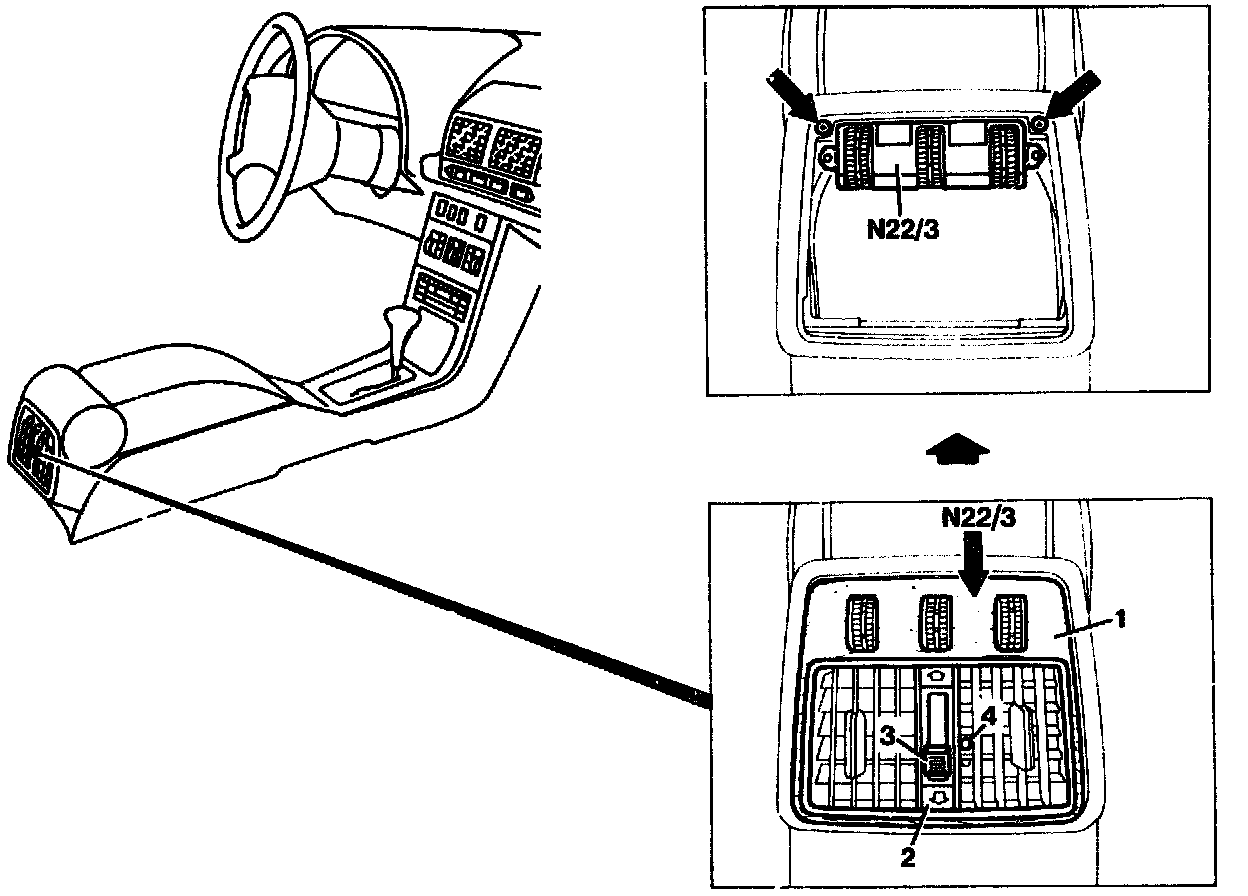

N22/3:






Adjusting screw (4) for air flap
Unscrew (hexagon socket screw).

Front cover plate (1) together with air outlet (2)
Pull out carefully.

Control unit (N22/3)
Remove, 2 screws (arrows).

Install
In reverse sequence ensuring that the air flap with the slide controller (3) closes completely and the electrical cables are correctly routed.

Rear air conditioner
Perform function check.

NOTE: After completing the work erase fault memory in the control and operating unit.
