Control Module HVAC: Service and Repair

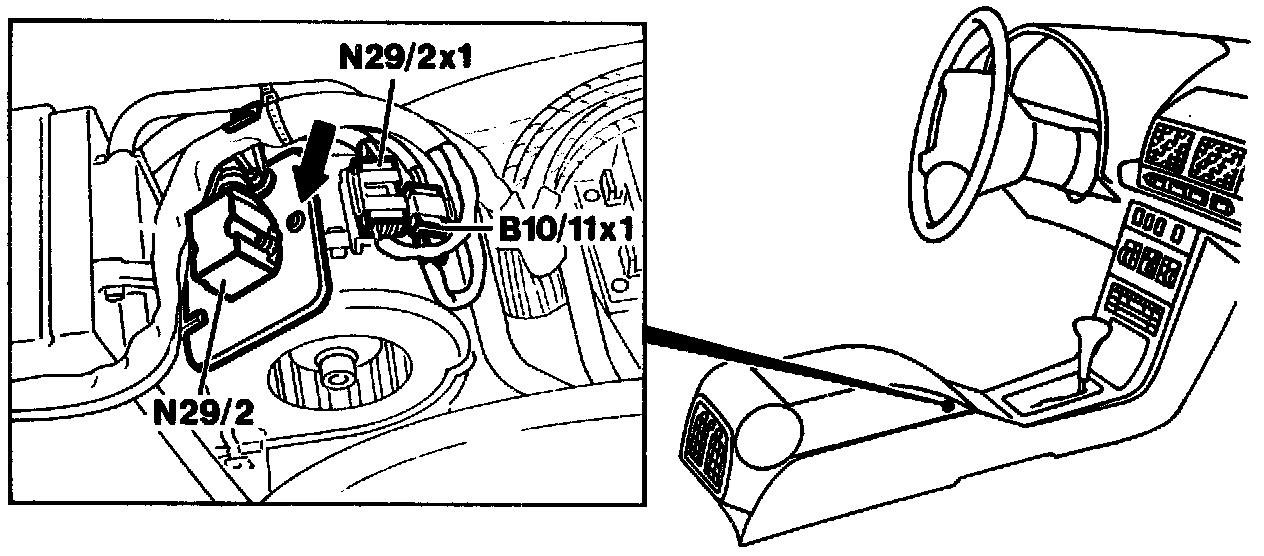

Rear Electronic Blower ControllerArmrest
Fold up.
Cover above rear air conditioner
Remove.
Plug connection N29/2 X 1
Disconnect.
Electronic blower controller N29/2
Remove (screw, arrow).
Electrical cables
Detach from blower motor.
Install
In reverse sequence, perform function check.
