Heater Core Temperature Sensor

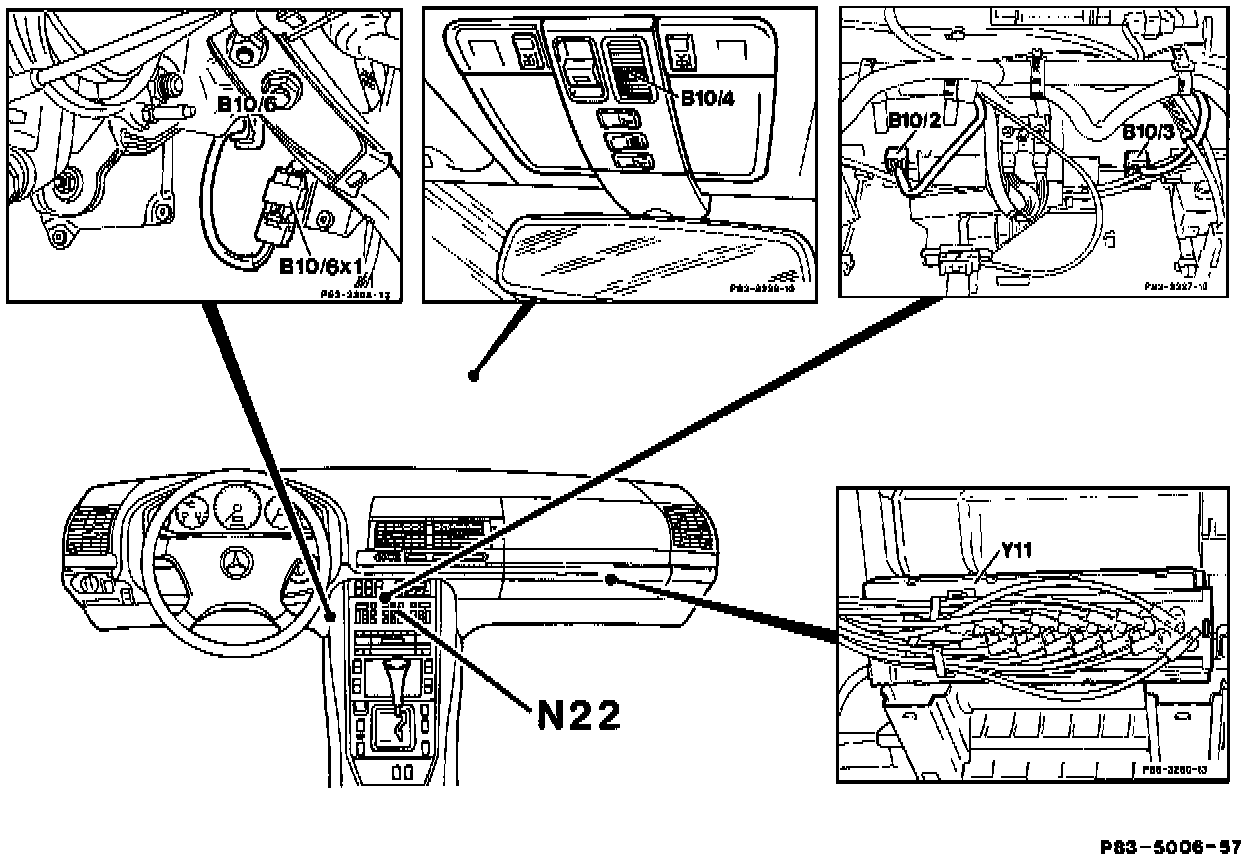

Component Locations In Passenger Compartment:
Image Reference:
B10/2
Left heater core temperature sensor
B10/3
Right heater core temperature sensor
B10/4
In-car temperature sensor with aspirator blower
B10/6
Evaporator temperature sensor
B10/6x1
Connector, evaporator temperature sensor
N22
ACC pushbutton control unit
Y11
Switchover valve unit, 15-connection (multiplex)
