Remove and Install Heater Core Temperature Sensor
Pushbutton control module
Remove.
Service and Repair2-pole connectors
Disconnect.

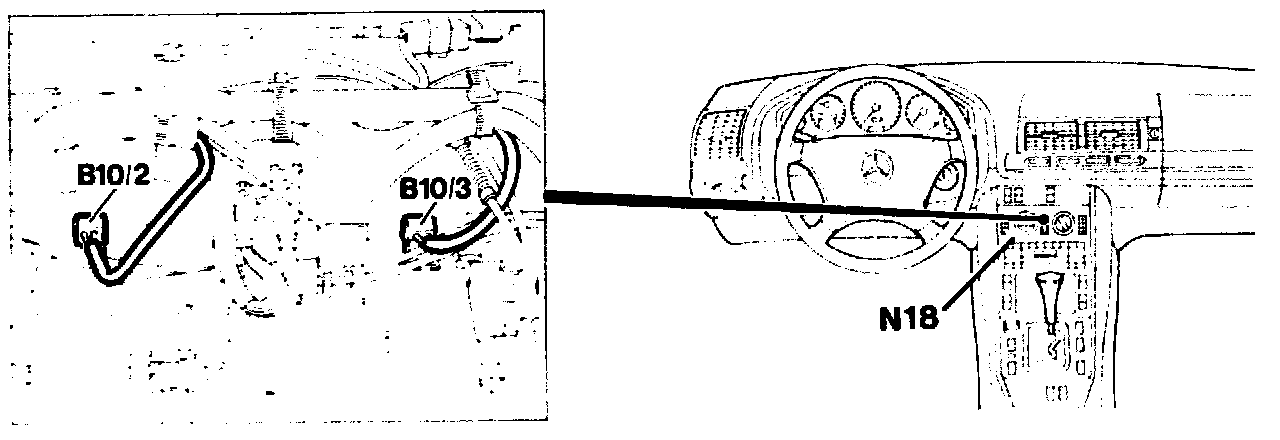

Heat exchanger temperature sensor (B10/2 or B10/3)
Pull out.
Temperature sensor
Test and renew if necessary.
Install
In the reverse sequence.
Automatic climate control
Test.
NOTE: After completing the work erase fault memory in control unit.
