Crankshaft Position Sensor: Locations

Component Locations:

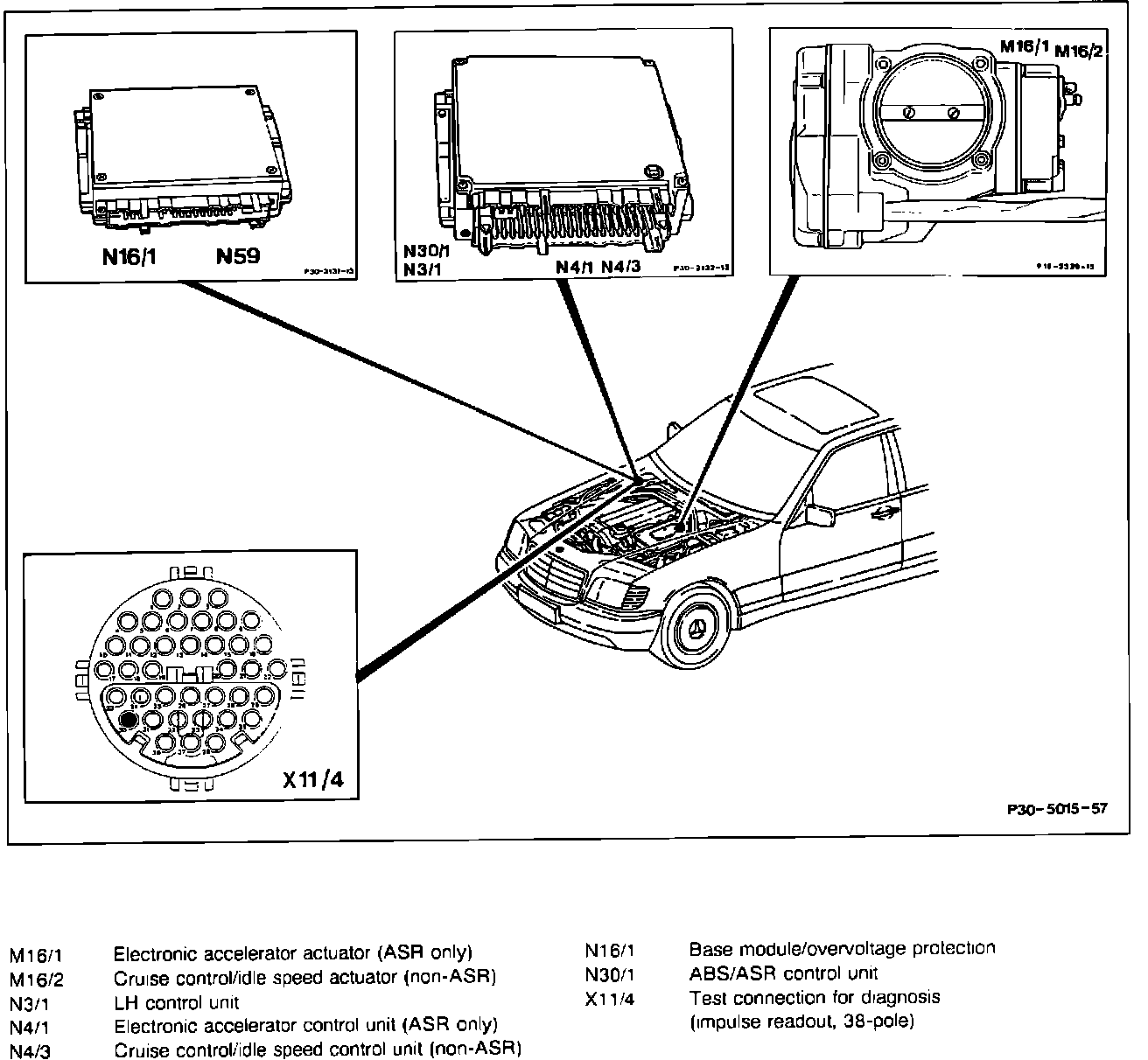

Fig. # 1

Component Locations:

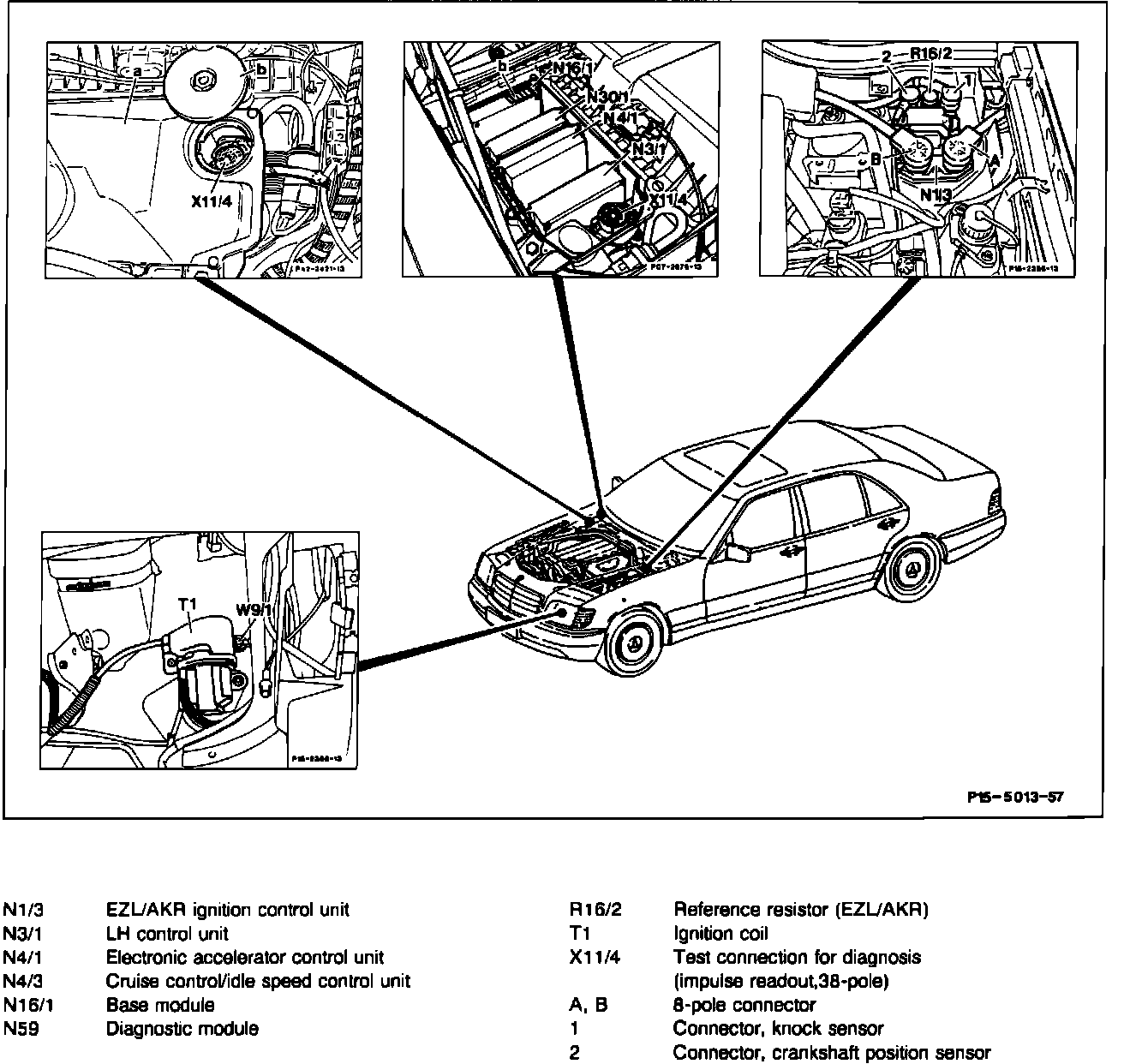

Fig. # 2

Component Locations:

Fig. # 3

Component Locations:

Fig. # 4

COMPONENTS:

Base module N16/1, see Fig. # 1.

Camshaft position sensor L5/1, see Fig. # 2.

"CHECK ENGINE" warning lamp A1e26, see Fig. # 1.

Crankshaft position sensor L5, see Fig. # 2.

EZL/AKR ignition control unit N1/3, see Fig. # 3.

Ignition coil T1, see Fig. # 3.

Intake manifold pressure sensor is located in the EZL/AKR ignition control unit N1/3, see Fig. # 3.

Knock sensors A16, see Fig. # 4.

Push-button and LED X11/21s1, see Fig. # 1.

Reference resistor R16/2, see Fig. # 3.

Transmission overload protection switch S65, see Fig. # 4.
