Cruise Control/Idle Speed Control (CC/ISC)

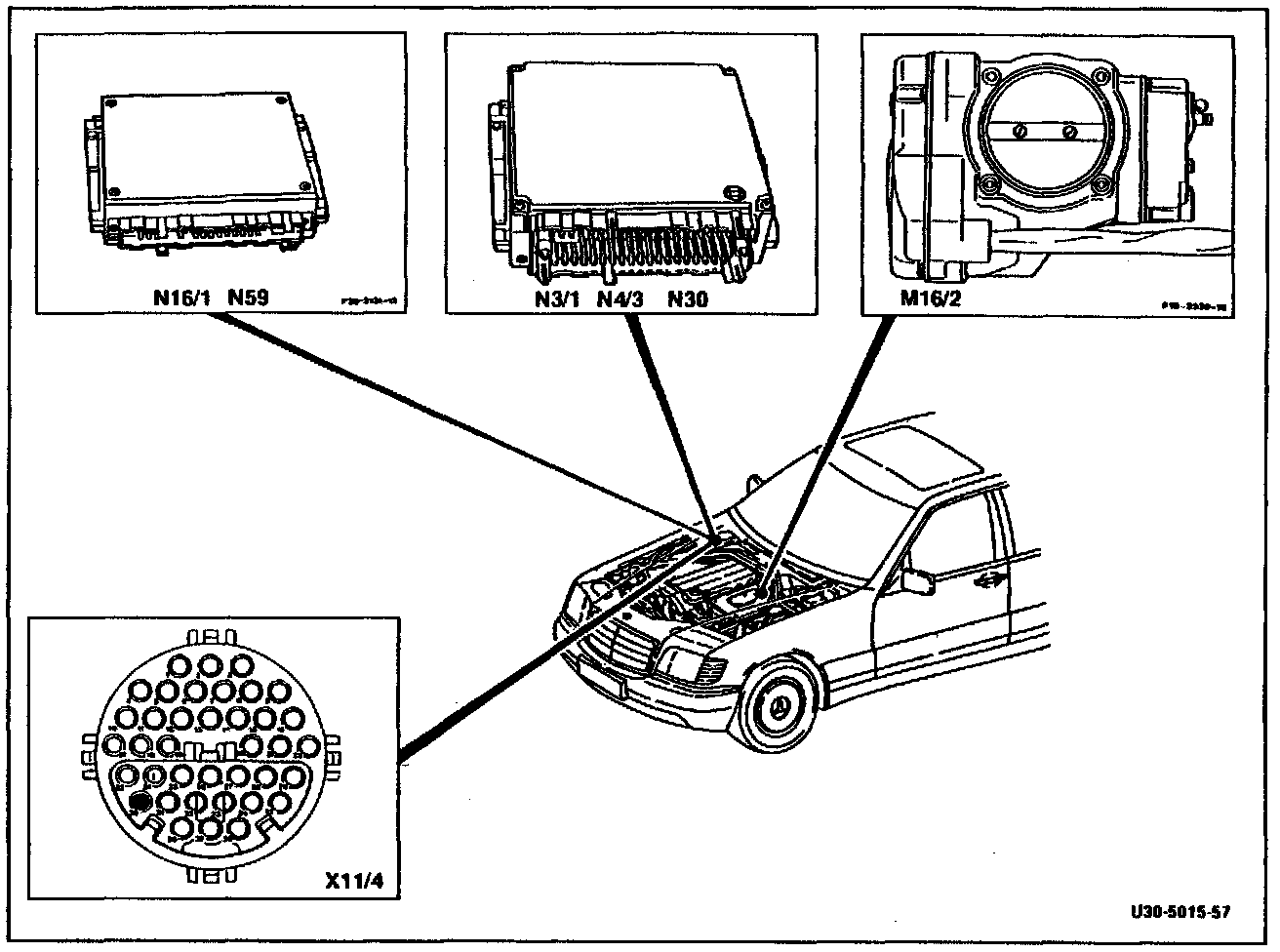

Figure 1:

M16/2 CC/ISC actuator
N3/1 LH-SFI control module
N4/3 CC/ISC control module
N16/1 Base module
N3O ABS control module
N59 Diagnostic module (OBD I)
X11/4 Data link connector (DTC readout) (38-pole)

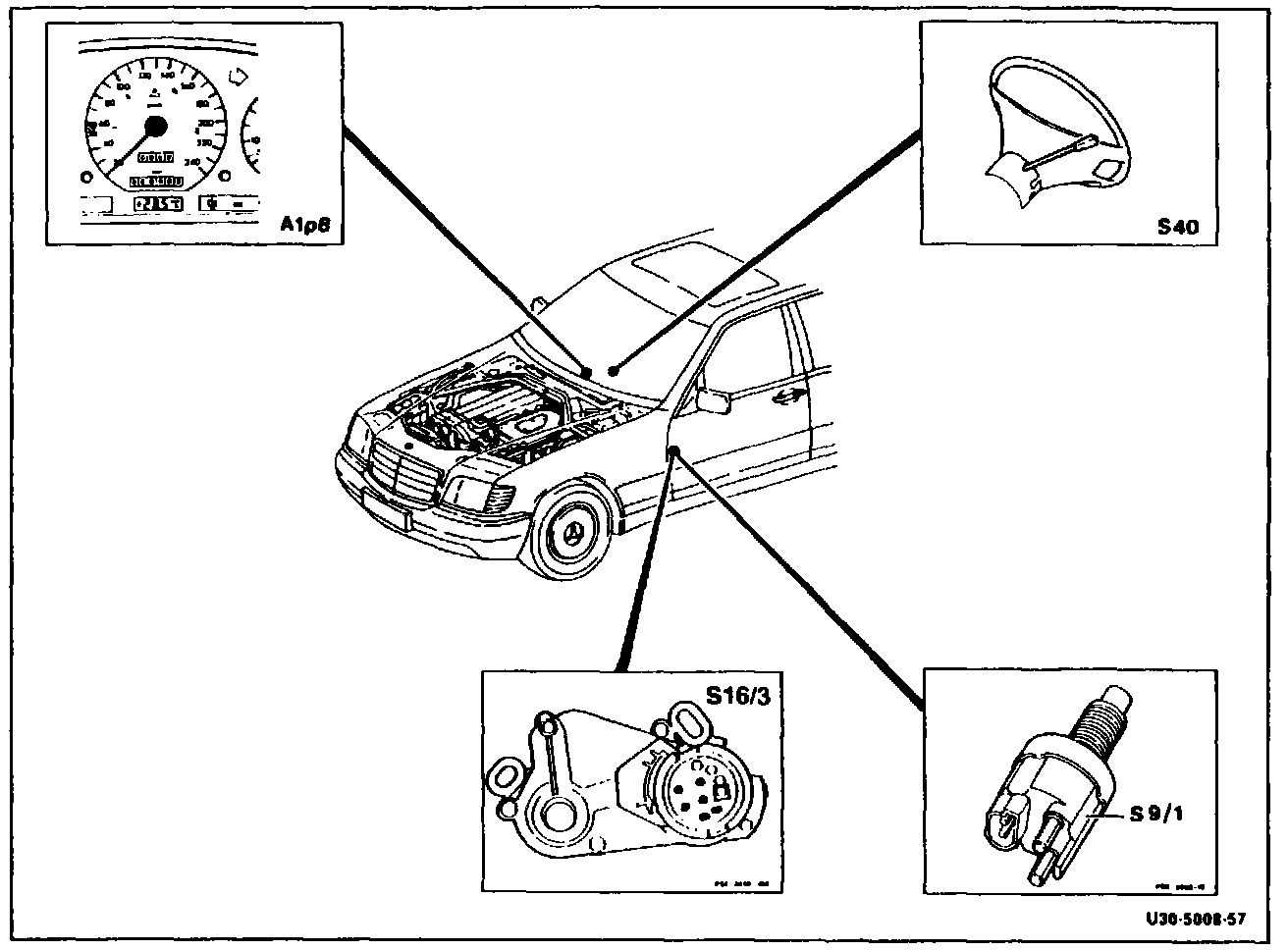

Figure 2:

A1p8 Electronic speedometer with top speed limitation
S9/1 Stop lamp switch
S16/3 Starter lock-out/backup lamp switch (transmission range recognition)
S40 Cruise control switch
V Decelerate/set
B Accelerate/set
SP Resume
A Off
