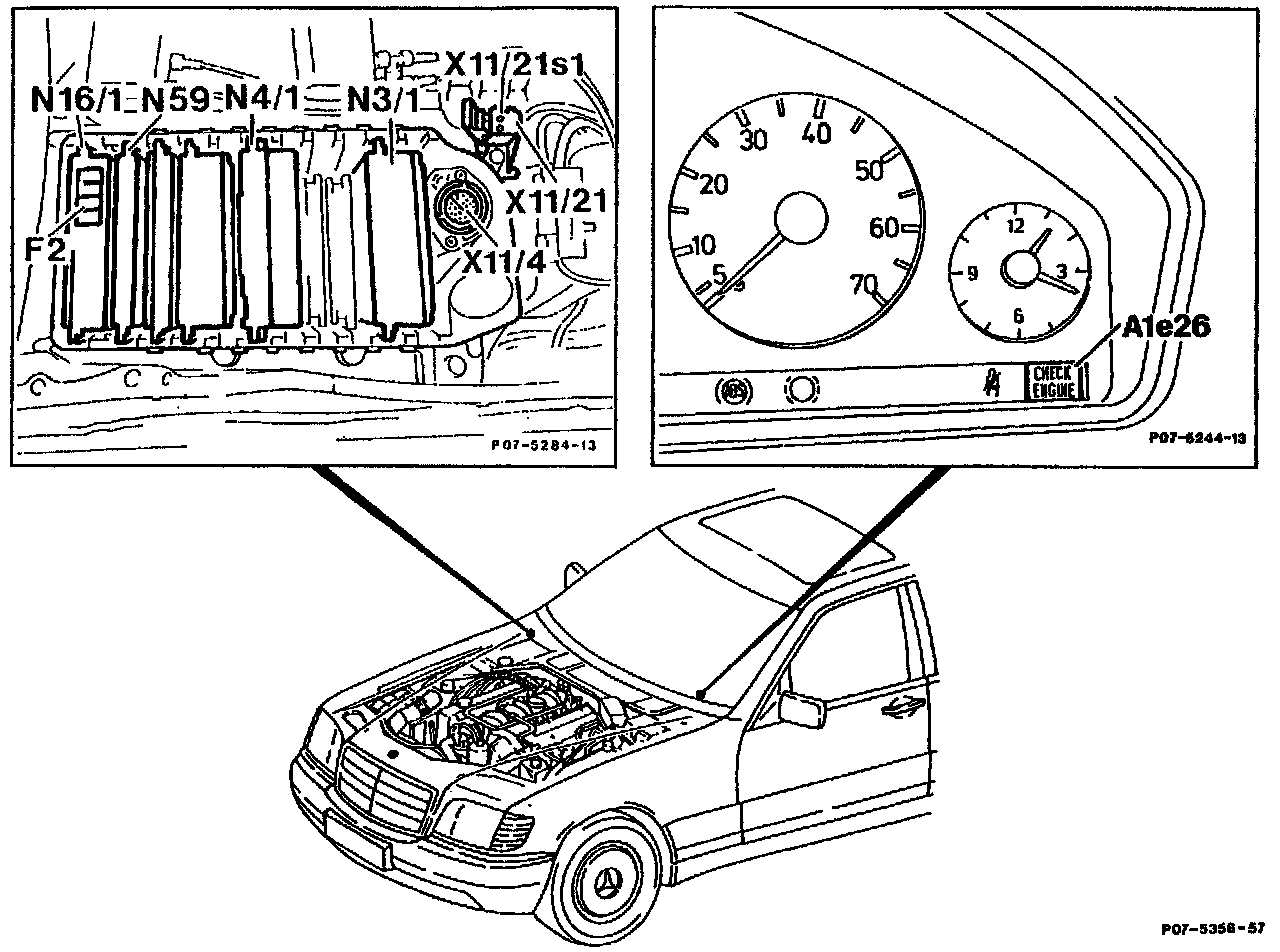

Diagnostic Module (DM)
A1e26
"CHECK ENGINE" malfunction indicator lamp
F2
Fuse, LH-SFI control module voltage supply
N3/1
LH-SFI control module
N4/1
Electronic accelerator/cruise control/idle speed control module
N16/1
Base module
N3O/1
ABS/ASR control module
N59
Diagnostic module
X11/4
Diagnostic connector (diagnostic trouble code, 38-pole)
X11/21
Diagnostic module test connection
X11/21s1
Push-button with LED
