Injection System (LH)

Component Locations:

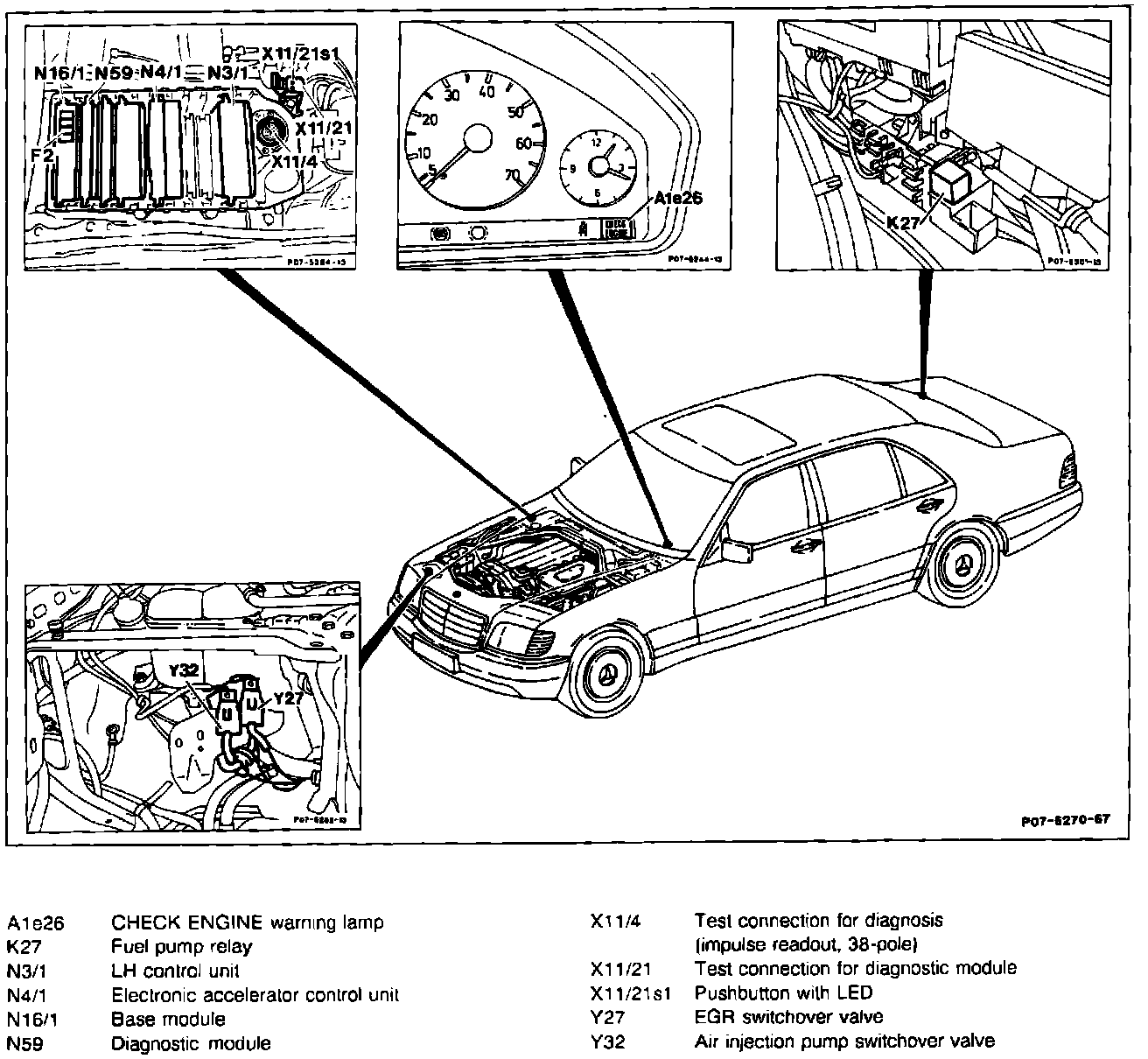

Fig. # 1

Component Locations:

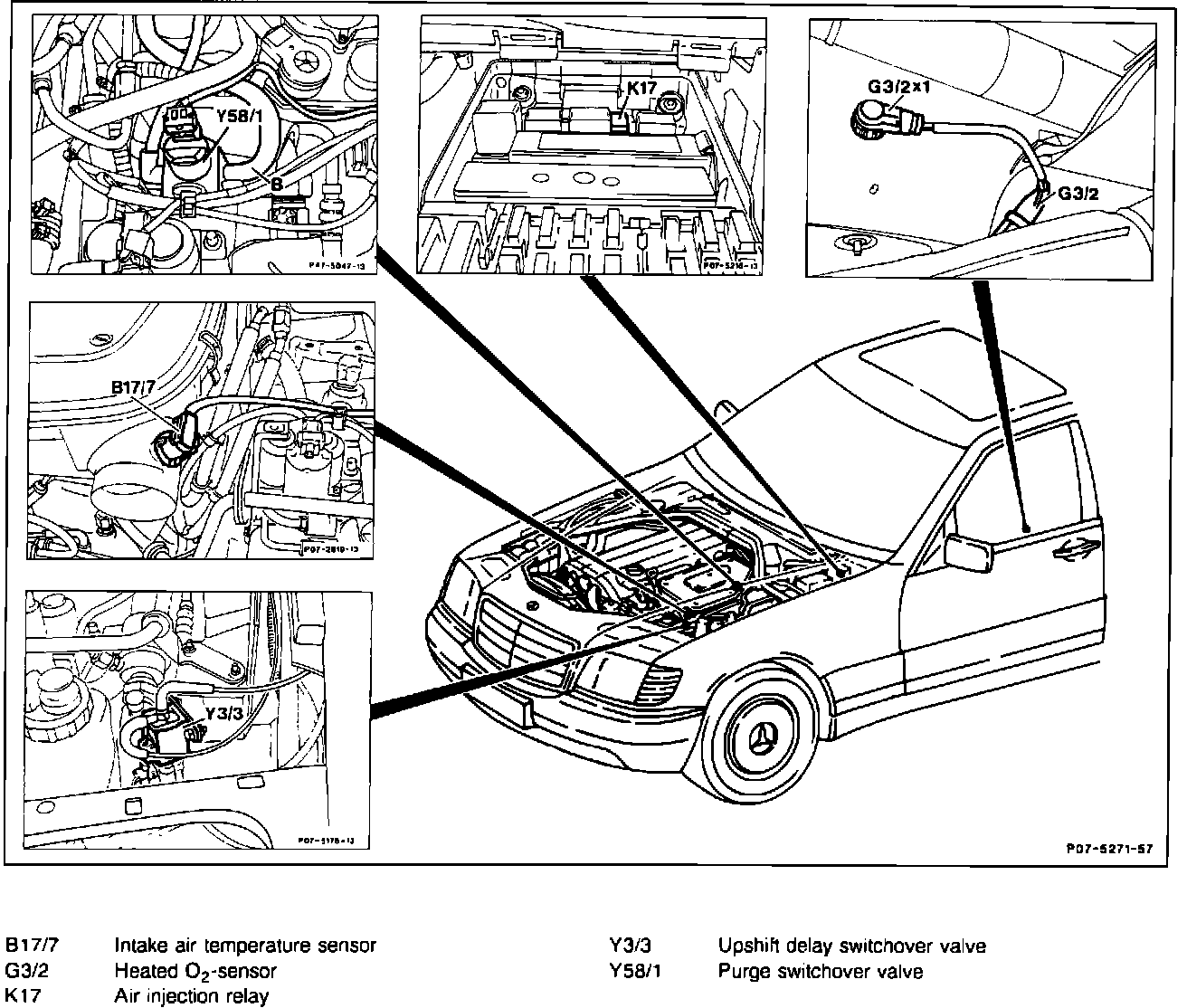

Fig. # 2

Component Locations:

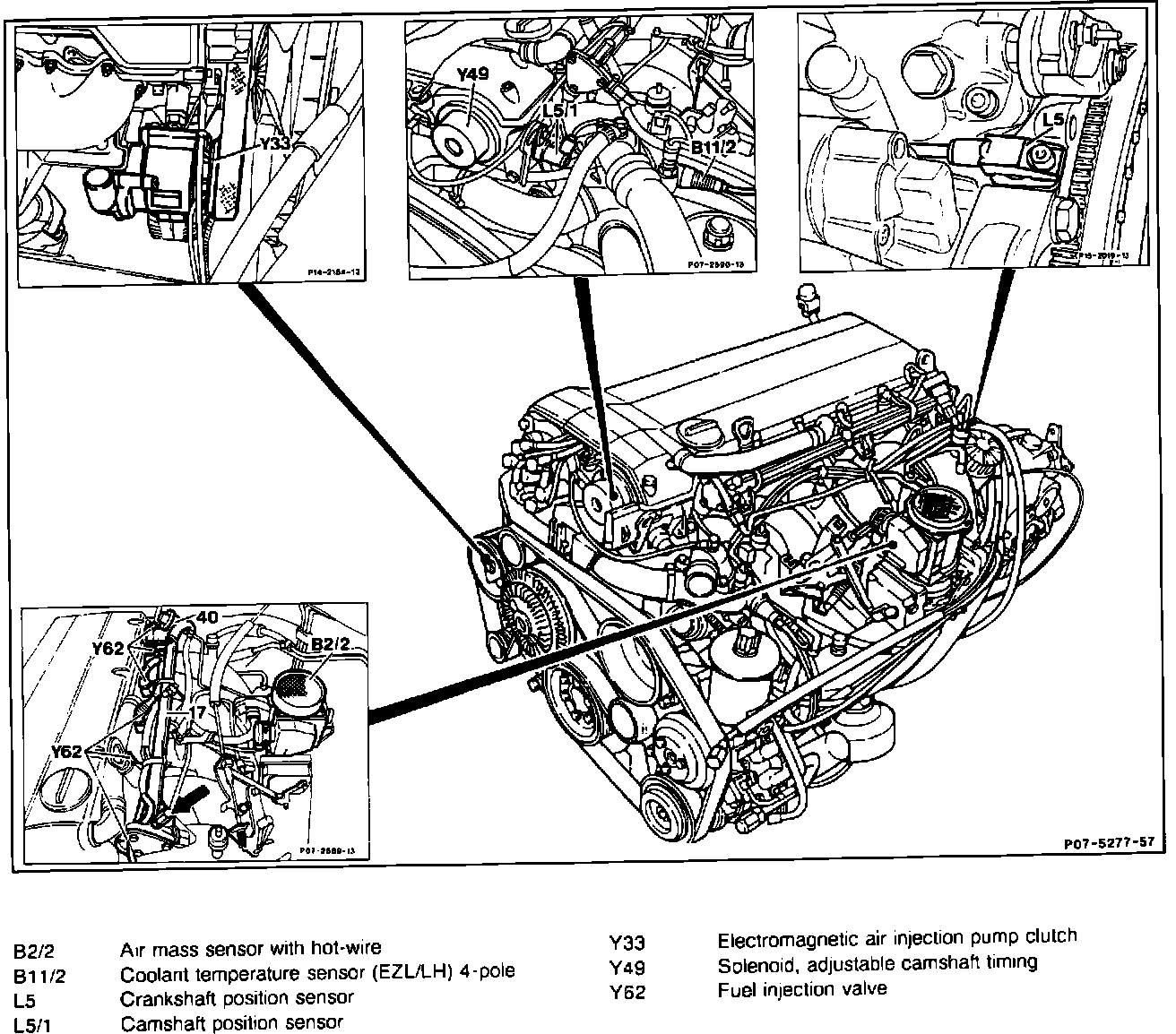

Fig. # 3

COMPONENTS:

Air injection pump switchover valve Y32, see Fig. # 1.

Air injection relay K17, see Fig. # 2.

Air mass sensor with hot wire B2/2, see Fig. # 3.

Base module N16/1, see Fig. # 1.

"CHECK ENGINE" warning lamp A1e26, see Fig. # 1.

Coolant temperature sensor B11/2, see Fig. # 3.

EGR switchover valve Y27, see Fig. # 1.

Fuel injectors Y62, see Fig. # 3.

Fuel pump relay K27, see Fig. # 1.

Intake air temperature sensor B17/7, see Fig. # 2.

LH control module N3/1, see Fig. # 1.

Oxygen sensor G3/2, see Fig. # 2.

Purge switchover valve Y58/1, see Fig. # 2.

Push-button and LED X11/21s1, see Fig. # 1.

Upshift delay switchover valve Y3/3, see Fig. # 2.
