Purpose and Location

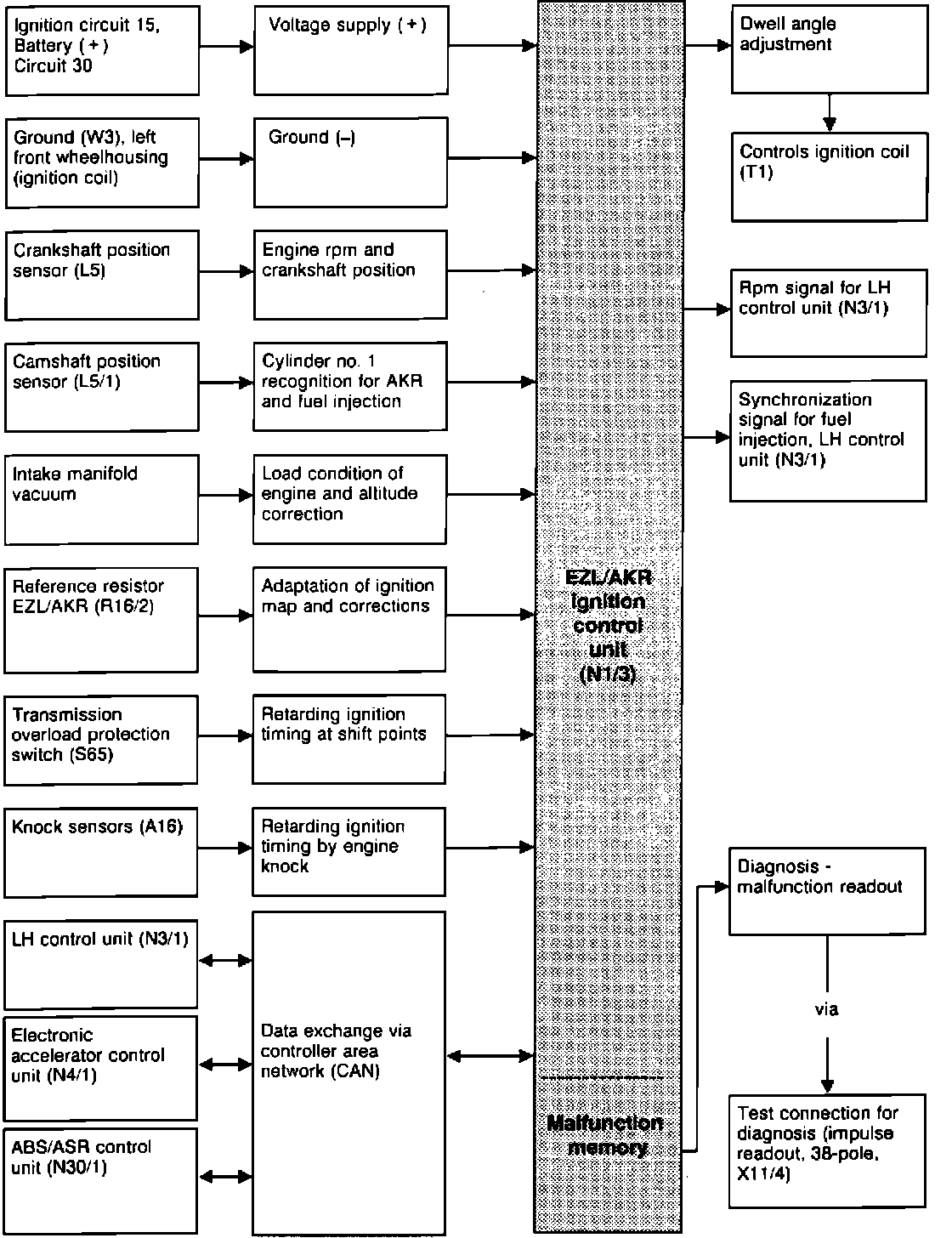

EZL/AKR Control Unit:





PURPOSE
The EZL/AKR ignition control unit (N1/3) contains a microcomputer, pressure sensor and the power output stage for control of the ignition coil.

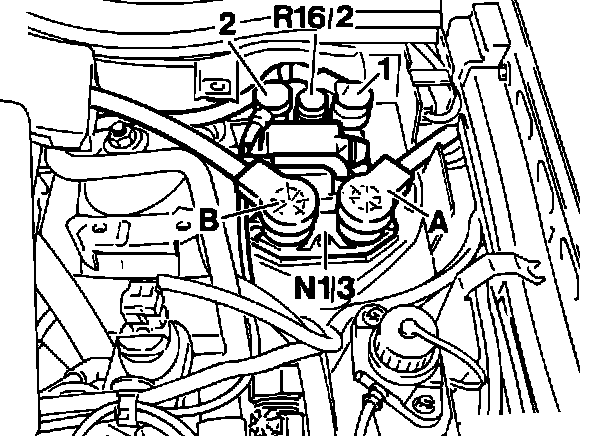

EZL/AKR Control Unit:





LOCATION
It is fitted to the driver side wheelhouse and is installed with a heat conducting paste.
