Lamp Out Module: Service and Repair

Ground cable at battery
disconnect, connect.

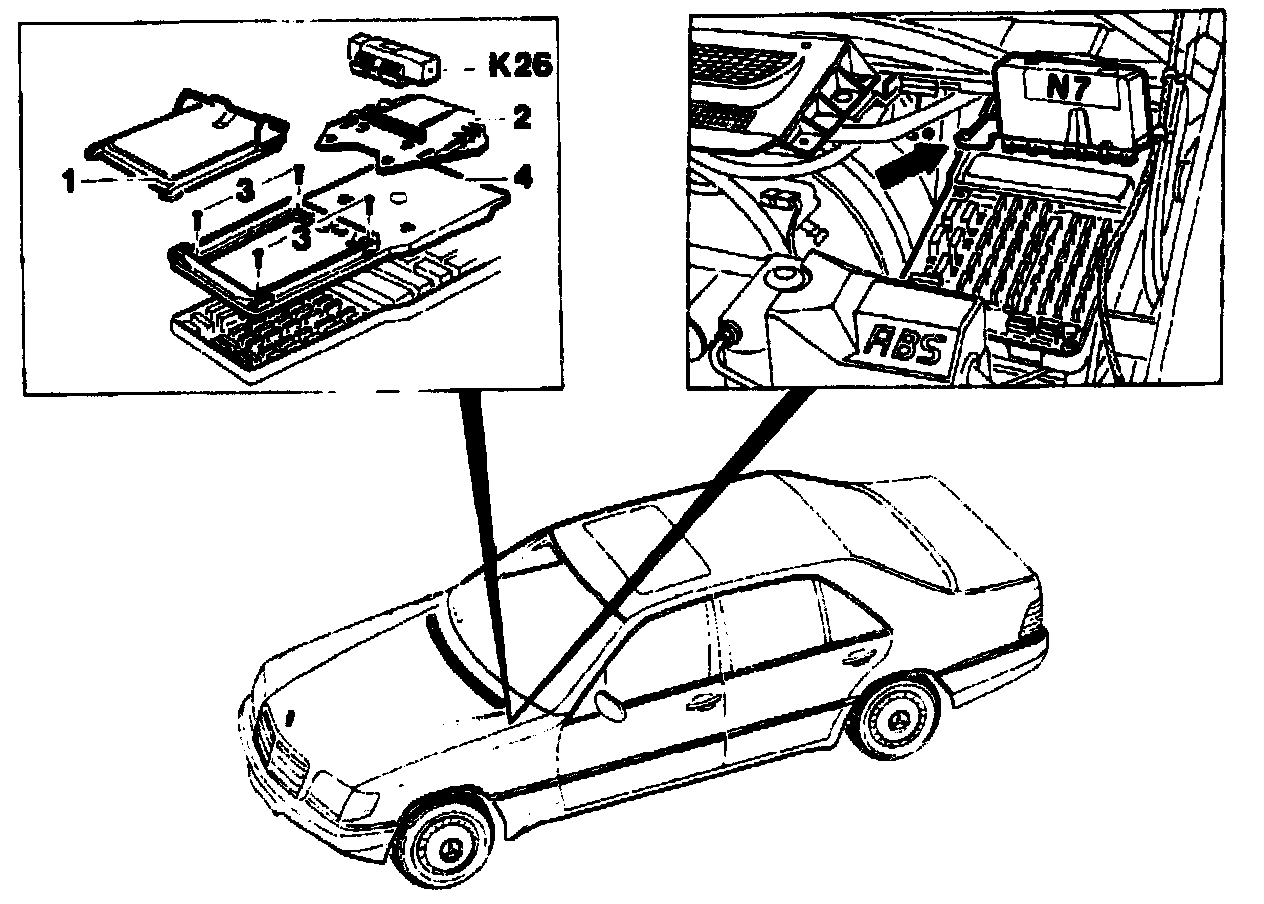

Fuse box cover (1)
take off, fit on.

Wiper system relay (K26)
take out of holder, insert.

Wiper system relay holder (2)
take off, fit on.

Screws (3)
unscrew, screw in.

Relay box cover (4)
take off, fit on.

NOTE: As of 09/95 it is first necessary to remove the combination relay (N10/2).

Lamp failure monitoring unit (N7)
remove, insert; insert the retaining lug (arrow) first.

NOTE: As of approx. 2/94 the lamp failure monitoring unit (N7) is held in place with an additional bracket.
