Power Window Control Module: Service and Repair



Replacing Convenience Control Module





Removal
Trunk carpeting
remove.

Battery cover
remove.

Right tail lamp cover
open.

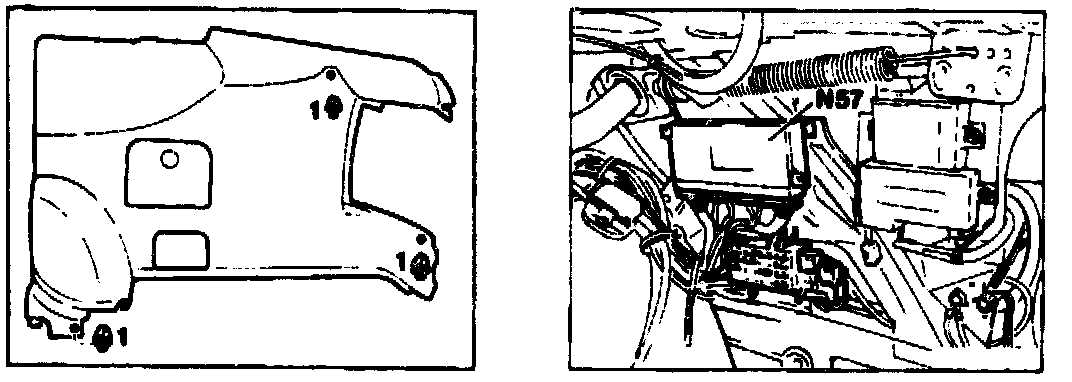

Clips (1) on aide panel lining
press off.

Right tail lamp cover
close.

Spare wheel well
open.

Wrench for wheel nuts
remove.

Clips below this
press off.

Side panel lining
remove.

Negative battery pole
disconnect.

Convenience control module (N57)
unscrew.

Connectors of convenience control module (N57)
unplug.


NOTE: First of all unplug connectors C, D, E and F, then press off connectors A and B with the push and push aid (press to outside).


Installation
Installation is performed in the reverse order.


NOTE: All the windows must be re-normalized. This is done by closing all the windows with the power window switches (not automatic raising) and allowing them to run to block for 1-2 s.
