W/O ASR

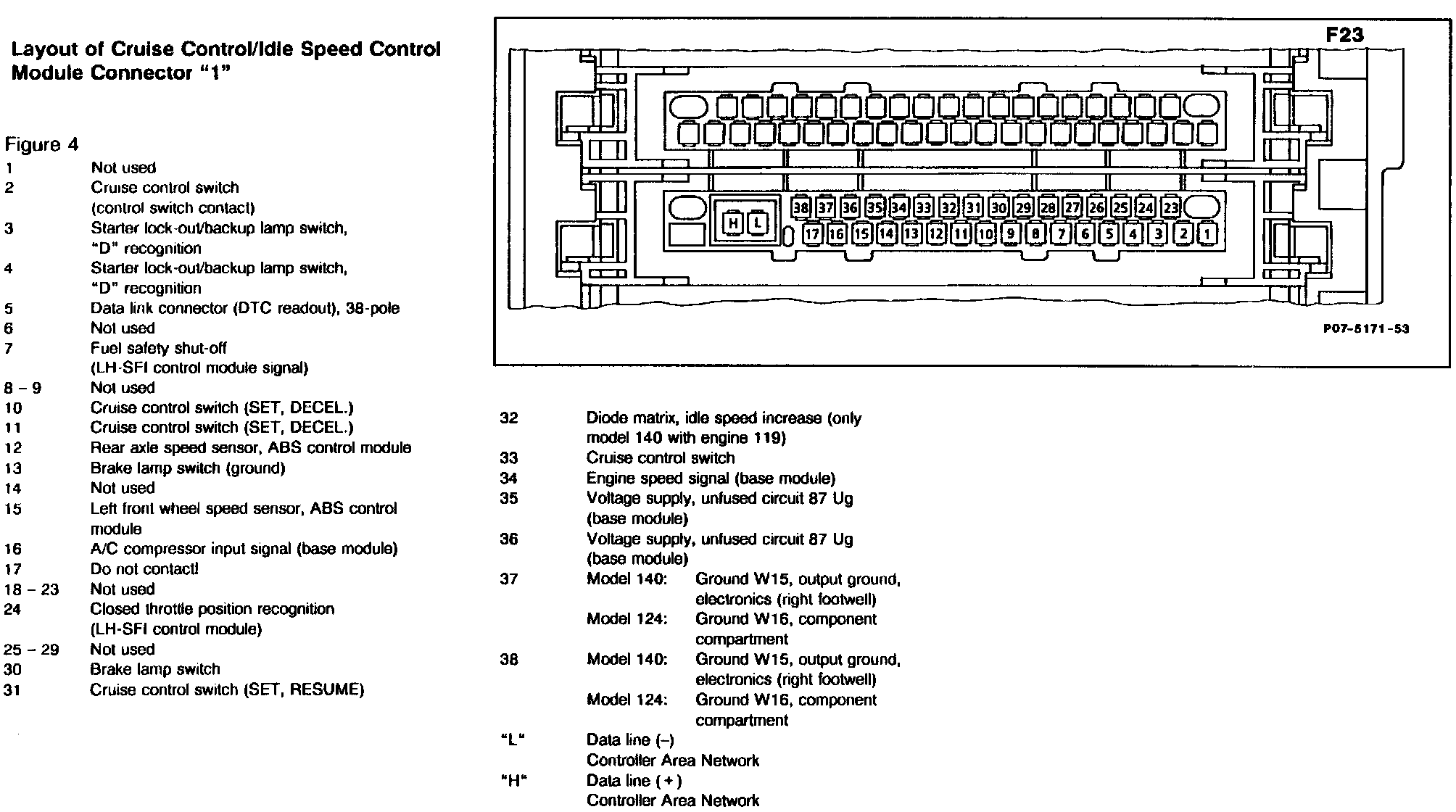

Cruise Control/Idle Speed Control Module Pin I.D. (Connector #1) In Module Box:





Layout of CC/ISC Control Module Connector "1"

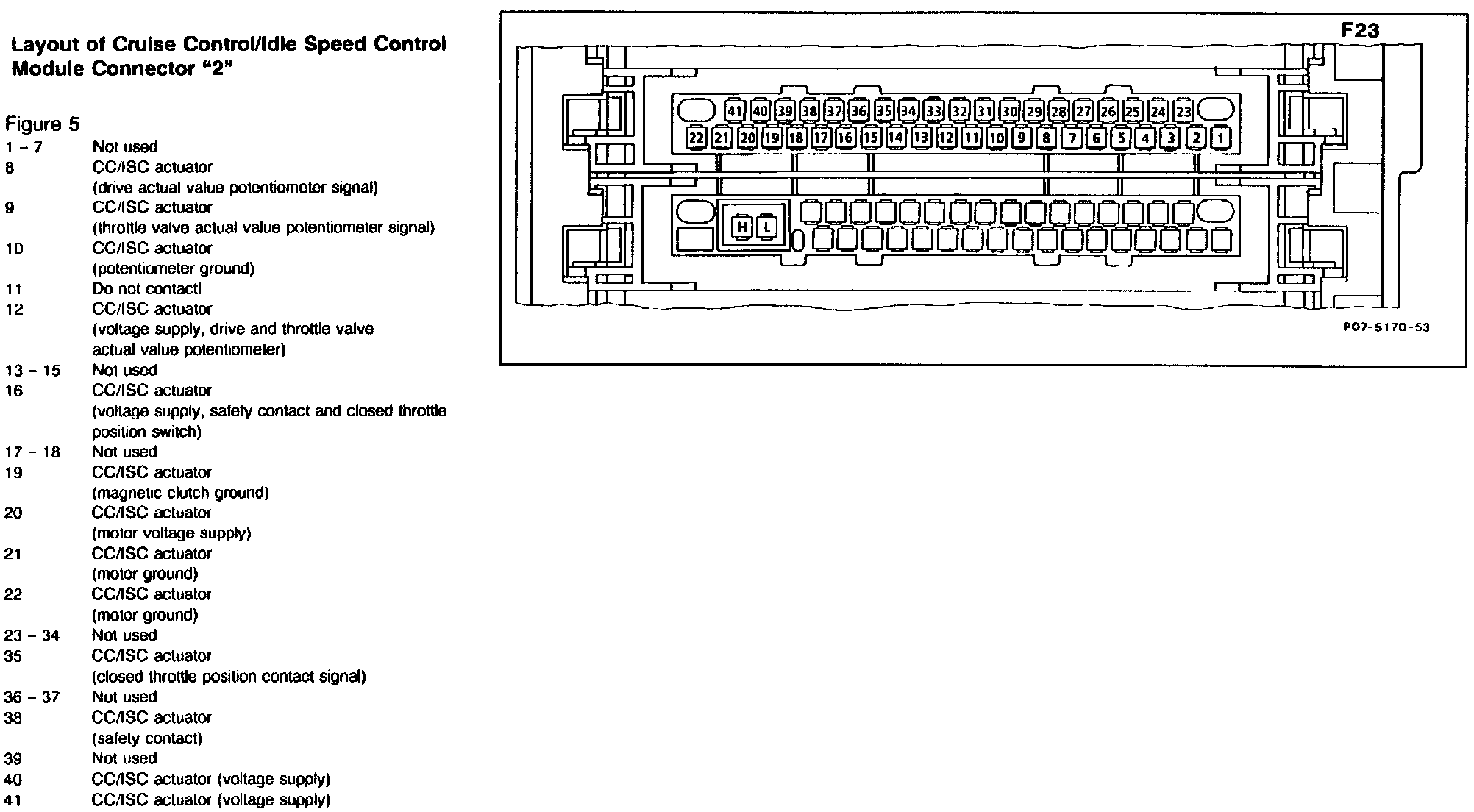

Cruise Control/Idle Speed Control Module Pin I.D. (Connector #2) In Module Box:





Layout of CC/ISC Control Module Connector "2"
