Electronic Accelerator System (EA/CC/ISC)

Component Locations:

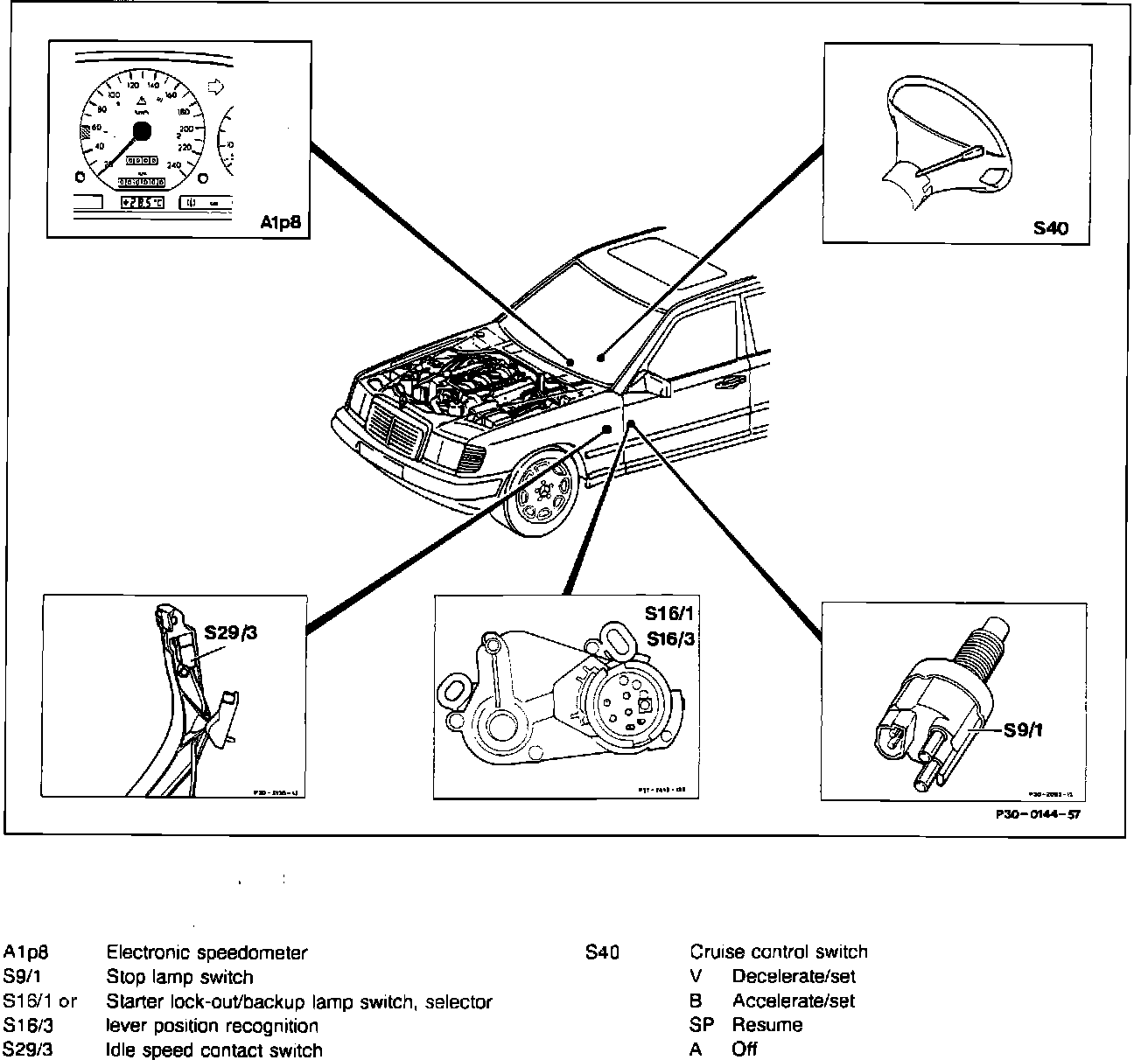

Fig. # 1

Module Box (F23) Location:

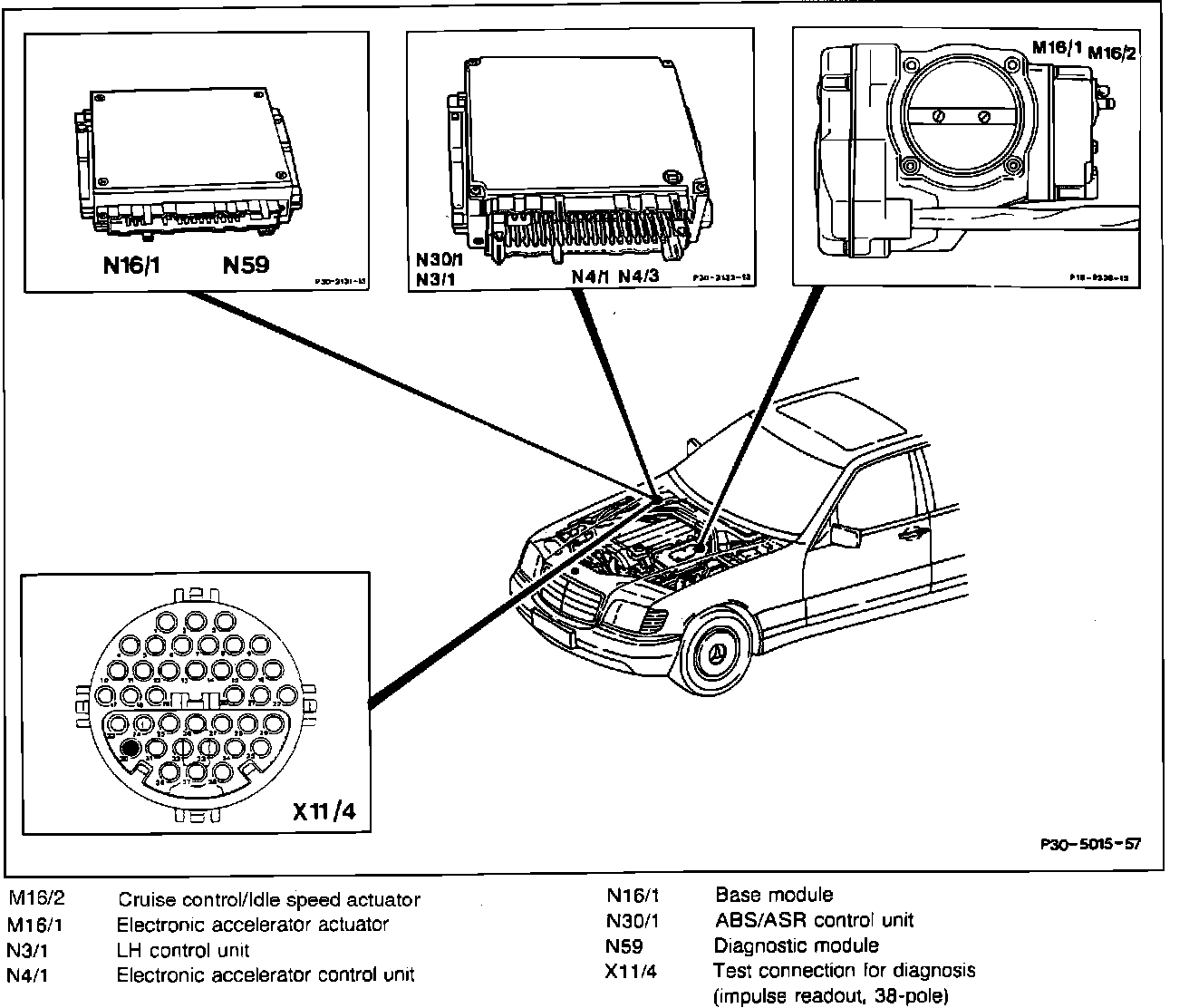

Fig. # 2

Component Locations:

Fig. # 3

COMPONENTS:

Base module N16/1, see Fig. # 1.

Diagnostic connector X11/4, see Fig. # 2.

Diagnostic module N59, see Fig. # 1.

Electronic accelerator actuator M16/1, see Fig. # 1.

Electronic accelerator control module N4/1, see Fig. # 1.

Push-button and LED X11/21s1, see Fig. # 2.

Starter lock-out/backup lamp switch S16/3, see Fig. # 3.
