Purpose and Location

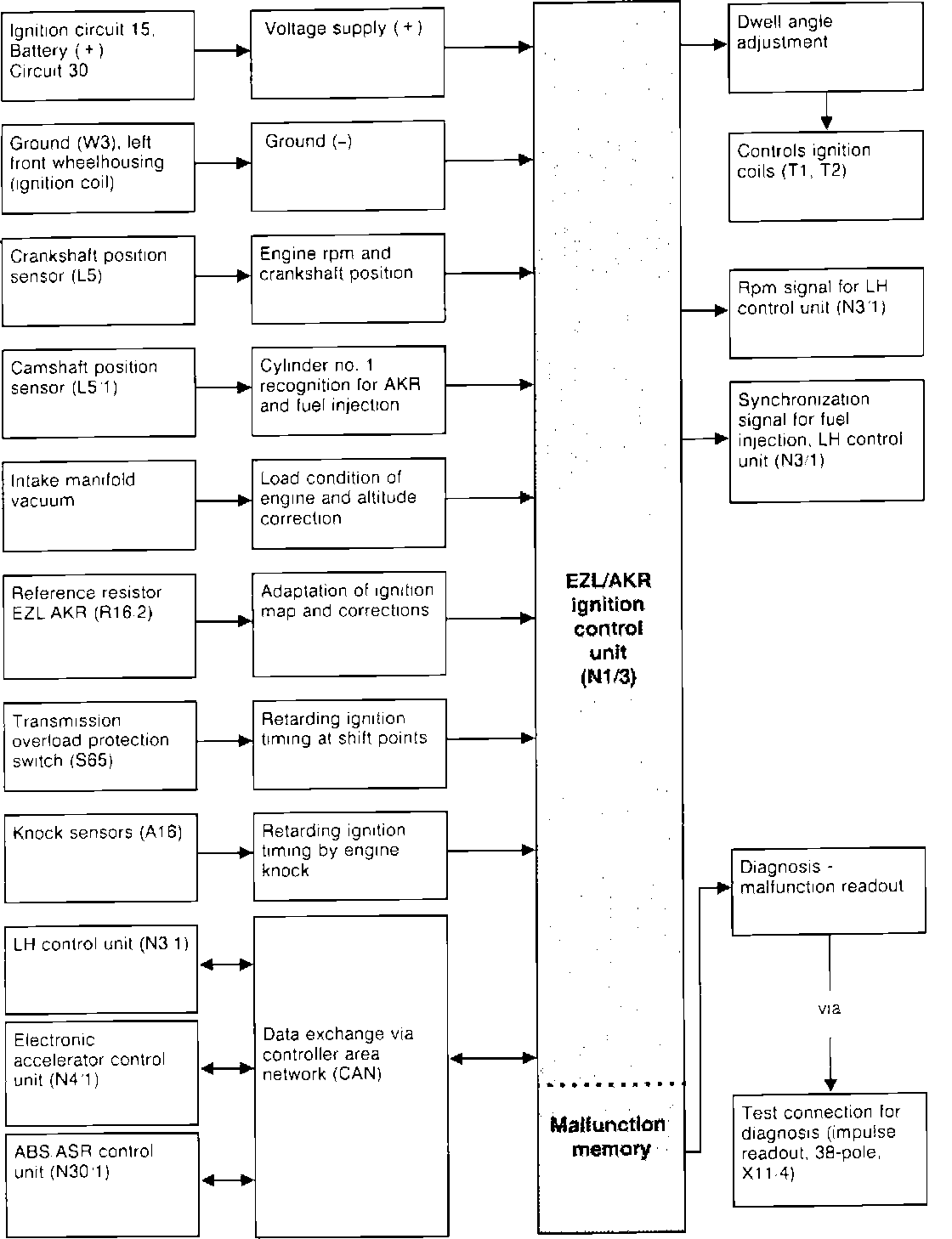

EZL/AKR Ignition System:





PURPOSE
The EZL/AKR ignition control module (N1/3) contains a microcomputer, pressure sensor and the power output stage for control of the two ignition coils (one per cylinder bank).

Component Locations:





LOCATION
It is fitted to the driver side wheelhouse and is installed with a heat conducting paste.
