Distributor Shaft: Service and Repair

- Remove and install intake air hose.
- Model 124: remove and install air scoops.

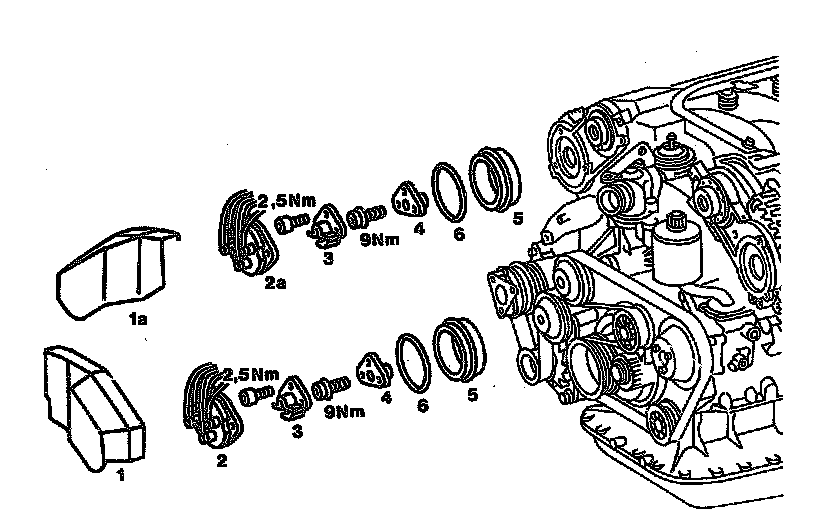

- Unclip and take off shielding caps (1) and (1a) at the side.
- Unbolt high voltage distributors (2) and (2a).
- Unbolt distributor rotor (3). Tighten to 2.5 Nm on reassembly.
- Unbolt driver (4). Tighten to 9 Nm on reassembly

Installation Note: The slot of the driver (4) must engage in the locating pin in the camshaft.

- Take off protective cover (5) together with seal (6).
- Installation is reverse of removal procedure. Observe installation note and tightening torques.
