Intake Manifold Torque & Sequence

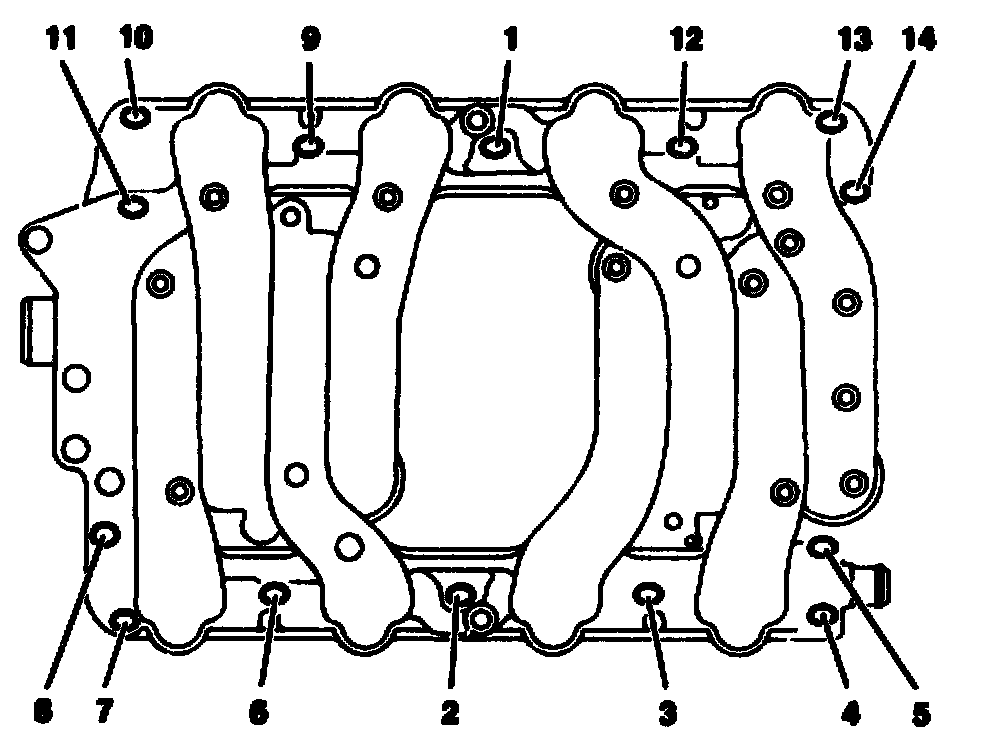

Tightening diagram for attaching intake manifold Use the above illustration when tightening
intake manifold to engine.
Bolts of
intake manifold to cylinder head
28 Nm Bolts of top part of intake manifold to bottom part
25 Nm
