Water Pump Torque







Tightening Specifications
- Coolant Pump To Crankcase: 21 Nm

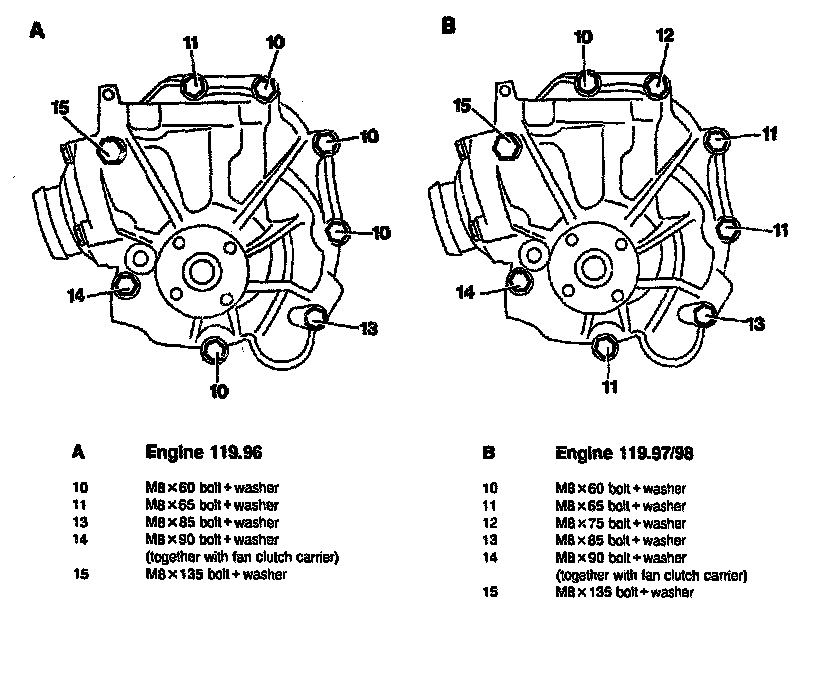

Pay attention to different bolt lengths, see bolt diagram illustration above.
- Cover At Top Of Coolant Pump: 21 Nm
