Component Locations

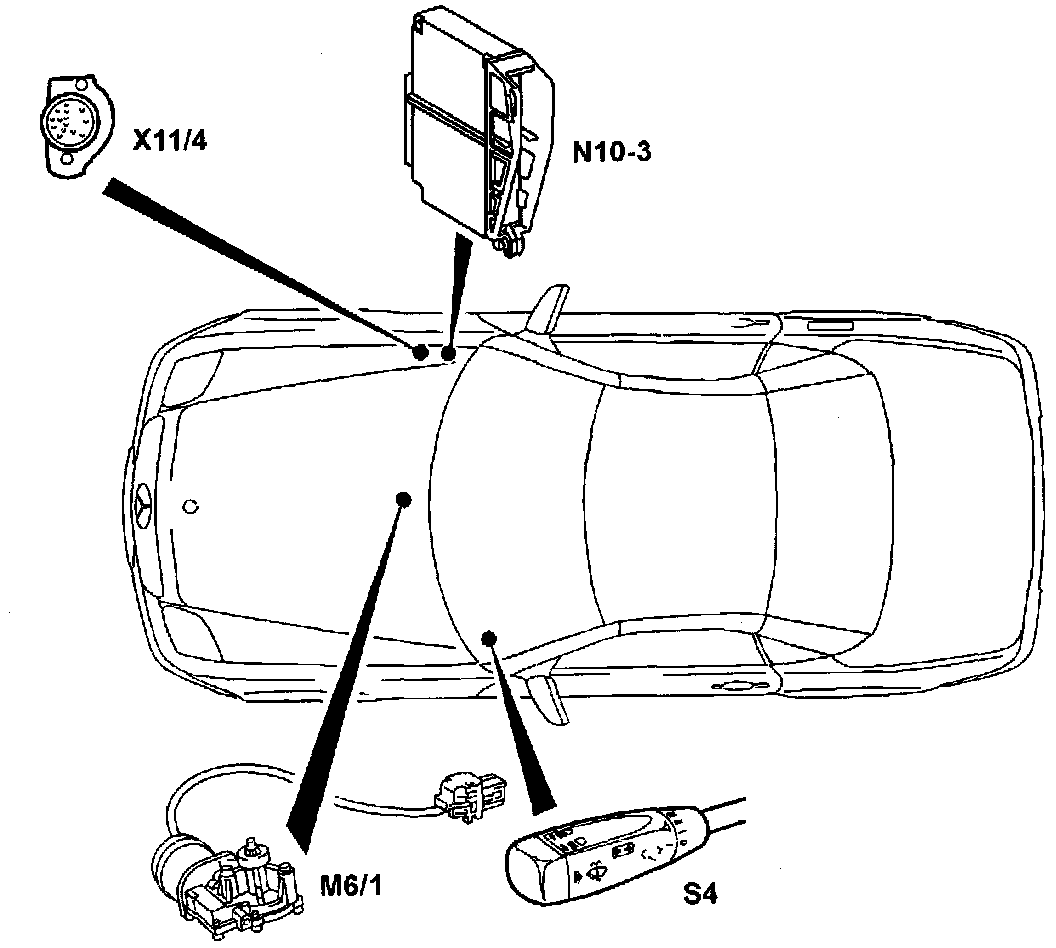

Wiper System




M6/1 Wiper motor
N10-3 Combination control module
S4 Combination switch
X11/4 Data link connector (DTC readout)

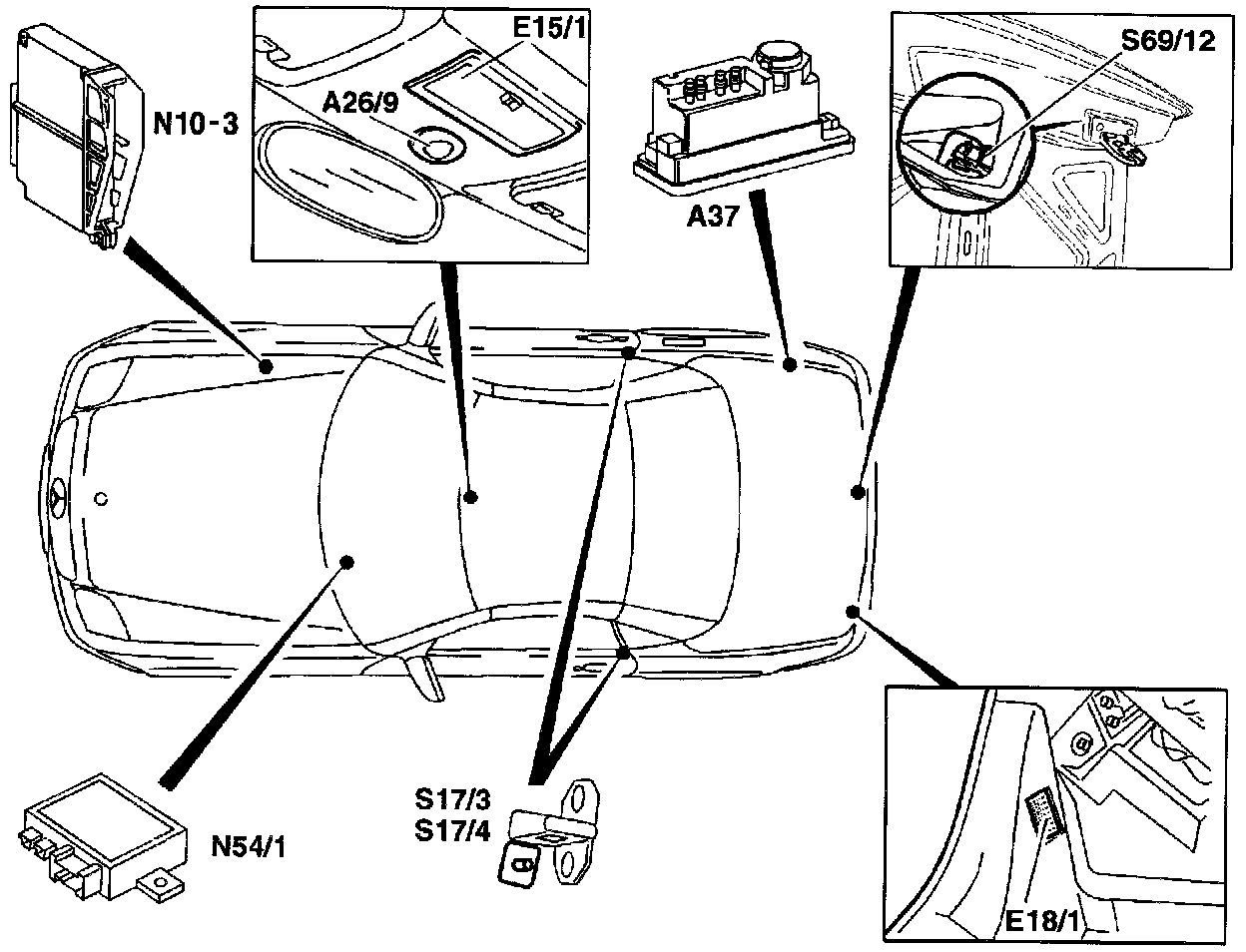

Interior Lighting




A26/9 RCL receiver (roof frame)
A37 PSE control module
E15/1 Front dome lamp (with switch)
E18/1 Trunk lamp
N10-3 Combination control module
N54/1 IR DAS control module
S17/3 Left front door switch
S17/4 Right front door switch
S69/12 Rotary latch selector switch, trunk lock/trunk illumination

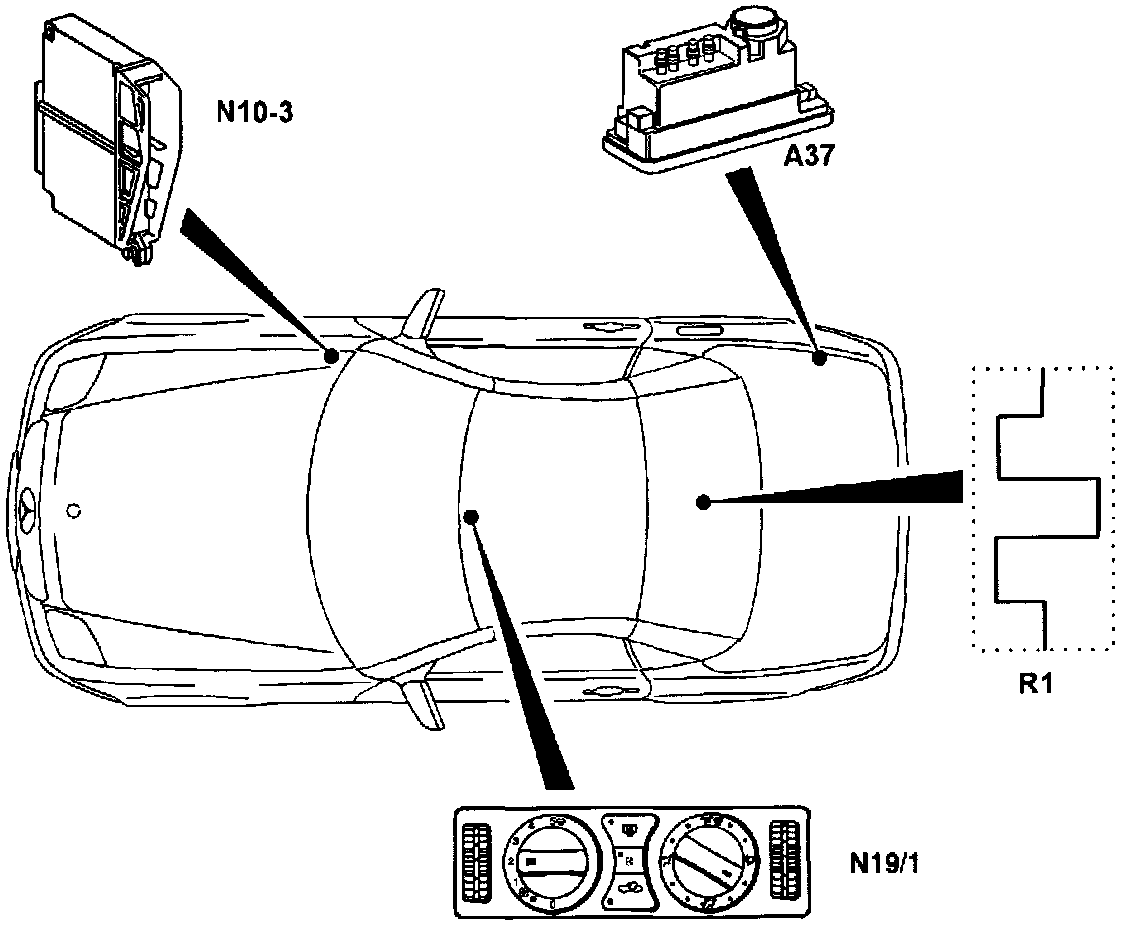

Heated Rear Window




A37 PSE control module
N10-3 Combination control module
N19/1 A/C pushbutton control module (Tempmatic)
R1 Rear window defroster element

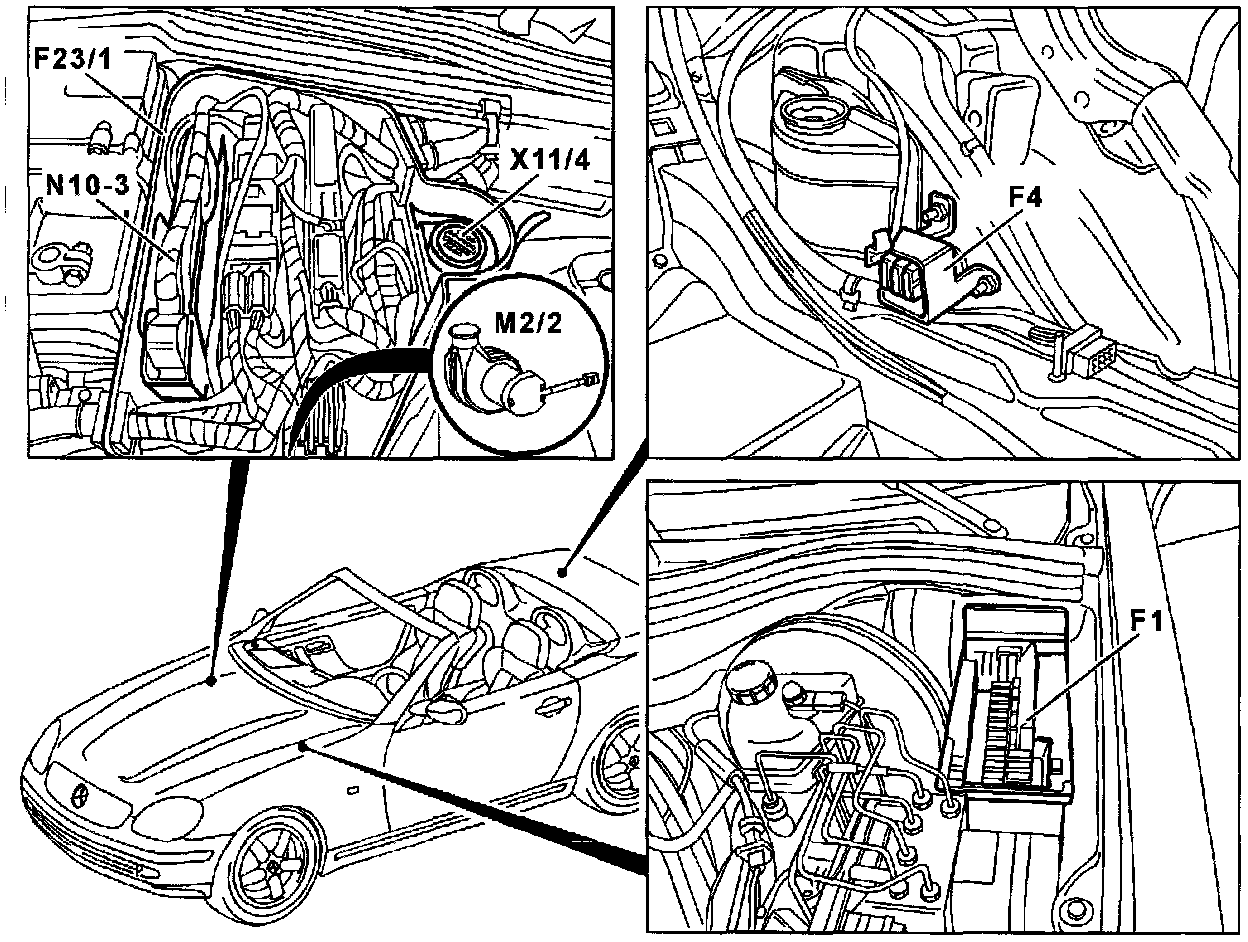

F1 Fuse and relay box
F4 Fuse box in trunk
F23/1 Control module box
M2/2 Module box blower motor
N10-3 Combination Control module
X11/4 Data link Connector (DTC readout)
