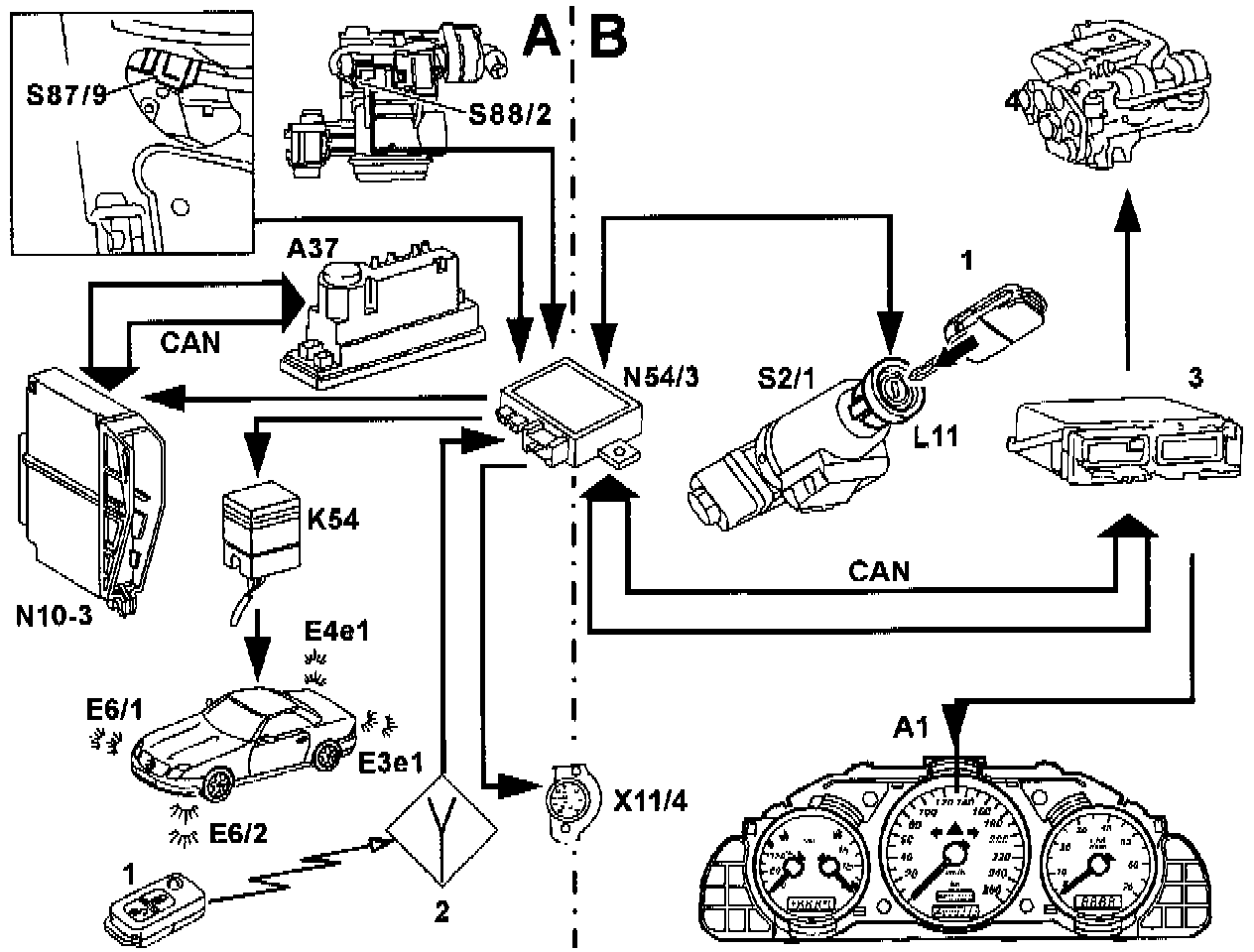

Connection of Components









A Radio/Infrared remote control for central locking
B Drive authorization stage (DAS) (release of motor management via transponder)
A1 Instrument cluster
A37 PSE control module, combined functions
CAN Control-Area-Network
E3e1 Turn signal lamp
E4e1 Turn signal lamp
E6/1 Left turn signal/side marker lamp (USA)
E6/2 Right turn signal/side marker lamp (USA)
L11 Transponder coil
K54 Locking confirmation relay module
N10-3 combination control module
N54/3 Radio frequency/infrared control module
S2/1 Ignition/starter switch
S87/9 Left front door lock switch (CF) (USA)
S88/2 Trunk lid lock switch (CF) (USA)
X11/4 Data link connector (DTC readout)
1 Transmitter key with transponder
2 Antenna
3 Engine control module
4 Engine
