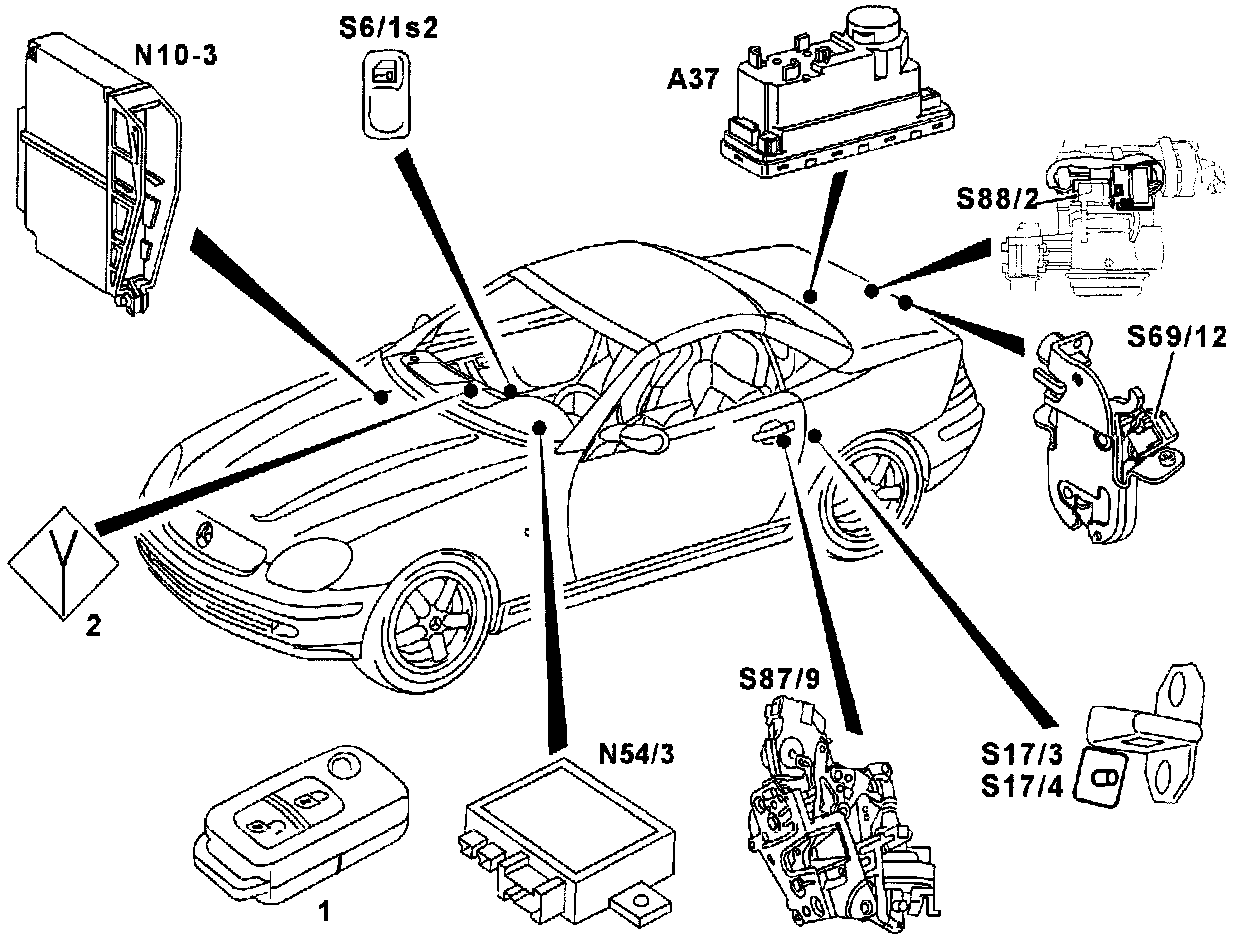

Component Locations - Section 20

A37 PSE control module, combined functions
N54/3 Radio frequency DAS control module
N10-3 Combination control module
S6/1s2 Interior switch (CL)
S17/3 Left front door switch
S17/4 Right front door switch
S69/12 Rotary latch selector switch, trunk lock/trunk illumination
S87/9 Left front door lock switch (CF) (only (USA) (J))
S88/2 Trunk lid lock switch (CF) (only (USA) (J))
1 Transmitter key
2 Antenna
