Check Charging Current of Generator

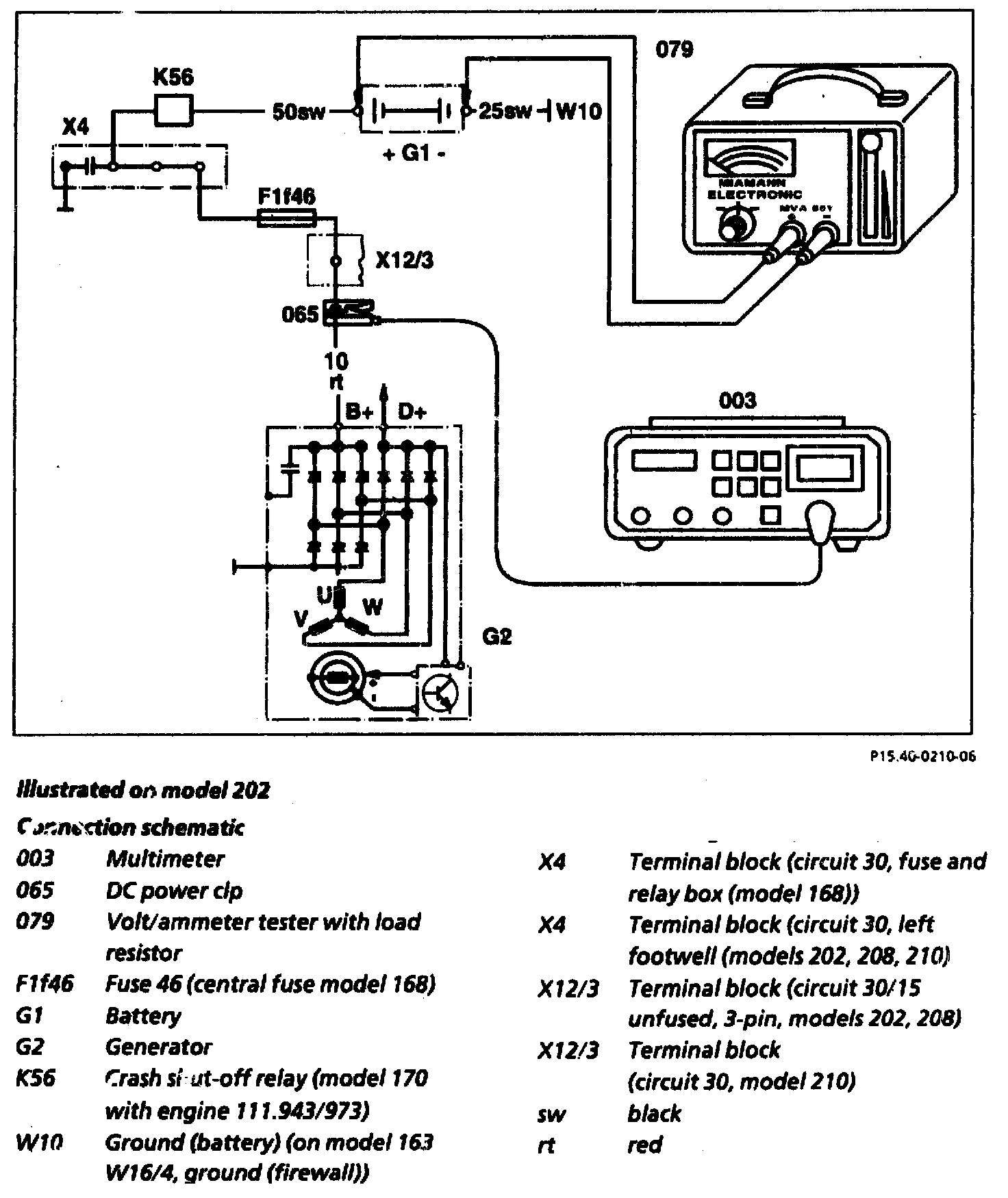

Connection Schematic:






NOTE: Model 163: Connection from generator (G2/B+) to battery (G1/+), other wire color (25rd).

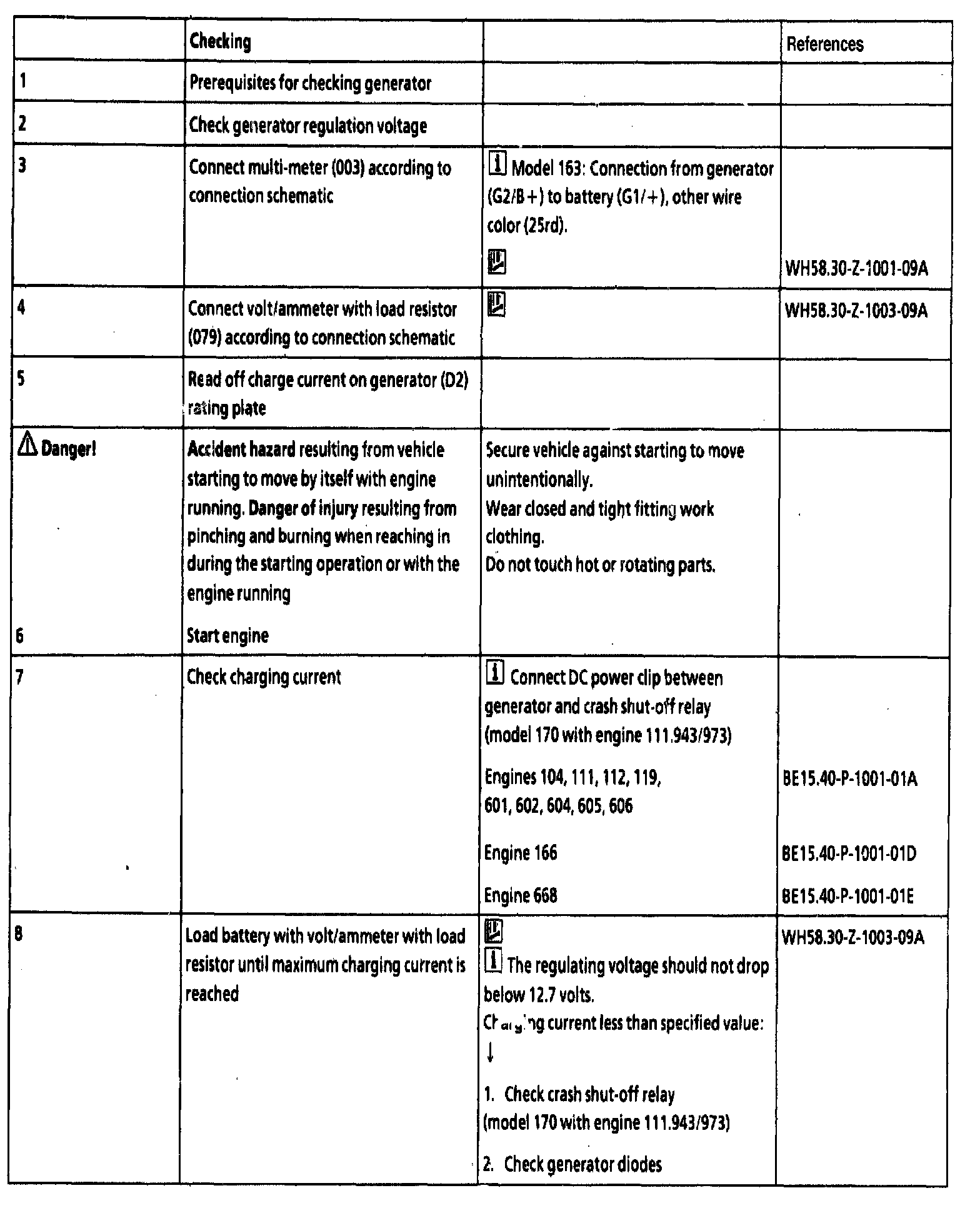

Checking, Steps 1 - 8:

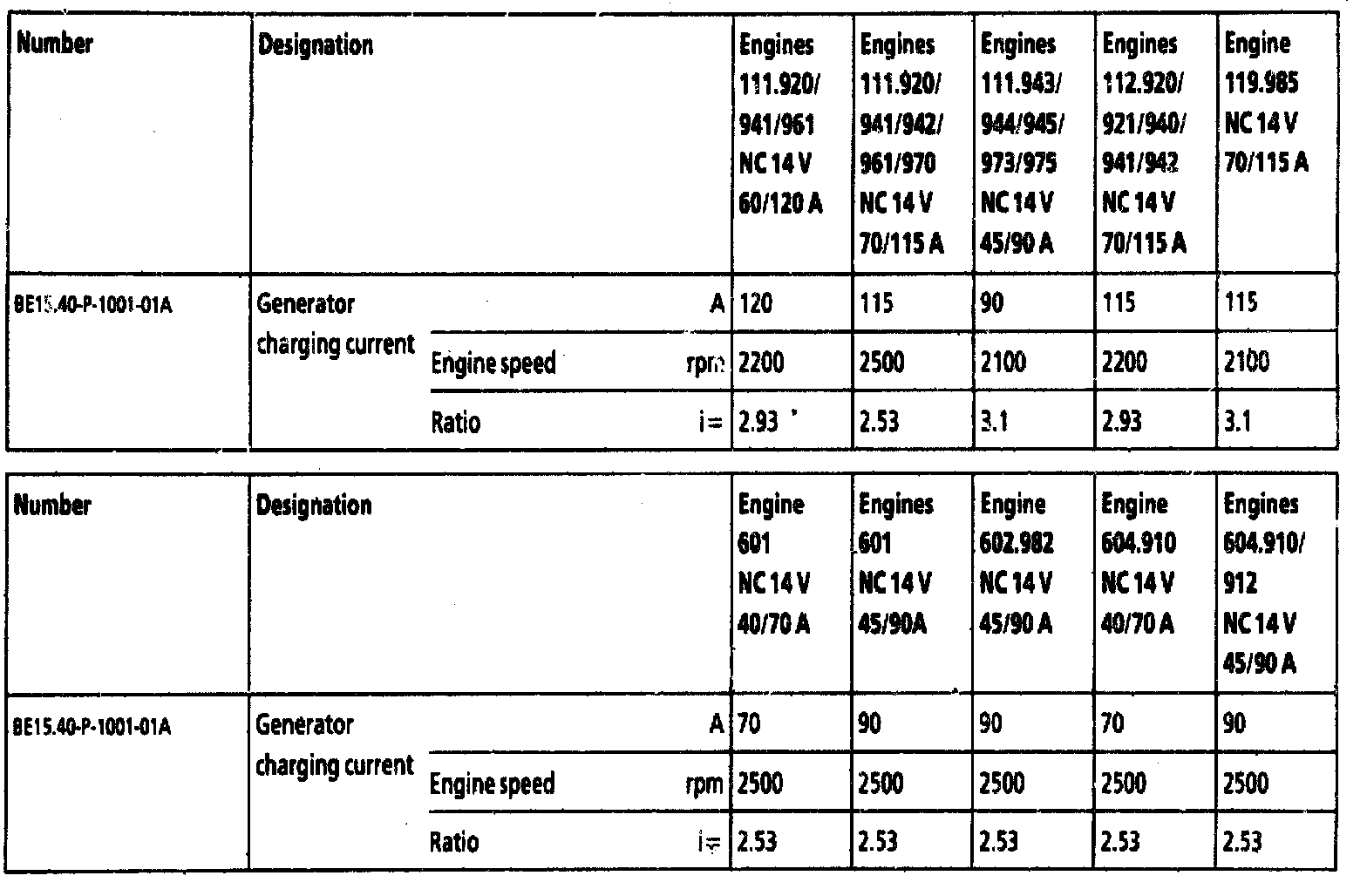

References (BE):






References (BE):






References (WH), Commercially Available Tools:
