Cruise Control: Diagrams

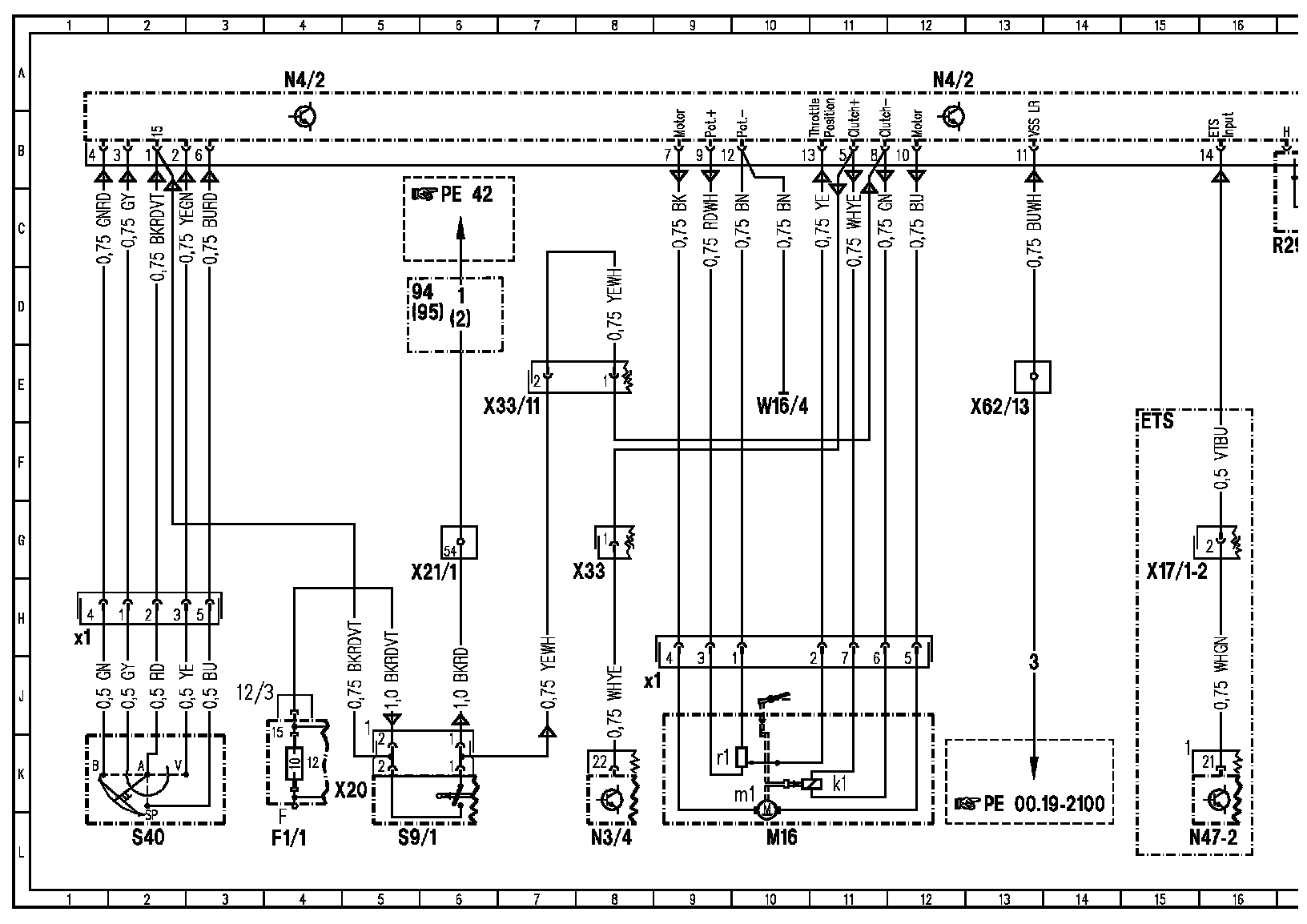

Cruise Control PE30.30-U-2000WAWiring Diagram, Part 1:
Wiring Diagram, Part 2:

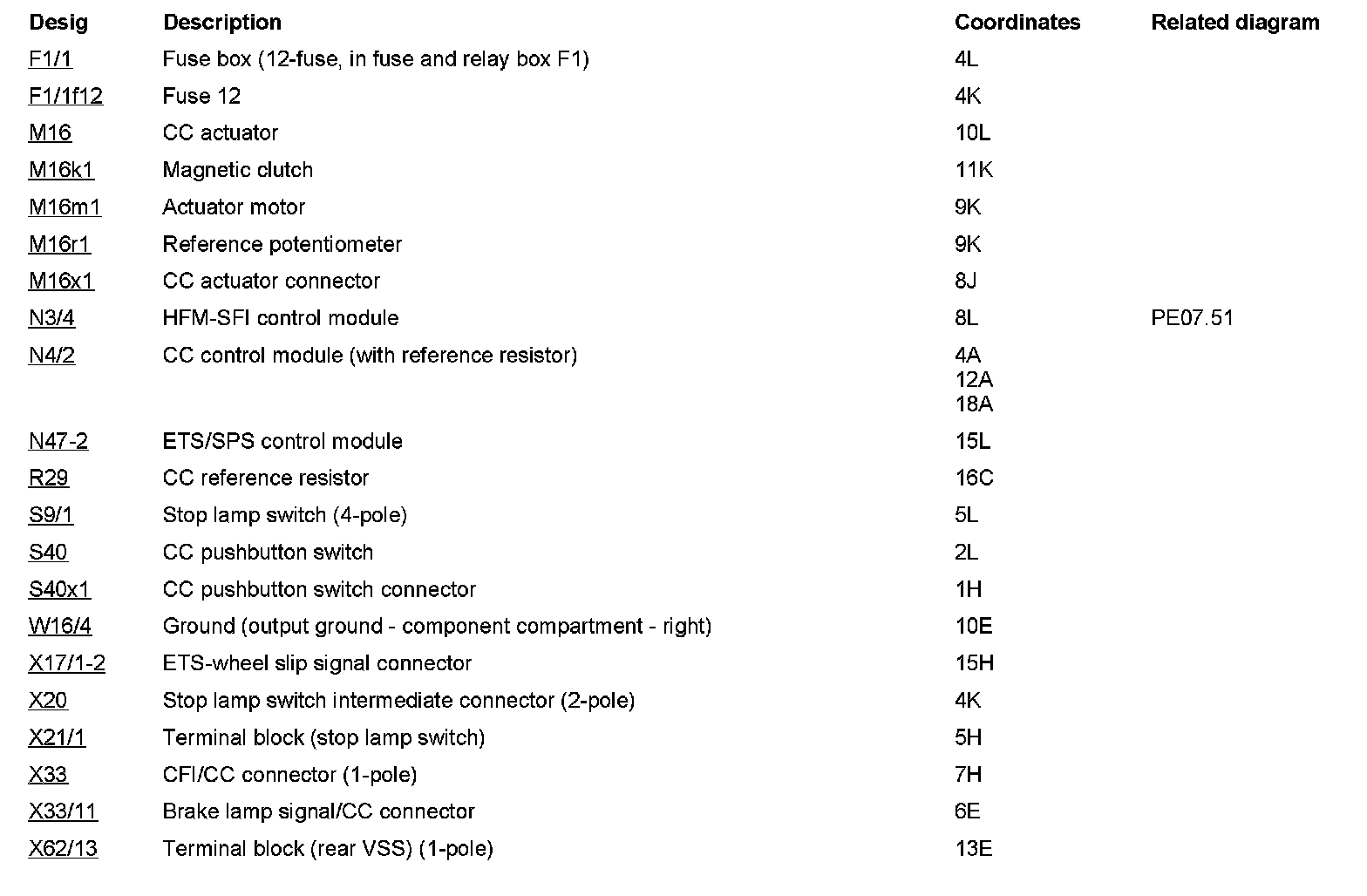

Component Description/Coordinates, F1/1 To X62/13:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
