Component Locations

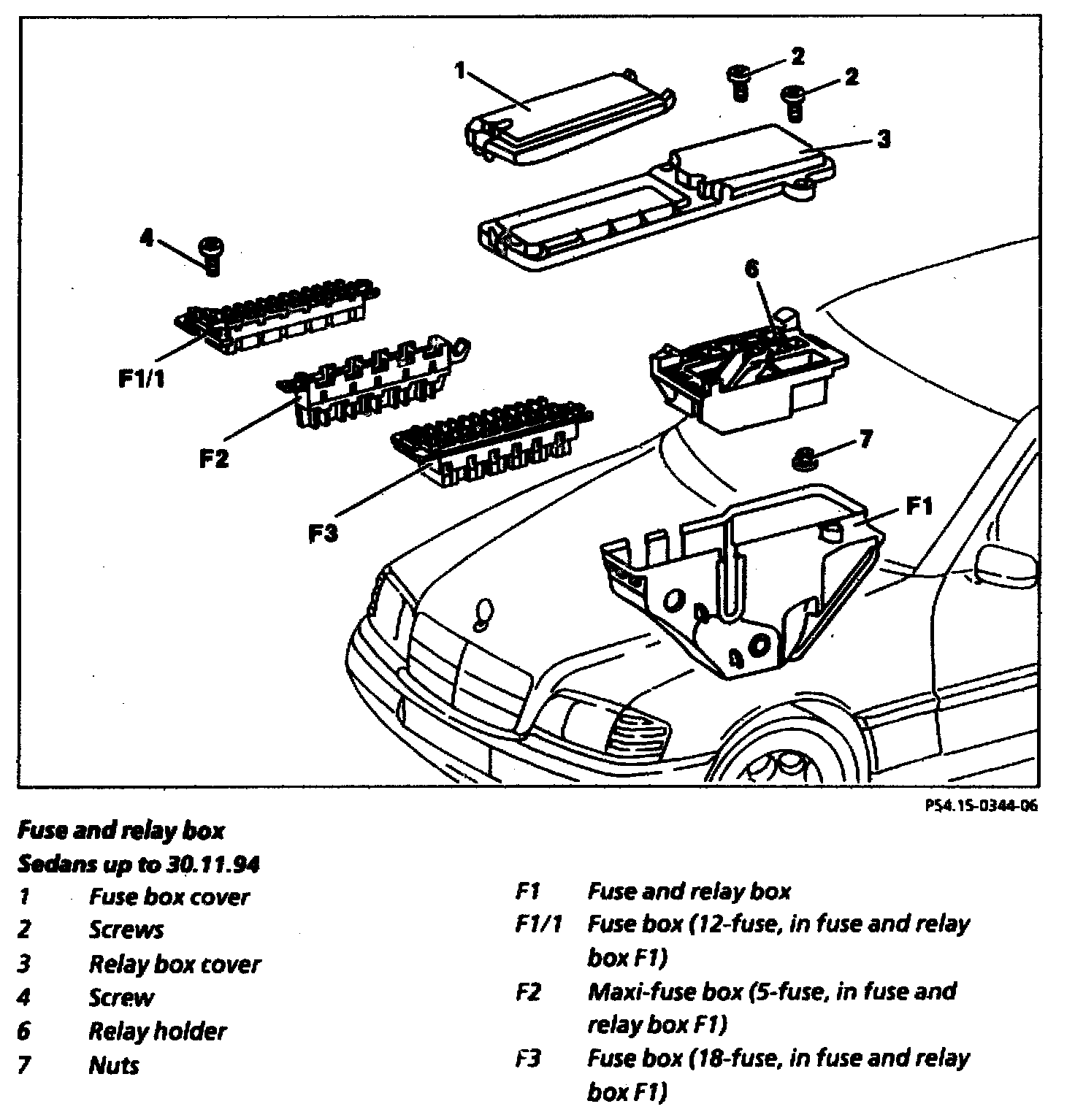

F1 - Fuse and Relay Box (In Engine Compartment) Model 202: Up to 11/30/94
Fuse And Relay Box:

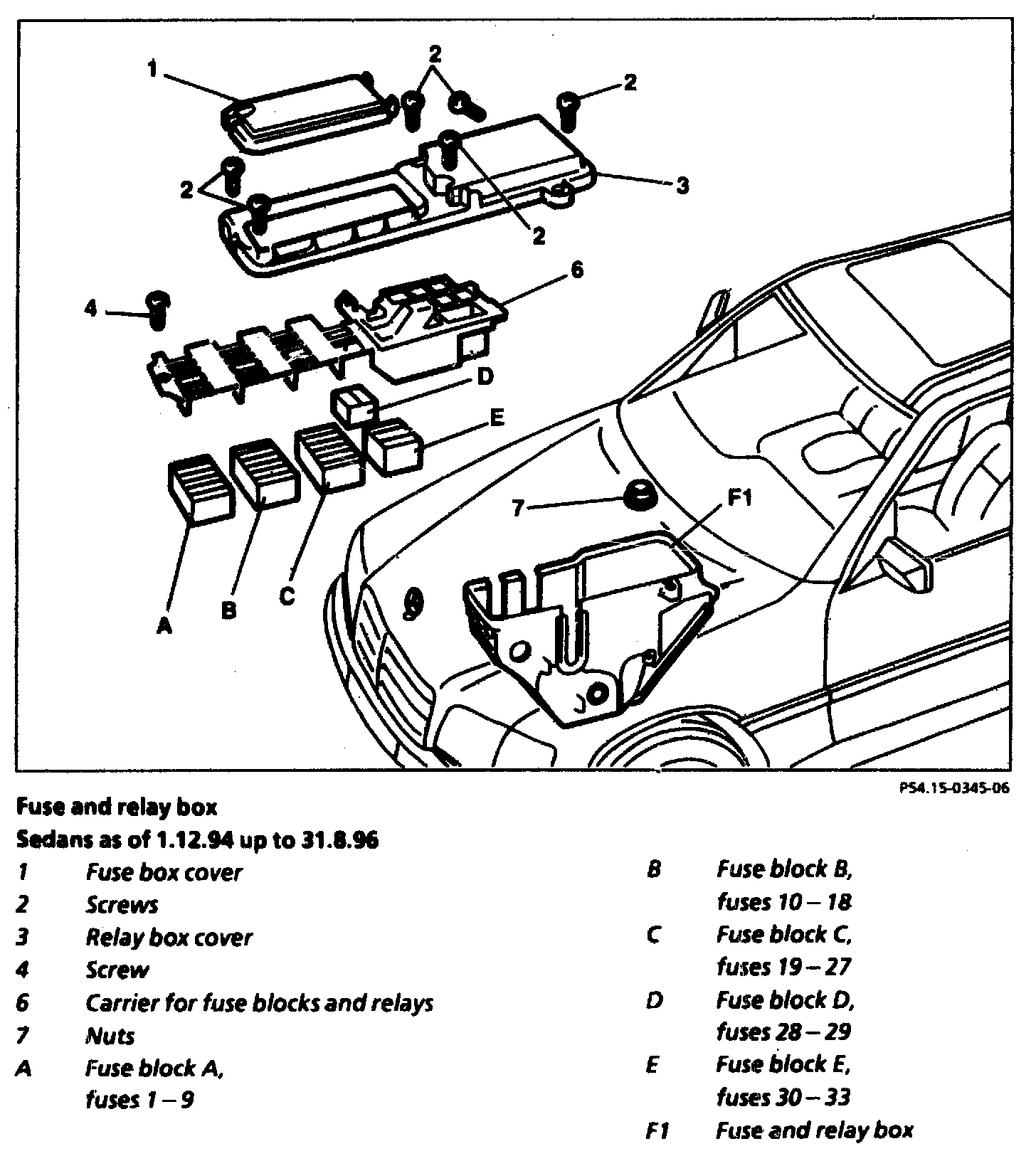

Model 202: As of 12/1/94 up to 8/31/96
Fuse And Relay Box:

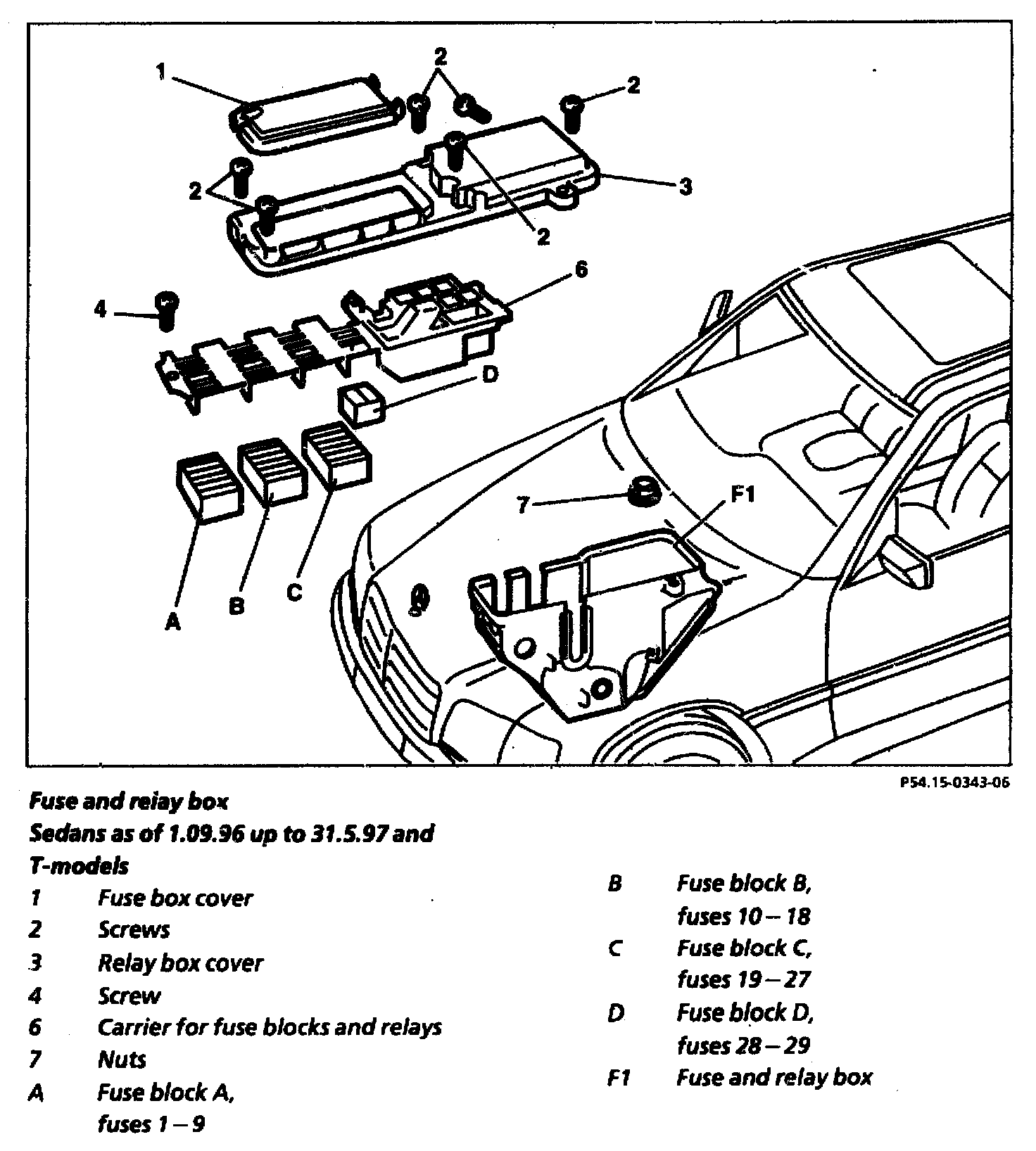

Model 202: As of 9/1/96 up to 5/31/97
Fuse And Relay Box:
Model 202: As of MY 1998
Illustrated On Model 208:
F4 - Fuse Box (In Trunk)Illustrated On Model 202:
