System Specifications

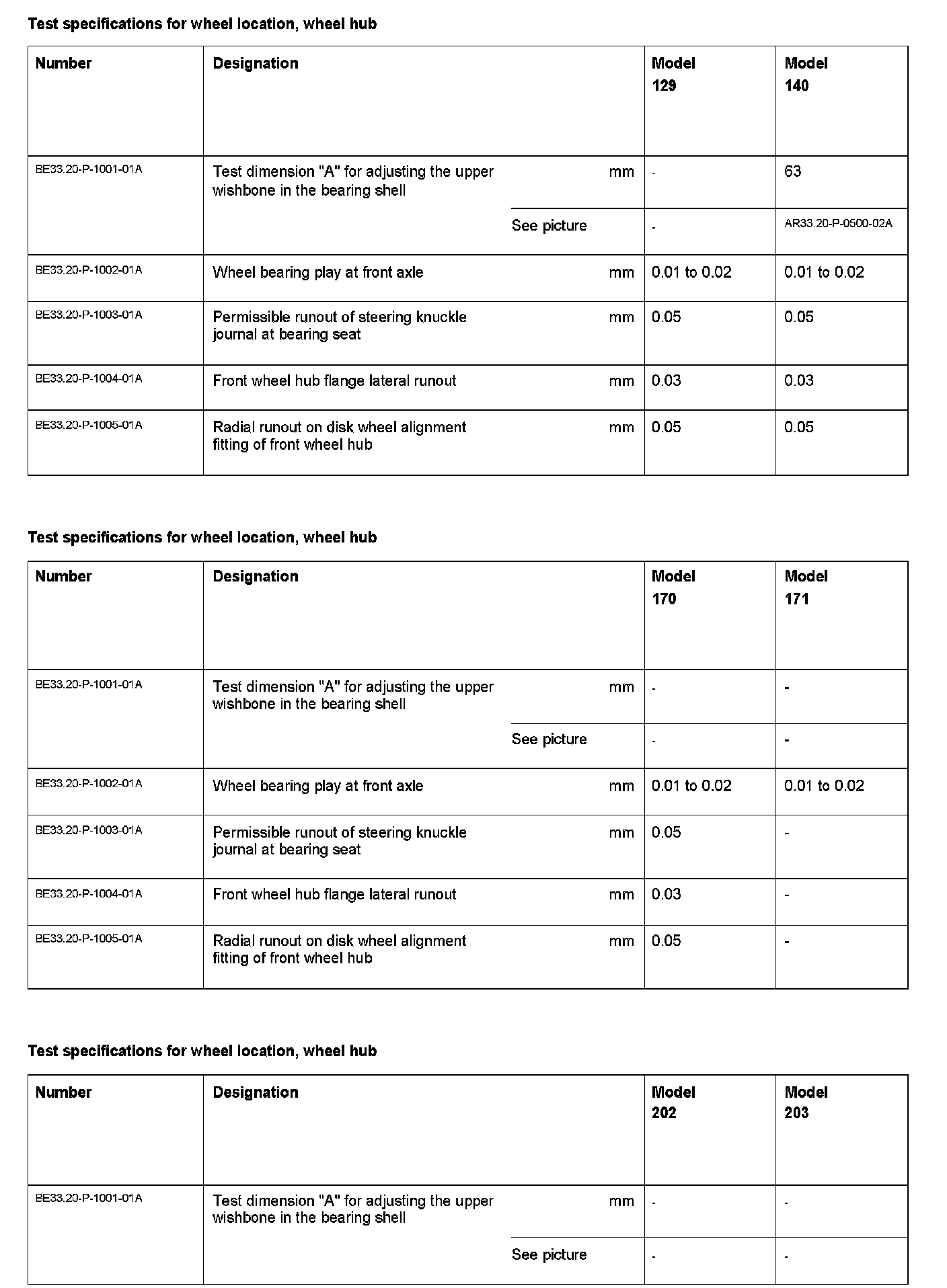

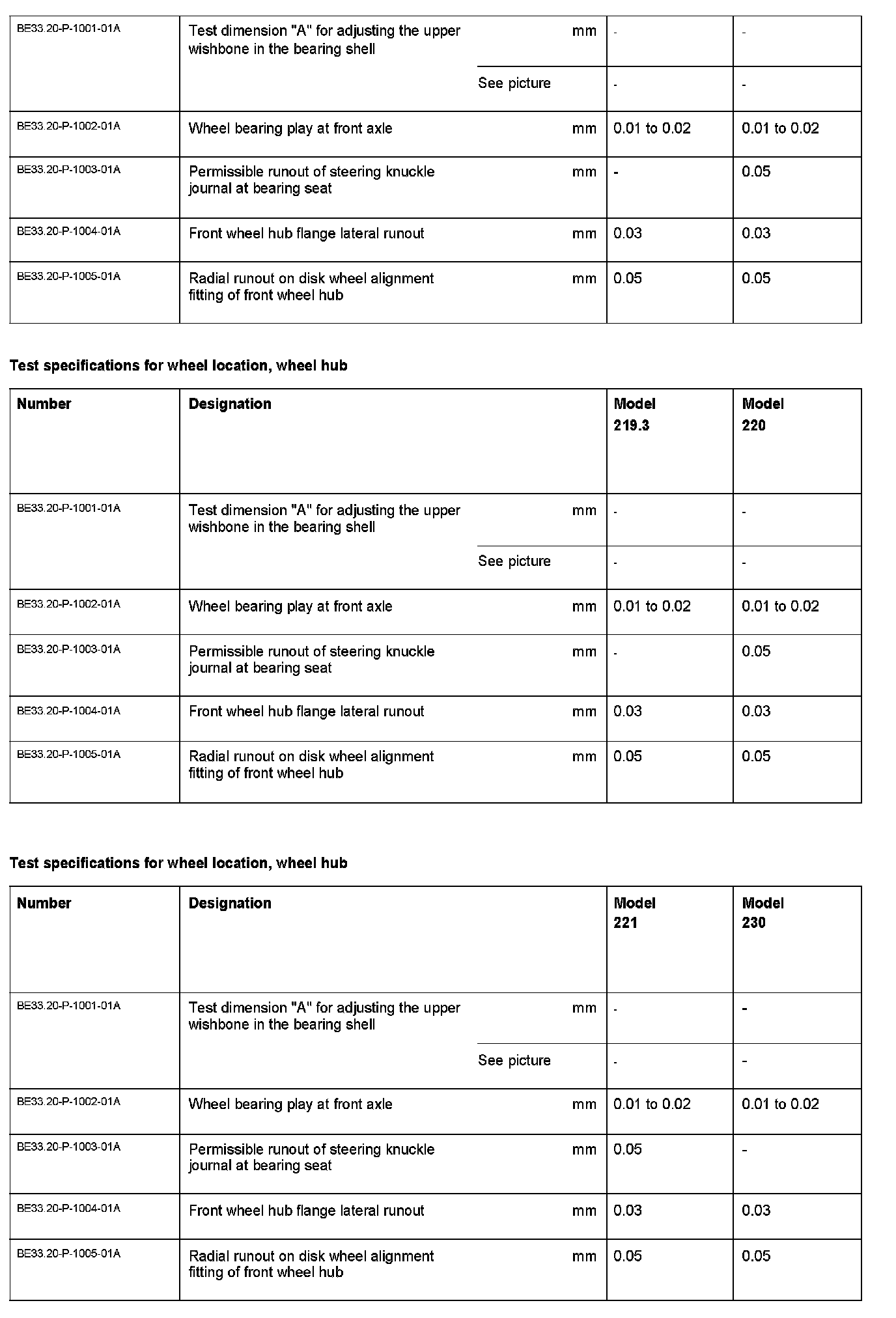

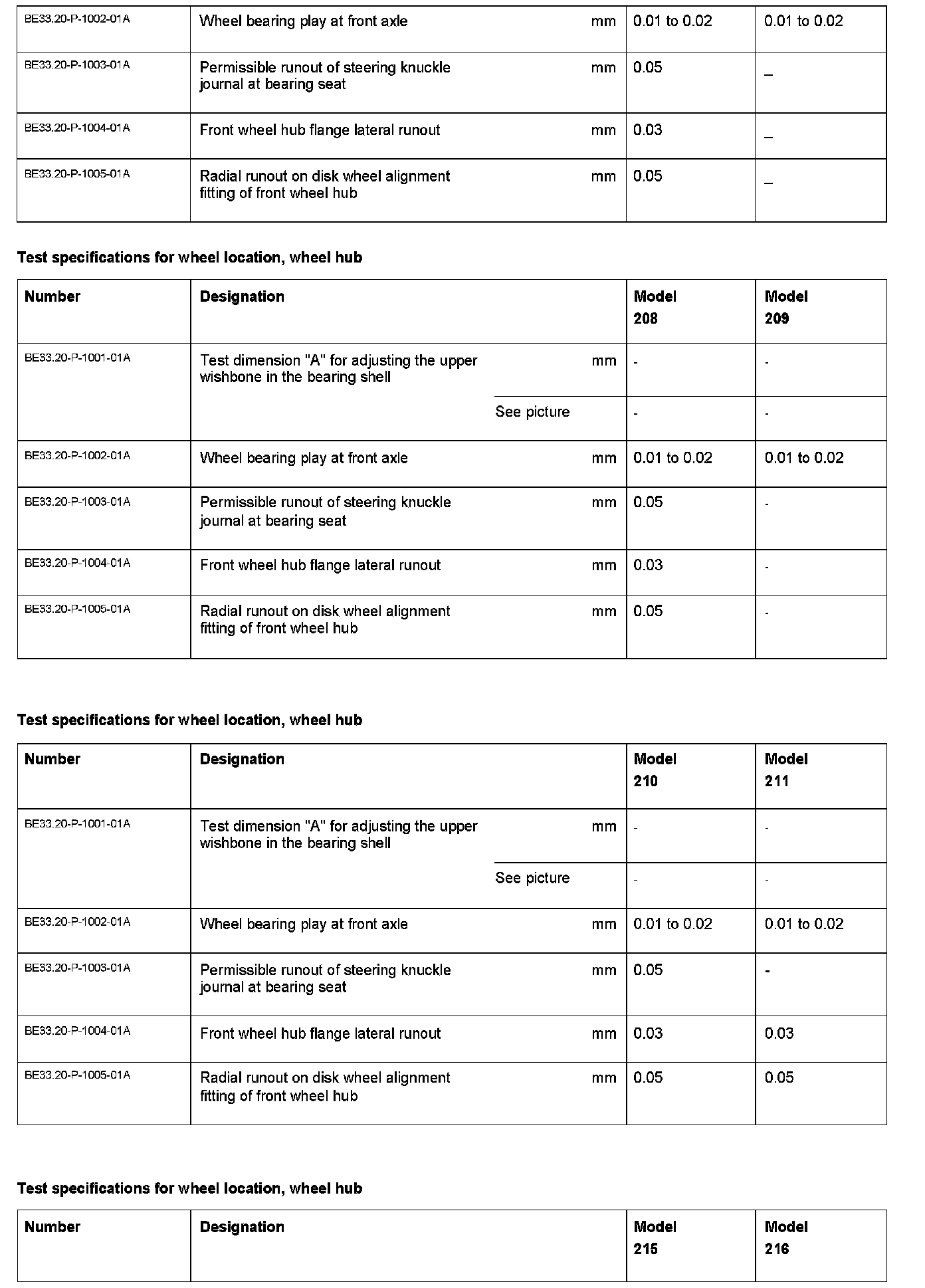

BE33.20-P-1000-01A Test Specifications For Wheel Location, Wheel Hub
Model 129, 140, 170, 171, 202, 203, 208, hub 209, 210, 211, 215, 216, 219, 220, 221, 230
