AR80.35-P-0001T Remove/Install Keyless GO Control Module

AR80.35-P-0001T Remove/Install Keyless GO Control Module
- with CODE (889) Keyless Go
- Rear keyless go door control unit

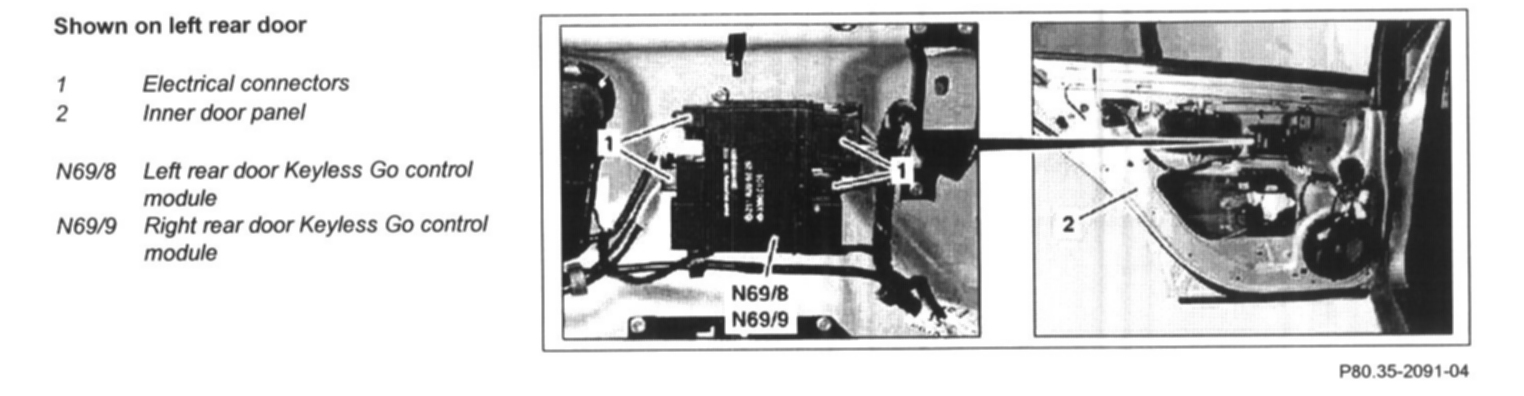

Shown On Left Rear Door:

1 Remove door foil from rear door

NOTE: Remove door foil until the left rear door Keyless Go control module (N69/8) or the right rear door Keyless Go control module is accessible (N69/9).

2 Disconnect electrical connectors (1).
3 Release catch lugs on left rear door Keyless Go control module (N69/8) or right rear door Keyless Go control module (N69/9) with long wedge and remove left rear door Keyless Go control module (N69/8) or right rear door Keyless Go control module (N69/9) from inner door panel (2)

See "Special Tools" given below.

4 Install in the reverse order

Special Tools

Long Wedge, P/N # 115 589 03 00:
